TAILLIGHT (KM100-A6/A7)

KM100-A3 1978 USA CANADA / MPH KPH

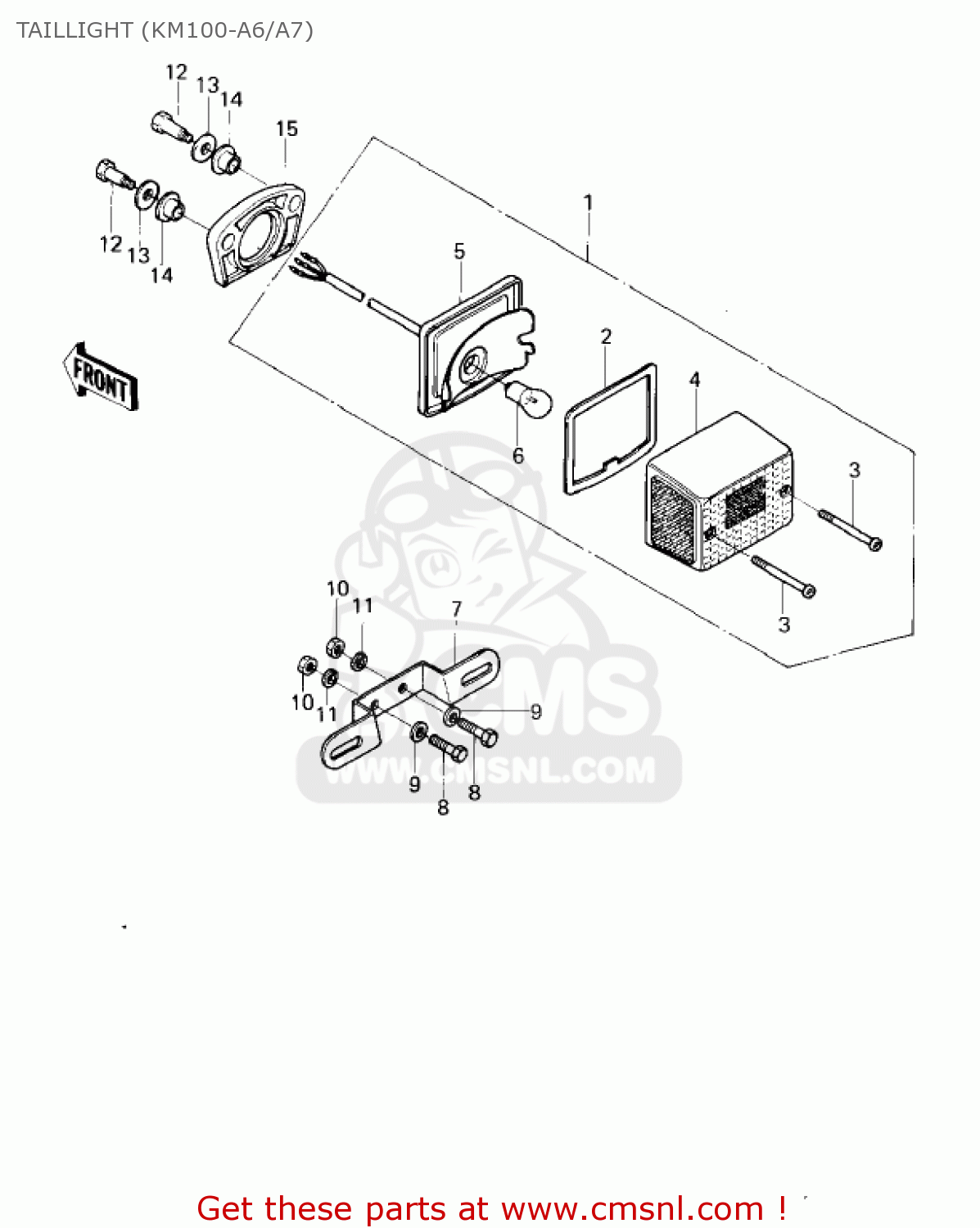

Taillight (km100-a6/a7) diagram KM100-A3 1978 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

230251034
ref: 1

TAIL LAMP

€ 71.00

230251034
ref: 1
KM100-A7~

TAIL LAMP

€ 71.00

110091078
ref: 2

GASKET,TAIL LAMP LENS (NAS)

€ 4.50

220E0440A
ref: 3

SCREW,PAN HEAD,4X40

€ 2.00

230261003
ref: 4

LENS,TAIL LAMP

€ 50.50

230271021
ref: 5

TAIL LAMP BODY,COMPLETE

€ 46.50

230271021
ref: 5
USE FOR 23025-1034

TAIL LAMP BODY,COMPLETE

€ 46.50

92069074
ref: 6

BULB,6V-32X3CP

€ 4.50

110341626
ref: 7

BRACKET,LICENSE

€ 9.50

112G0612
ref: 8

BOLT-UPSET

€ 2.50

411B0600
ref: 9

WASHER-PLAIN,6MM

€ 0.50

311B0600
ref: 10

NUT,6MM

€ 0.50

461F0600
ref: 11

WASHER-SPRING,6MM

€ 0.50

920011118
ref: 12

BOLT,HEX HEAD

€ 4.50

920221561
ref: 13

WASHER,8.5X20X1.6

€ 2.50

920751095
ref: 14

DAMPER

€ 2.00

920751094
ref: 15

DAMPER,TAIL LAMP

€ 10.00
