TAILLIGHT (KM100-A1-A4)

KM100-A3 1978 USA CANADA / MPH KPH

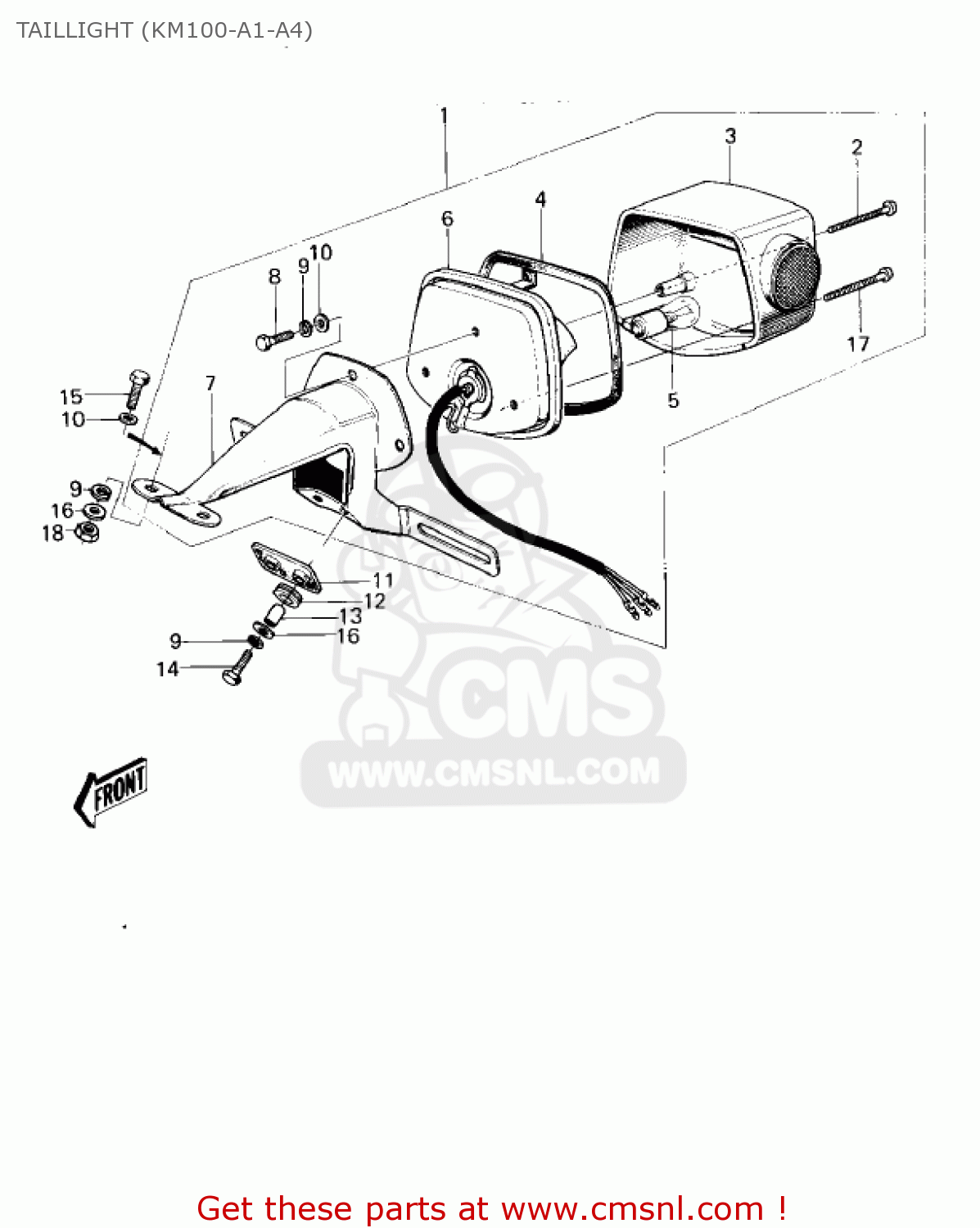

Taillight (km100-a1-a4) diagram KM100-A3 1978 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

2302406010
ref: 1

TAIL LAMP ASSEMBLY,BLACK

€ 287.00

220R0455
ref: 2

SCREW-PAN-CROS

€ 3.50

23026028
ref: 3

LENS,TAIL LAMP,W/REFL

€ 48.50

23028019
ref: 4

GASKET,TAIL LAMP LENS (NAS)

€ 5.50

92069074
ref: 5

BULB,6V-32X3CP

€ 4.50

23027037
ref: 6

TAIL LAMP CASE

€ 166.00

2303603410
ref: 7

LICENSE PLATE BRACKET,BLACK

€ 195.50

112B0614
ref: 8

BOLT-UPSET 6X14

€ 2.50

461F0600
ref: 9

WASHER-SPRING,6MM

€ 0.50

411B0600
ref: 10

WASHER-PLAIN,6MM

€ 0.50

35039008
ref: 11

DAMPER RUBBER,TL LAMP

€ 4.00

92075121
ref: 12

DAMPER,FENDER

€ 2.50

92027162
ref: 13

COLLAR-REAR FENDER

€ 4.50

112G0625
ref: 14

BOLT-UPSET,6X25

€ 4.00

112G0630
ref: 15

BOLT-UPSET

€ 1.00

92022125
ref: 16

WASHER,6.5X20X1.6

€ 1.00

220E0450
ref: 17

SCREW-PAN HEAD,4X50

€ 3.00

311B0600
ref: 18

NUT,6MM

€ 0.50
