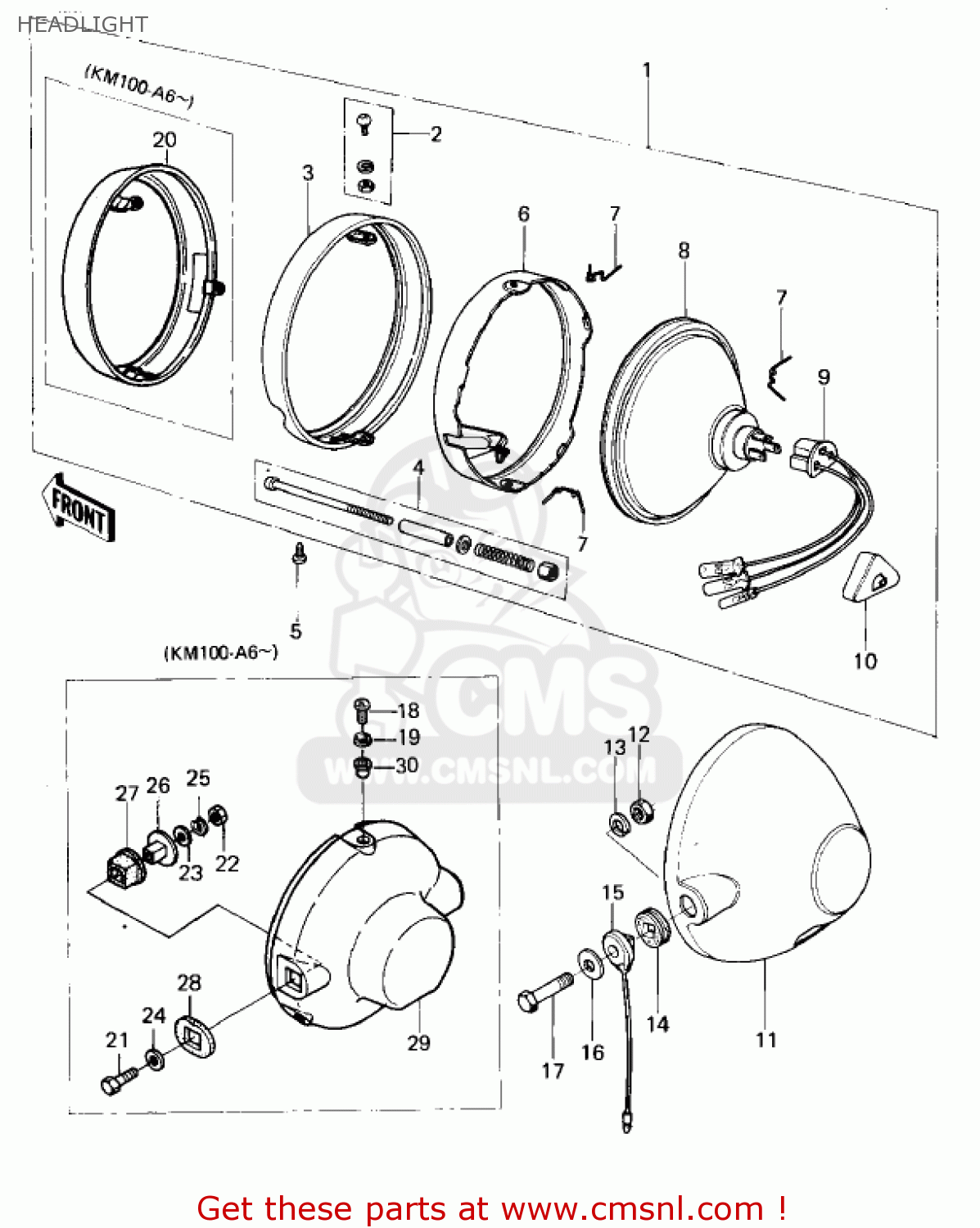

HEADLIGHT

ref

part #

description

quantity

1

23003024
ref: 1
KM100-A1/A2/A3/A3A/A

LAMP UNIT,HEAD

€ 90.50

1

230041030
ref: 1
KM100-A6~

LAMP-HEAD

€ 221.50

2

23013007
ref: 2

SCREW ASY,LENS UNIT

€ 3.50

3

23006042
ref: 3
USE FOR 23003-024

RIM,HEAD LAMP

€ 43.00

4

230135001
ref: 4

SCREW ASSY,FOCUS AJST

€ 10.50

5

23019025
ref: 5
KM100-A1/A2/A3/A3A/A

SCREW,PAN HEAD,5X14

€ 1.50

6

23072002
ref: 6

RETAINER,SEALED BEAM

€ 29.50

7

23009015
ref: 7

SPRING,HEAD LAMP LENS

€ 3.50

8

23007055
ref: 8

LENS-COMP,4020 MARK

€ 60.00

9

23008044
ref: 9
WHN EXH USE 23008-04

SOCKET-ASSY,HEAD LAMP

€ 15.00

9

23008044
ref: 9

SOCKET-ASSY,HEAD LAMP

€ 15.00

10

23081001
ref: 10

COVER,HD LAMP SOCKET

€ 6.50

11

2300504921
ref: 11
KM100-A1/A2/A3/A3A/A

BODY,HEAD LAMP,BLACK

€ 56.00

12

314B1000
ref: 12
KM100-A1/A2/A3/A3A/A

NUT,10MM

€ 0.50

13

461F1000
ref: 13
KM100-A1/A2/A3/A3A/A

WASHER-SPRING,10MM

€ 0.50

14

23066010
ref: 14
KM100-A1/A2/A3/A3A/A

DAMPER

€ 4.50

15

23076002
ref: 15
KM100-A1/A2/A3/A3A/A

COLLAR

€ 14.50

16

411D1000
ref: 16
KM100-A1/A2/A3/A3A/A

WASHER-PLAIN,10MM

€ 3.00

17

92007041
ref: 17
KM100-A1/A2/A3/A3A/A

BOLT,HEX HEAD,10X30

€ 7.00

18

220B0512
ref: 18
KM100-A6~

SCREW-PAN-CROS

€ 0.50

19

461F0600
ref: 19
KM100-A6~

WASHER-SPRING,6MM

€ 0.50

20

230061004
ref: 20
KM100-A6~

RIM-LAMP

€ 56.00

21

114N0832
ref: 21
KM100-A6~

BOLT-SMALL,8X32

€ 3.00

22

311B0800
ref: 22
KM100-A6~

NUT,8MM

€ 0.50

23

411B0800
ref: 23
KM100-A6~

WASHER-PLAIN,8MM

€ 0.50

24

411D0800
ref: 24
KM100-A6~

WASHER,PLAIN,8MM

€ 2.00

25

461F0800
ref: 25
KM100-A6~

WASHER-SPRING,8MM

€ 0.50

26

920271105
ref: 26
KM100-A6~

COLLAR,L=15.6

€ 4.50

27

920751077
ref: 27
KM100-A6~

DAMPER,HEAD LAMP

€ 3.00

28

920751078
ref: 28
KM100-A6~

DAMPER,HEAD LAMP

€ 3.00

29

2300510076Z
ref: 29
KM100-A6~

BODY-COMP-HEAD LAMP,B

€ 71.50

30

23021010
ref: 30
KM100-A6~

WASHER

€ 2.50
