VALVE(S)
KLX650C4 1996 USA CALIFORNIA CANADA

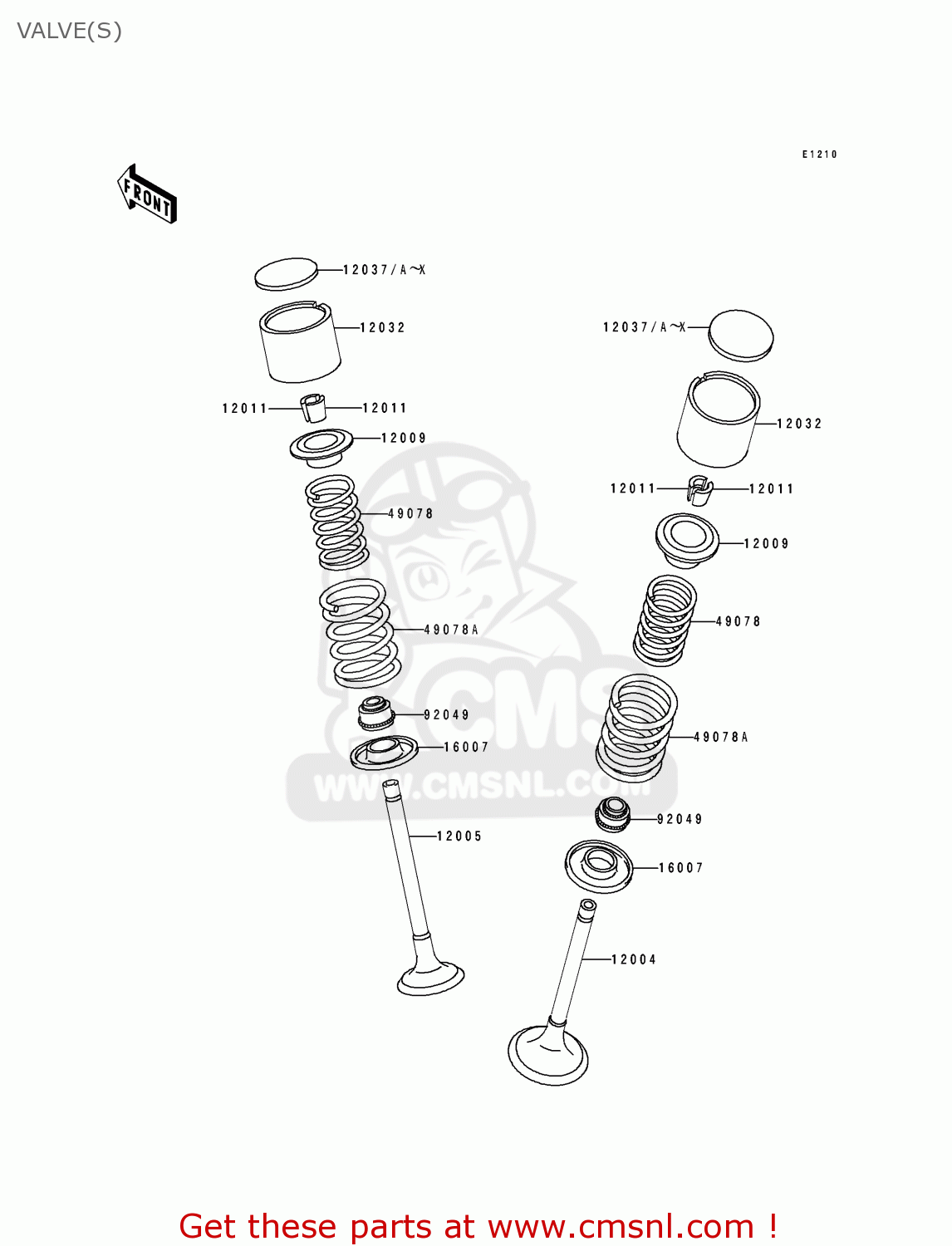

Valve(s) diagram KLX650C4 1996 USA CALIFORNIA CANADA
VALVE(S) KLX650C4 1996 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
12004
120041108
ref: 12004
VALVE-INTAKE
€ 54.00
12005
120051188
ref: 12005
VALVE-EXHAUST
€ 81.50
12009
12009005
ref: 12009
RETAINER-VALVE SPRING
€ 9.00
12011
12011004
ref: 12011
COLLET,RETAINER
€ 3.50
12032
120321002
ref: 12032
TAPPET
€ 52.50
12037
12037001
ref: 12037
SHIM,T=2.00
€ 13.00
12037A
12037002
ref: 12037A
SHIM,T=2.05
€ 13.00
12037B
12037003
ref: 12037B
SHIM,T=2.10
€ 13.00
12037C
12037004
ref: 12037C
SHIM,T=2.15
€ 13.00
12037D
12037005
ref: 12037D
SHIM,T=2.20
€ 13.00
12037E
12037006
ref: 12037E
SHIM,T=2.25
€ 13.00
12037F
12037007
ref: 12037F
SHIM,T=2.30
€ 13.00
12037G
12037008
ref: 12037G
SHIM,T=2.35
€ 13.00
12037H
12037009
ref: 12037H
SHIM,T=2.40
€ 13.00
12037I
12037010
ref: 12037I
SHIM,T=2.45
€ 13.00
12037J
12037011
ref: 12037J
SHIM,T=2.50
€ 13.00
12037K
12037012
ref: 12037K
SHIM,T=2.55
€ 13.00
12037L
12037013
ref: 12037L
SHIM,T=2.60
€ 13.00
12037M
12037014
ref: 12037M
SHIM,T=2.65
€ 13.00
12037N
12037015
ref: 12037N
SHIM,T=2.70
€ 13.00
12037O
12037016
ref: 12037O
SHIM,T=2.75
€ 13.00
12037P
12037017
ref: 12037P
SHIM,T=2.80
€ 13.00
12037Q
12037018
ref: 12037Q
SHIM,T=2.85
€ 13.00
12037R
12037019
ref: 12037R
SHIM,T=2.90
€ 13.00
12037S
12037020
ref: 12037S
SHIM,T=2.95
€ 13.00
12037T
12037021
ref: 12037T
SHIM,T=3.00
€ 13.00
12037U
12037022
ref: 12037U
SHIM,T=3.05
€ 13.00
12037V
12037023
ref: 12037V
SHIM,T=3.10
€ 13.00
12037W
12037024
ref: 12037W
SHIM,T=3.15
€ 13.00
12037X
12037025
ref: 12037X
SHIM,T=3.20
€ 13.00
16007
160071173
ref: 16007
SEAT-SPRING
€ 14.50
49078
490781119
ref: 49078
SPRING-ENGINE VALVE,I
€ 9.50
49078A
490781120
ref: 49078A
SPRING-ENGINE VALVE,O
€ 8.50
92049
92049016
ref: 92049
OIL SEAL,RV37129.5
€ 13.50
