FUEL TANK
KLX650C4 1996 USA CALIFORNIA CANADA

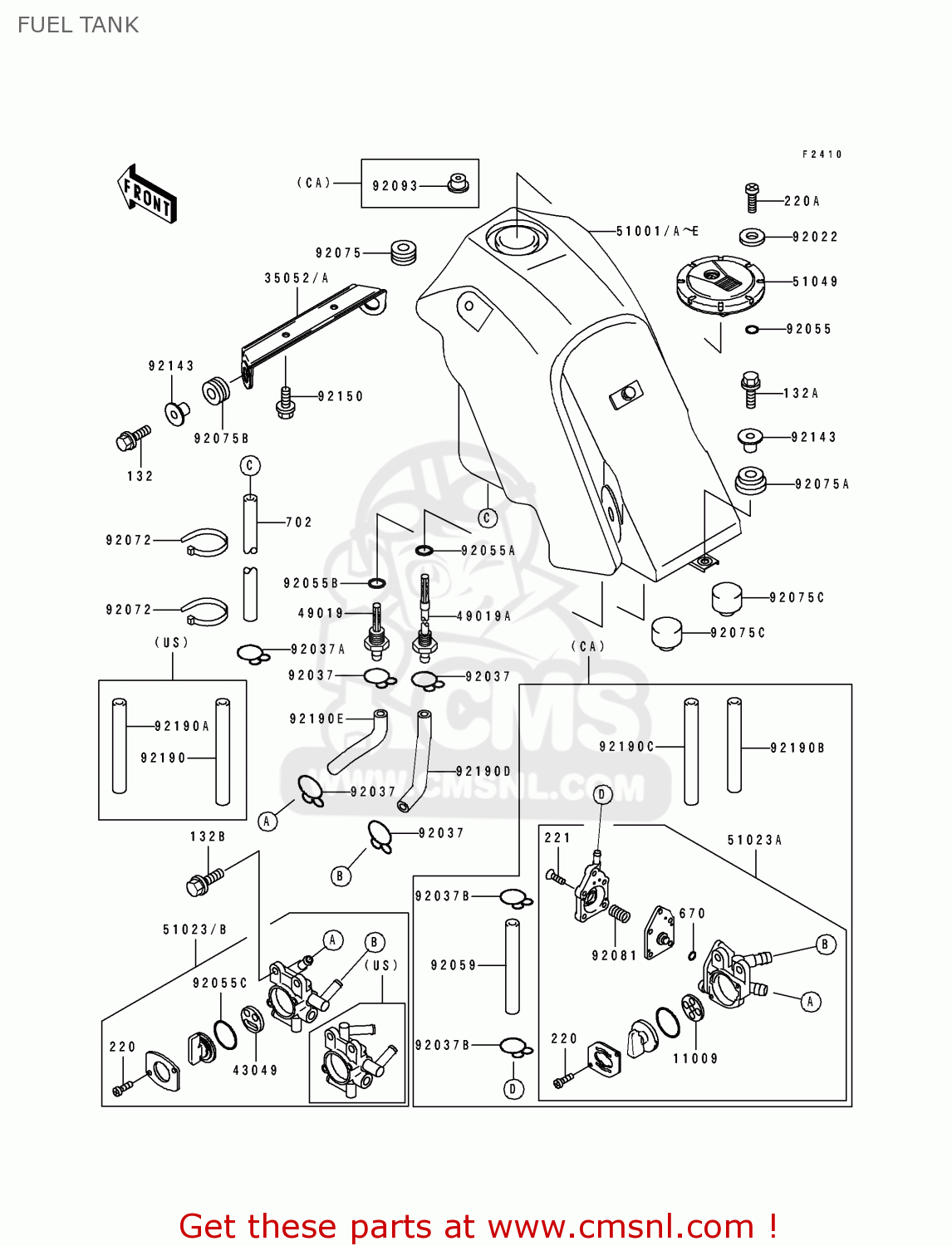

Fuel tank diagram KLX650C4 1996 USA CALIFORNIA CANADA
FUEL TANK KLX650C4 1996 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091188
ref: 11009
CA
GASKET,TAP VALVE (NAS)
€ 4.00
32052A
320521366TY
ref: 32052A
BRACKET-TANK,FR,VIOLE
€ 16.50
43049
430491066
ref: 43049
CNUS
PACKING,TAP VALVE (NAS)
€ 5.00
49019
490191057
ref: 49019
FILTER-FUEL,"RES"
€ 12.00
49019A
490191058
ref: 49019A
FILTER-FUEL,ON
€ 18.50
51001B
510011453H1
ref: 51001B
CNUS
FUEL TANK,COMPLETE,SUNBEAM RED
€ 525.00
51001D
510011455H1
ref: 51001D
CA
FUEL TANK,COMPLETE,SUNBEAM RED
€ 525.00
51023A
510231208
ref: 51023A
CA
FUEL TAP ASSEMBLY
€ 50.50
51023B
510231210
ref: 51023B
CNUS
TAP-ASSY,FUEL
€ 49.50
51049
510491077
ref: 51049
CAP-TANK,FUEL
€ 89.00
92022
920221977
ref: 92022
WASHER,5.1X10X1.0
€ 2.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92037A
920371610
ref: 92037A
CNUS
CLAMP
€ 1.50
92037B
920371712
ref: 92037B
CA
CLAMP
€ 3.00
92055
920551023
ref: 92055
ORING
€ 2.50
92055A
920551386
ref: 92055A
RING-O,ID=9.5
€ 2.50
92055B
920551387
ref: 92055B
RING-O,ID=11.5
€ 2.50
92055C
920551419
ref: 92055C
CNUS
RING-O,TAP LEVER
€ 3.00
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0625
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
132B
132J0608
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
220
220B0308
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220D0510
ref: 220A
SCREW-PAN-CROS
€ 0.50
221
221B0414
ref: 221
CA
SCREW-CSR-CROS,4X14
€ 2.50
670
670B1504
ref: 670
CA
O RING,4MM
€ 2.50
702
702A05620
ref: 702
CNUS
TUBE-RUBBER,5X8X620
€ 50.00
92059
920591365
ref: 92059
CA
TUBE,4X9X80
€ 9.50
92072
920721293
ref: 92072
CNUS
BAND
€ 6.50
92075
92075005
ref: 92075
DAMPER
€ 2.50
92075A
92075112
ref: 92075A
DAMPER RUBBER
€ 2.50
92075B
920751123
ref: 92075B
DAMPER,RUBBER
€ 3.00
92075C
920751876
ref: 92075C
DAMPER
€ 7.00
92081
920811240
ref: 92081
CA
SPRING,DIAPHRAGM VLV
€ 2.50
92093
920931030
ref: 92093
CA
OIL SEAL,FUEL TANK CA
€ 5.00
92143
921431353
ref: 92143
COLLAR
€ 5.50
92150
921501435
ref: 92150
BOLT
€ 2.50
92190B
921901479
ref: 92190B
CA
TUBE,ON,5.5X11.1X92
€ 5.50
92190C
921901480
ref: 92190C
CA
TUBE,RES,5.6X11.1X1
€ 2.50
92190D
921901496
ref: 92190D
CNUS
TUBE
€ 6.50
92190E
921901497
ref: 92190E
CNUS
TUBE
€ 5.50
