TRANSMISSION
KLX650C2 1994 USA CALIFORNIA

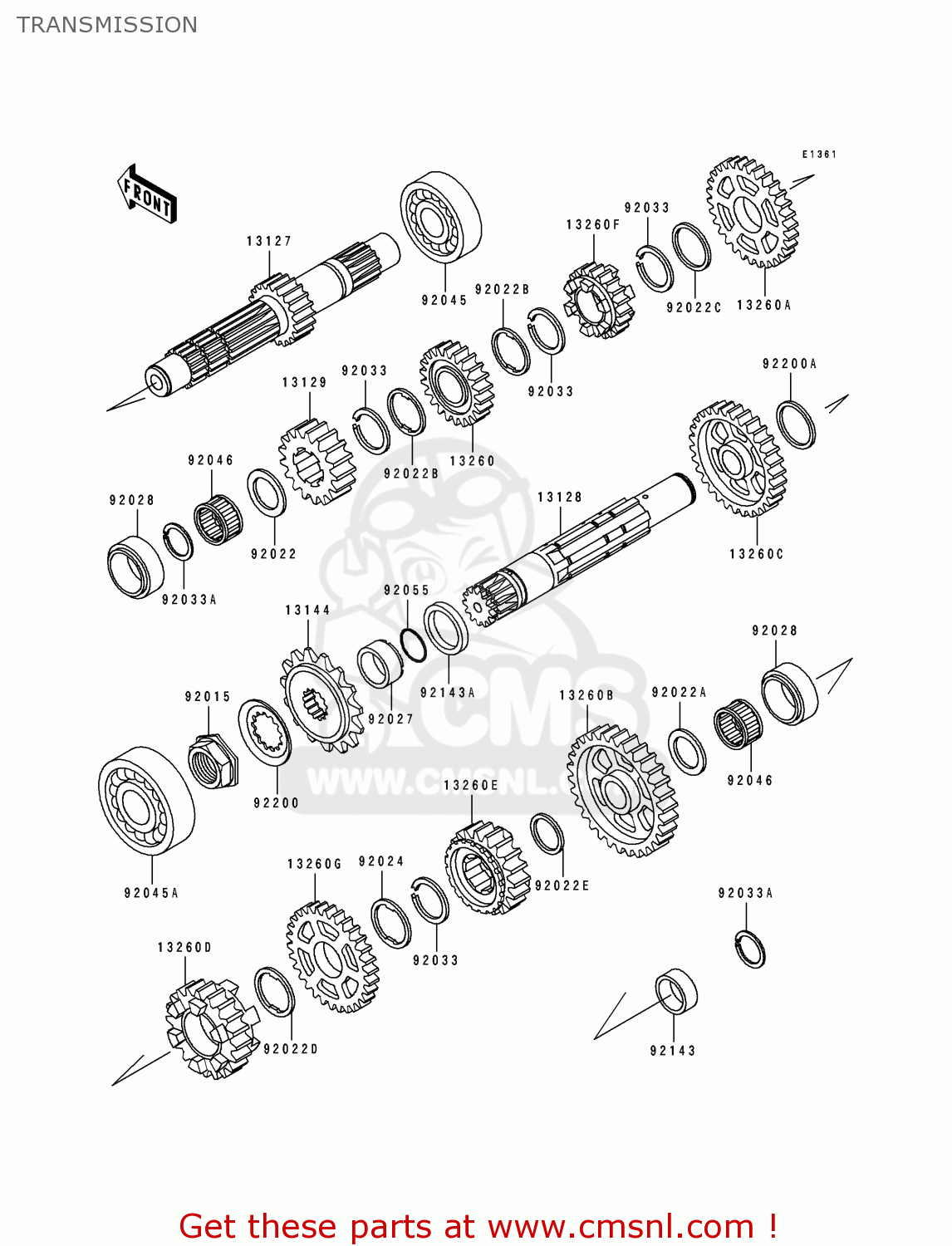

Transmission diagram KLX650C2 1994 USA CALIFORNIA
TRANSMISSION KLX650C2 1994 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
13127
131271147
ref: 13127
SHAFT-TRANSMISSION IN
€ 180.00
13128
131281195
ref: 13128
SHAFT-TRANSMISSION OU
€ 192.00
13129
131291518
ref: 13129
GEAR,INPUT 2ND,17T
€ 55.50
13144
131441253
ref: 13144
SPROCKET-OUTPUT,15T
€ 34.50
13260
132601325
ref: 13260
GEAR,INPUT 4TH,22T
€ 68.50
13260A
132601326
ref: 13260A
GEAR,INPUT TOP,24T
€ 114.00
13260B
132601327
ref: 13260B
GEAR,OUTPUT LOW,34T
€ 118.00
13260C
132601328
ref: 13260C
GEAR,OUTPUT 2ND,26T
€ 102.50
13260D
132601330
ref: 13260D
GEAR,OUTPUT 4TH,21T
€ 75.50
13260E
132601331
ref: 13260E
GEAR,OUTPUT TOP,19T
€ 110.50
13260F
132601383
ref: 13260F
GEAR,INPUT 3RD,22T
€ 39.00
13260G
132601384
ref: 13260G
GEAR,OUTPUT 3RD,26T
€ 96.50
92015
920151963
ref: 92015
NUT,20MM
€ 10.50
92022
92022112
ref: 92022
WASHER,20.5X30X1,STEE
€ 6.00
92022A
920221479
ref: 92022A
WASHER,20.3X29X0.5
€ 3.00
92022B
920221482
ref: 92022B
WASHER,TOOTHED,25.3X2
€ 2.50
92022C
92022159
ref: 92022C
WASHER-THRUST,25MM
€ 5.50
92022D
92022225
ref: 92022D
WASHER-THRUST
€ 3.50
92022E
92022252
ref: 92022E
WASHER
€ 4.00
92024
92024038
ref: 92024
WASHER-LOCK
€ 4.00
92027
920271800
ref: 92027
COLLAR
€ 19.50
92028
920281698
ref: 92028
BUSHING
€ 26.50
92033
92033026
ref: 92033
CIRCLIP
€ 6.00
92033A
92033029
ref: 92033A
CIRCLIP,18MM
€ 6.50
92045
920451105
ref: 92045
BEARING-BALL,TMB205
€ 25.00
92045A
920451295
ref: 92045A
BEARING-BALL,83C356CD
€ 130.50
92046
920461170
ref: 92046
BEARING-NEEDLE,KT2026
€ 9.00
92055
920551293
ref: 92055
RING-O, 21.5MM
€ 3.00
92143
921431624
ref: 92143
COLLAR,20X25X9.5
€ 7.00
92143A
921431644
ref: 92143A
COLLAR
€ 10.00
92200
922001065
ref: 92200
WASHER
€ 4.50
92200A
922001170
ref: 92200A
WASHER,2ND GEAR
€ 2.50
