IGNITION SYSTEM
KLX650C2 1994 USA CALIFORNIA

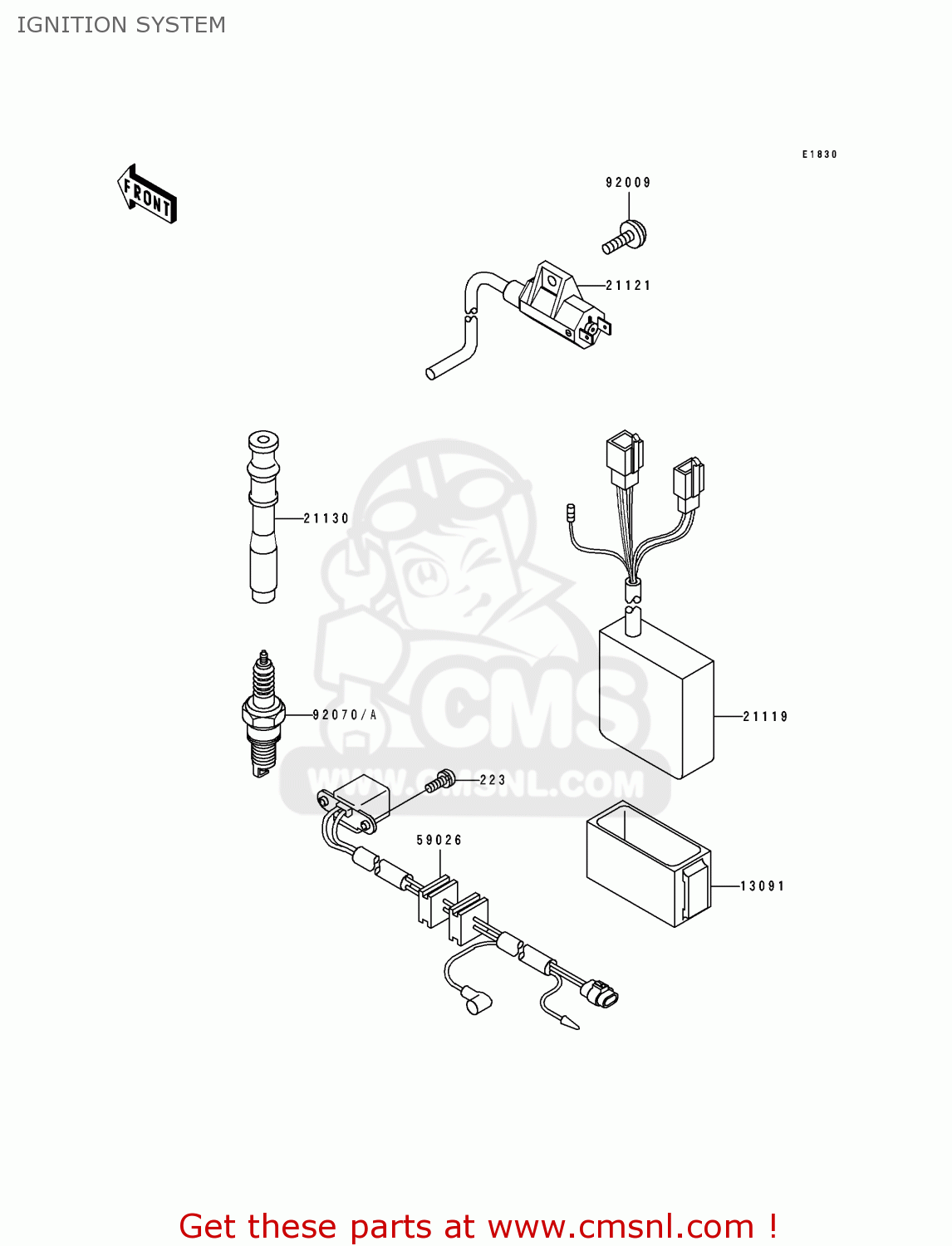

Ignition system diagram KLX650C2 1994 USA CALIFORNIA
IGNITION SYSTEM KLX650C2 1994 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
223
223B0514
ref: 223
SCREW-PAN-WS-CROS
€ 1.50
13091
130911271
ref: 13091
HOLDER,IGNITER
€ 12.50
21119
211191368
ref: 21119
IGNITER
€ 492.00
21121
211211152
ref: 21121
COIL-IGNITION
€ 150.00
21130
211301065
ref: 21130
CAP-SPARK PLUG
€ 30.50
59026
590261125
ref: 59026
COIL-PULSING
€ 87.50
92009
920091111
ref: 92009
SCREW,6X18
€ 3.00
92070
920701065
ref: 92070
DPR8EA-9 (NGK SPARKPL
€ 4.00
92070A
ref: 92070A
