SWINGARM

KLX650C2 1994 USA CALIFORNIA

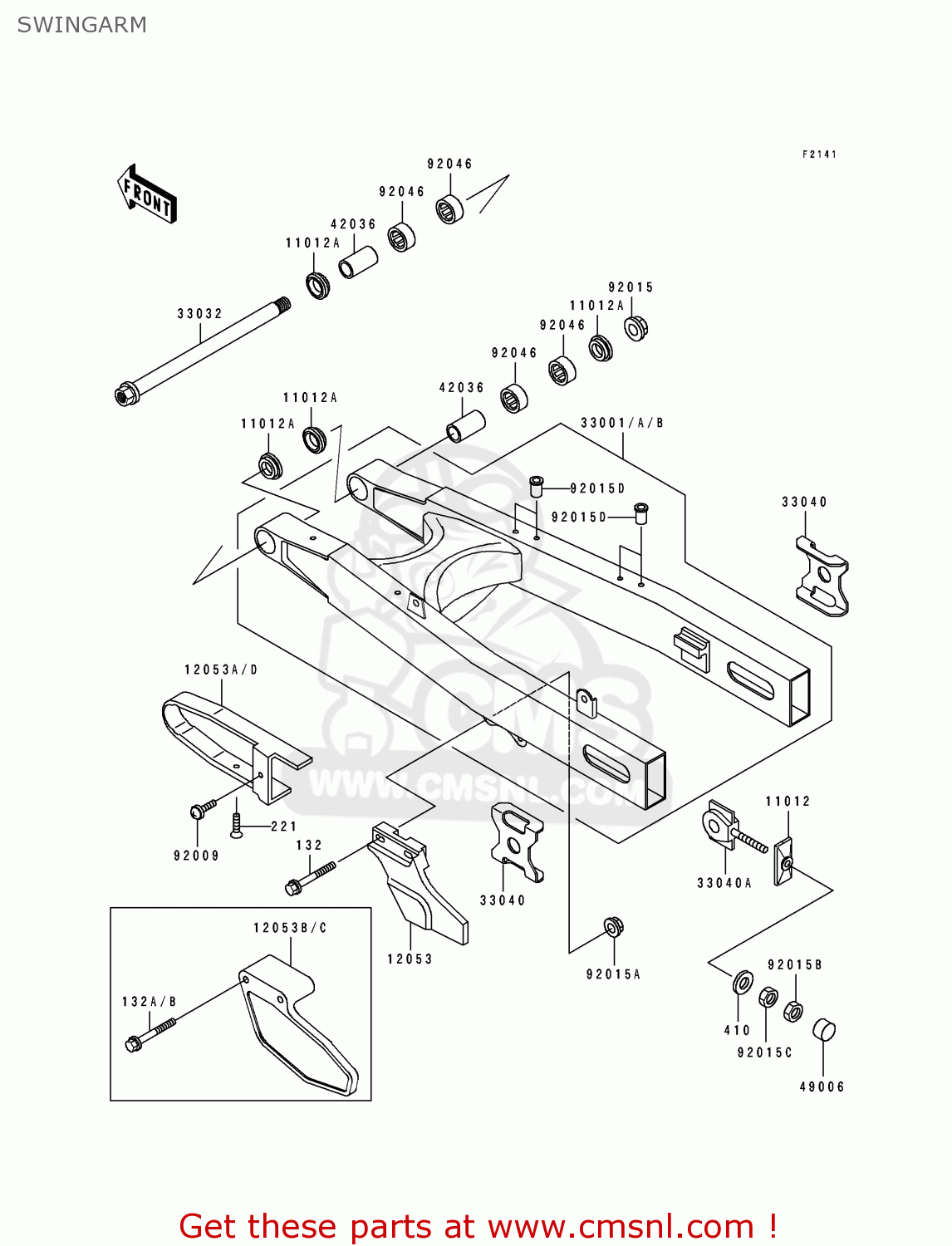

Swingarm diagram KLX650C2 1994 USA CALIFORNIA

SWINGARM KLX650C2 1994 USA CALIFORNIA
SWINGARM KLX650C2 1994 USA CALIFORNIA
SWINGARM KLX650C2 1994 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
132A
132G0655
ref: 132A
BOLT-FLANGED-SMALL
132G0655
€ 2.00
221
221B0610
ref: 221
SCREW-CNTSNK HD,6X10
221B0610
€ 2.50
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
410B0800
€ 0.50
11012
110121780
ref: 11012
CAP,CHAIN ADJUSTER
110121780
€ 17.50
11012A
110121790
ref: 11012A
CAP,SWING ARM PIPOT
110121790
€ 16.50
12053A
120531293
ref: 12053A
GUIDE-CHAIN,DRIVE,FR
120531293
€ 37.50
12053B
120531335
ref: 12053B
GUIDE-CHAIN,RR
120531335
€ 16.50
33001A
330011436CE
ref: 33001A
ARM-COMP-SWING,SILVER
€ 606.50
33032
330321171
ref: 33032
SHAFT-SWING ARM
€ 45.00
33040
330401131
ref: 33040
ADJUSTER-CHAIN,OUTER
330401131
€ 10.00
33040A
330401132
ref: 33040A
ADJUSTER-CHAIN,INNER
330401132
€ 16.50
42036
420361307
ref: 42036
SLEEVE,SWING ARM,L=58
420361307
€ 17.50
49006
490061218
ref: 49006
BOOT
490061218
€ 3.50
92009
920091288
ref: 92009
SCREW,6X14
920091288
€ 2.00
92015
920151316
ref: 92015
NUT,FLANGED,16MM
920151316
€ 16.50
92015A
920151339
ref: 92015A
NUT,LOCK,FLANGED,6MM
920151339
€ 1.00
92015B
920151364
ref: 92015B
NUT,8MM
920151364
€ 2.50
92015C
920151658
ref: 92015C
NUT,FLANGED,8MM
920151658
€ 3.00
92015D
920151792
ref: 92015D
NUT,POP,6MM,L=16.5
920151792
€ 3.00
92046
920461214
ref: 92046
BEARING-NEEDLE,HK2212
920461214
€ 24.00
