GENERATOR

KLX300A8 KLX300R 2003 USA CALIFORNIA CANADA

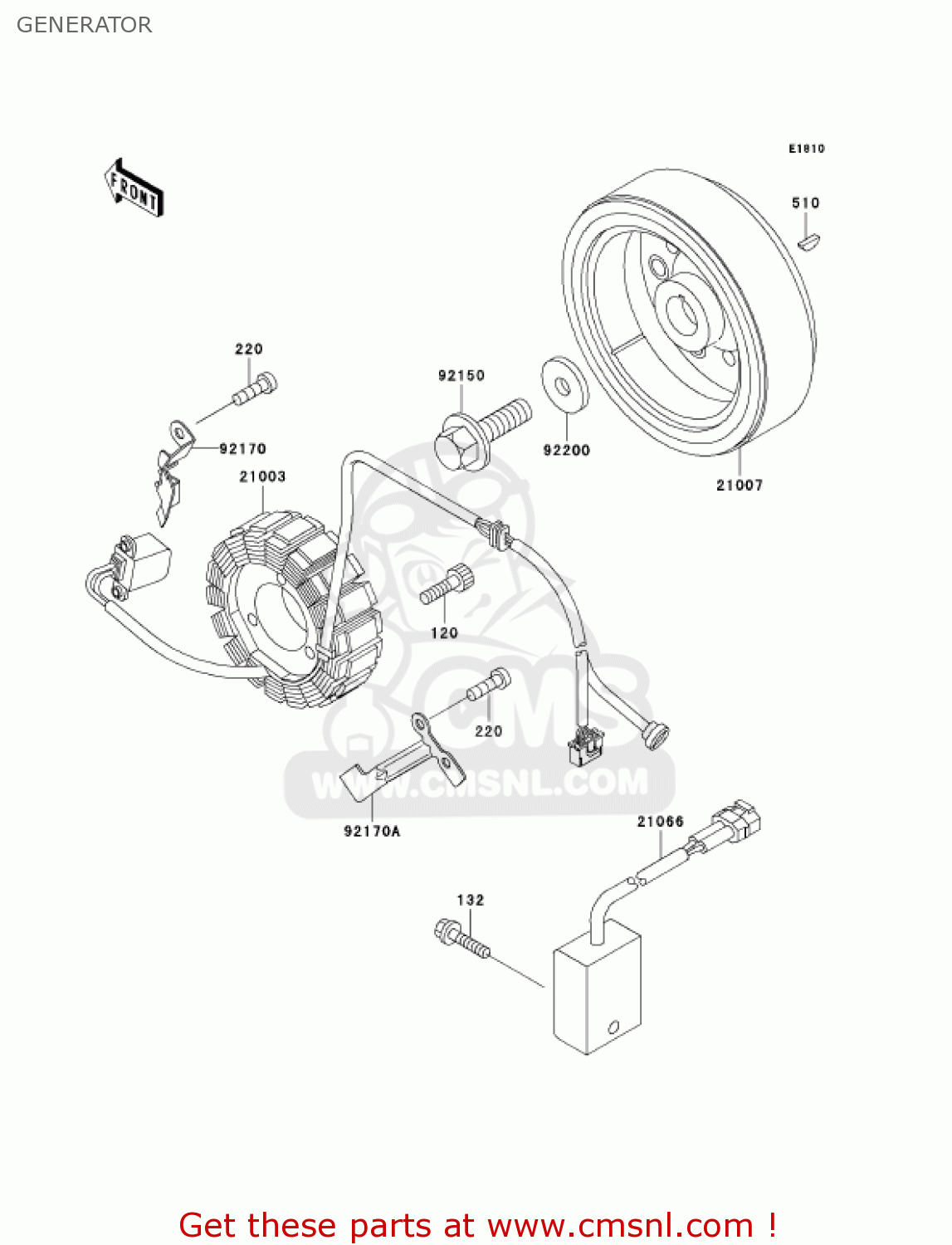

Generator diagram KLX300A8 KLX300R 2003 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

120

120P0530
ref: 120

BOLT-SOCKET,5X30

€ 2.50

132

132J0612
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

220

220B0512
ref: 220

SCREW-PAN-CROS

€ 0.50

510

510A3100
ref: 510

KEY-WOODRUFF

€ 1.50

21003

210031274
ref: 21003

STATOR

€ 394.00

21007

210071314
ref: 21007

ROTOR,MAGNETO

€ 478.50

21066

210661072
ref: 21066

REGULATOR-VOLTAGE

€ 164.50

92150

921501134
ref: 92150

BOLT,10X32

€ 6.00

92170

921701346
ref: 92170

CLAMP

€ 3.00

92170A

921701347
ref: 92170A

CLAMP

€ 3.00

92200

922001185
ref: 92200

WASHER,10X30X4

€ 8.50
