FRAME FITTINGS

KLX300A8 KLX300R 2003 USA CALIFORNIA CANADA

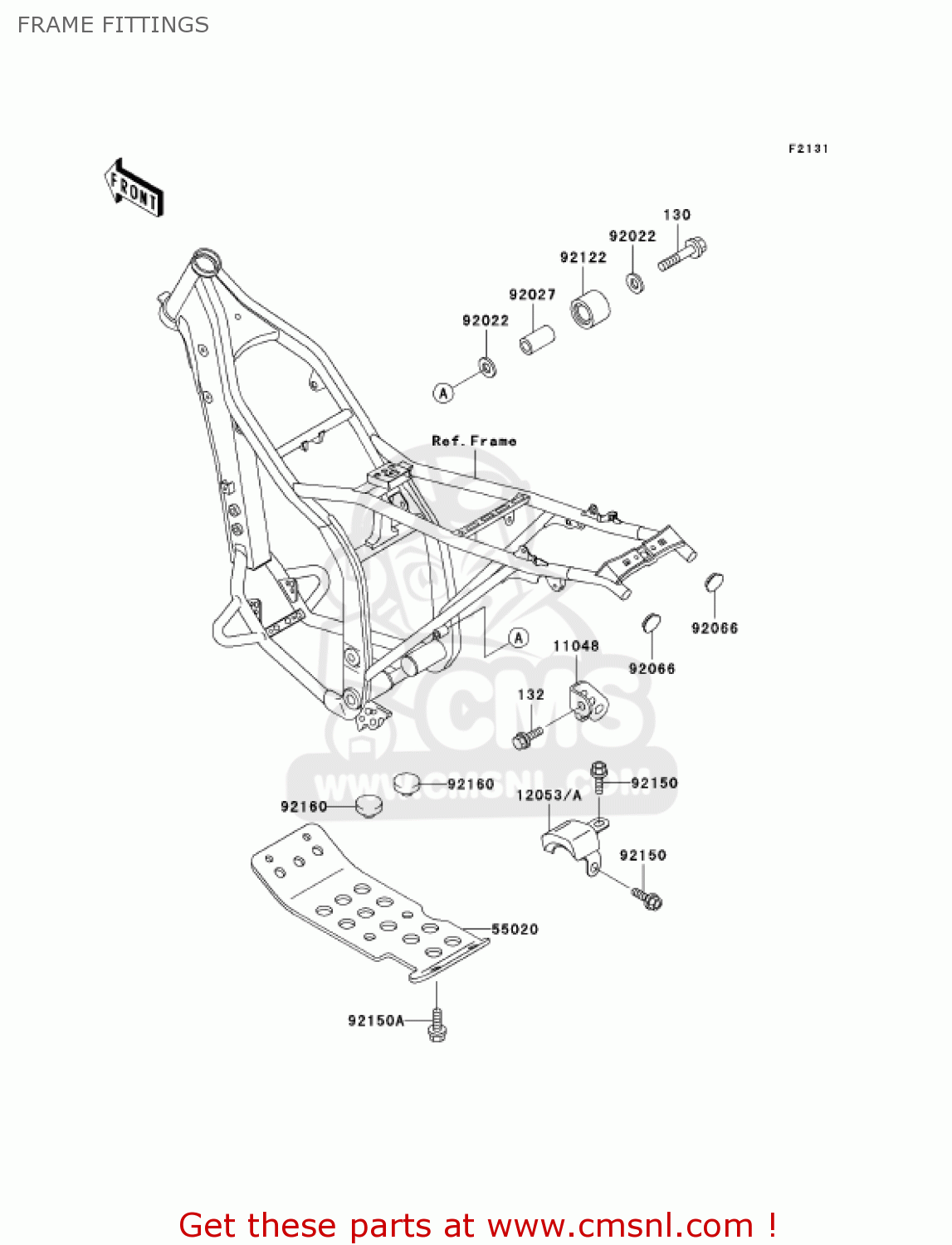

Frame fittings diagram KLX300A8 KLX300R 2003 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130G0840
ref: 130

BOLT-FLANGED,8X40

€ 1.00

132

132G0612
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

11048

110481223
ref: 11048

BRACKET,AIR FILTER,LW

€ 5.50

12053A

120531314
ref: 12053A

GUIDE-CHAIN

€ 10.50

55020

550201456
ref: 55020

GUARD,ENGINE

€ 74.00

92022

920221561
ref: 92022

WASHER,8.5X20X1.6

€ 2.50

92027

920271670
ref: 92027

COLLAR,CHAIN ROLLER

€ 4.50

92066

920661034
ref: 92066

PLUG,FRAME END

€ 3.00

92122

921221153
ref: 92122

ROLLER,CHAIN GUIDE

€ 7.00

92150

921501340
ref: 92150

BOLT,6X14

€ 3.00

92150A

921501435
ref: 92150A

BOLT

€ 2.50

92160

921601396
ref: 92160

DAMPER

€ 3.50
