BRAKE PEDAL

KLX300A8 KLX300R 2003 USA CALIFORNIA CANADA

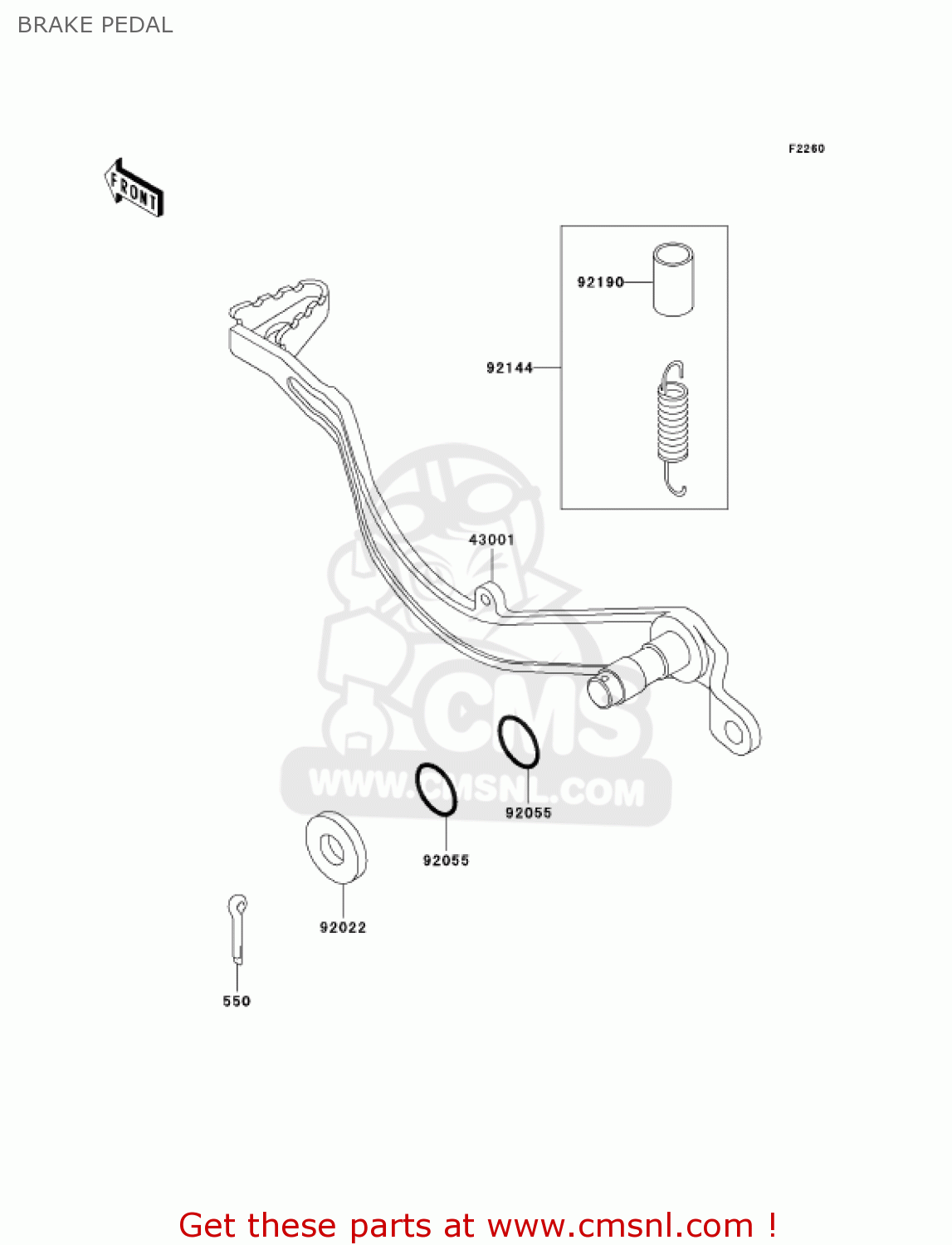

Brake pedal diagram KLX300A8 KLX300R 2003 USA CALIFORNIA CANADA

BRAKE PEDAL KLX300A8 KLX300R 2003 USA CALIFORNIA CANADA

BRAKE PEDAL KLX300A8 KLX300R 2003 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

550

550D2525
ref: 550

PIN-COTTER,2.5X25

€ 1.00

43001

430011331
ref: 43001

LEVER-BRAKE,PEDAL

€ 53.00

92022

920221561
ref: 92022

WASHER,8.5X20X1.6

€ 2.50

92055

920551148
ref: 92055

RING-O,OD=18.5MM

€ 9.50

92144

921441752
ref: 92144

SPRING,BRAKE PEDAL RE

€ 4.50

92190

921901488
ref: 92190

TUBE,13X16X25

€ 2.00
