WATER PUMP

KLX300A7 KLX300R 2002 USA CALIFORNIA CANADA

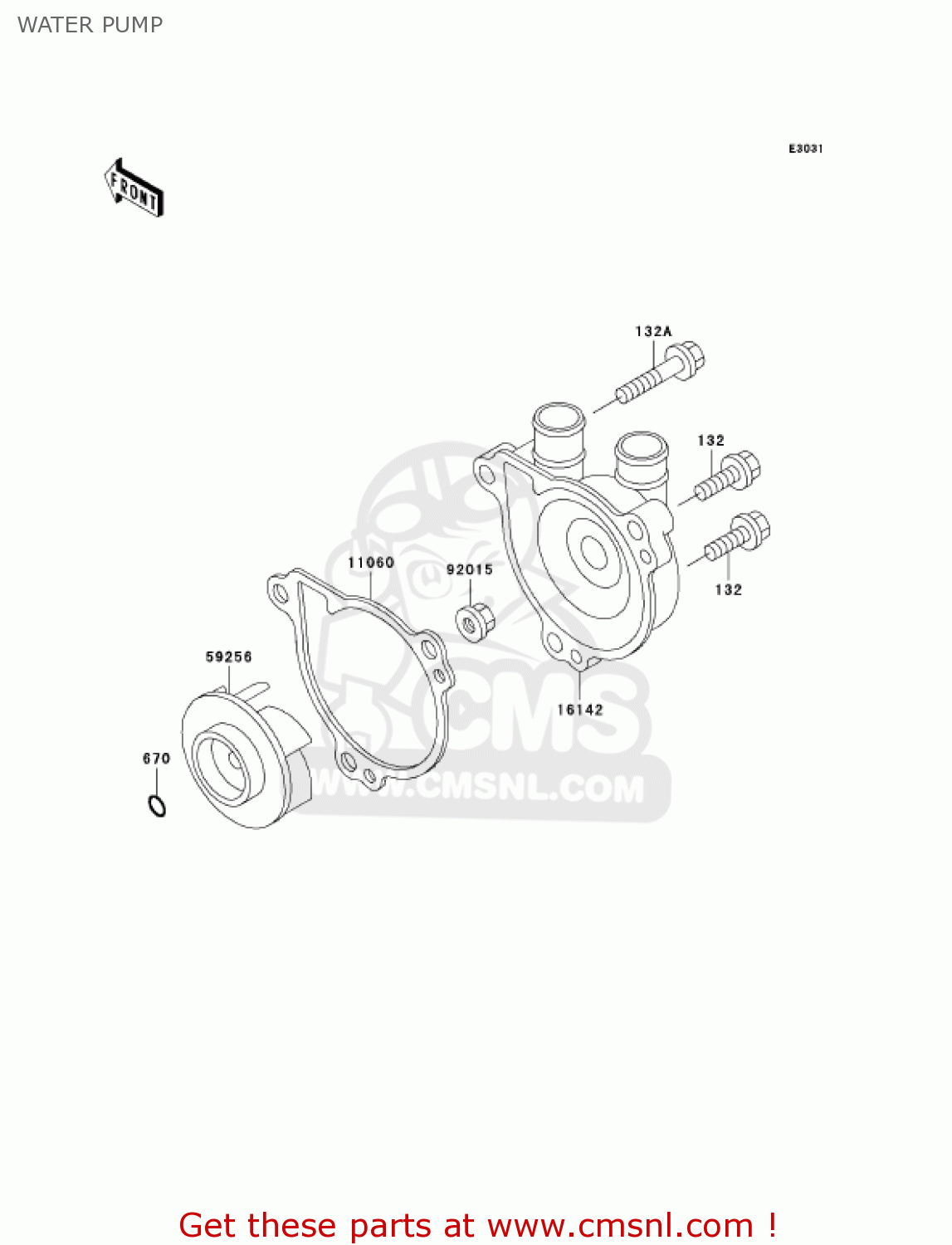

Water pump diagram KLX300A7 KLX300R 2002 USA CALIFORNIA CANADA

WATER PUMP KLX300A7 KLX300R 2002 USA CALIFORNIA CANADA

WATER PUMP KLX300A7 KLX300R 2002 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

132

132Y0625
ref: 132

BOLT-FLANGED-SMALL

€ 3.50

132A

132Y0665
ref: 132A

BOLT-FLANGED-SMALL

€ 3.00

670

670B1506
ref: 670

O RING,6MM

€ 1.00

11060

110601328
ref: 11060

GASKET,PUMP COVER (NAS)

€ 3.00

16142

161421125
ref: 16142

COVER-PUMP

€ 54.50

59256

592561063
ref: 59256

IMPELLER

€ 23.00

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50
