CRANKSHAFT

KLX300A7 KLX300R 2002 USA CALIFORNIA CANADA

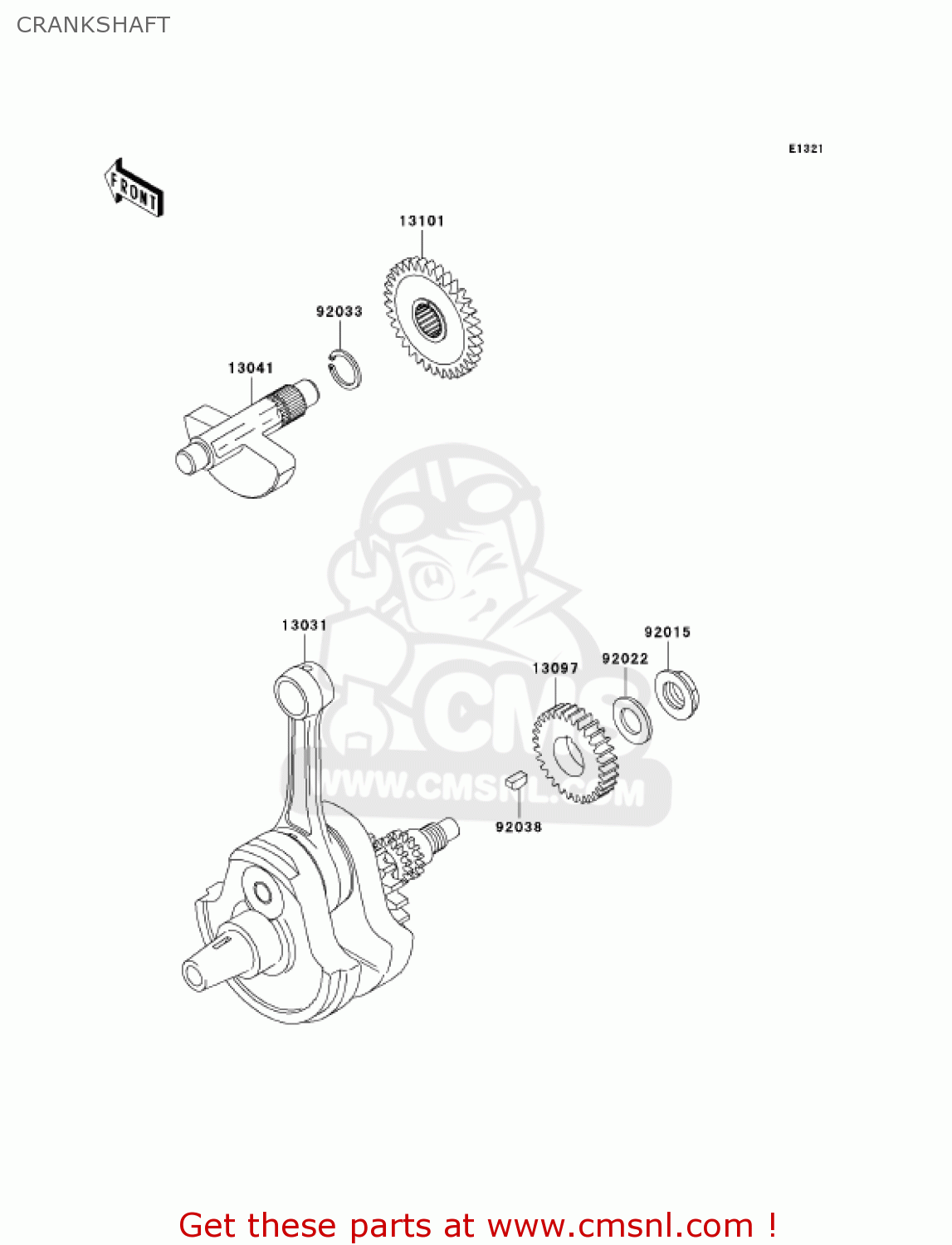

Crankshaft diagram KLX300A7 KLX300R 2002 USA CALIFORNIA CANADA

CRANKSHAFT KLX300A7 KLX300R 2002 USA CALIFORNIA CANADA

CRANKSHAFT KLX300A7 KLX300R 2002 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

13031

130311427
ref: 13031

CRANKSHAFT-COMP

€ 754.50

13041

130411134
ref: 13041

BALANCER

€ 72.50

13097

130971296
ref: 13097

GEAR-PRIMARY SPUR,22T

€ 59.00

13101

131011253
ref: 13101

GEAR-ASSY,BALANCER

€ 111.50

92015

920151581
ref: 92015

NUT,16MM

€ 13.50

92022

920221356
ref: 92022

WASHER,16.3X29X1.75

€ 4.50

92033

92033029
ref: 92033

CIRCLIP,18MM

€ 6.50

92038

920381057
ref: 92038

KEY

€ 3.50
