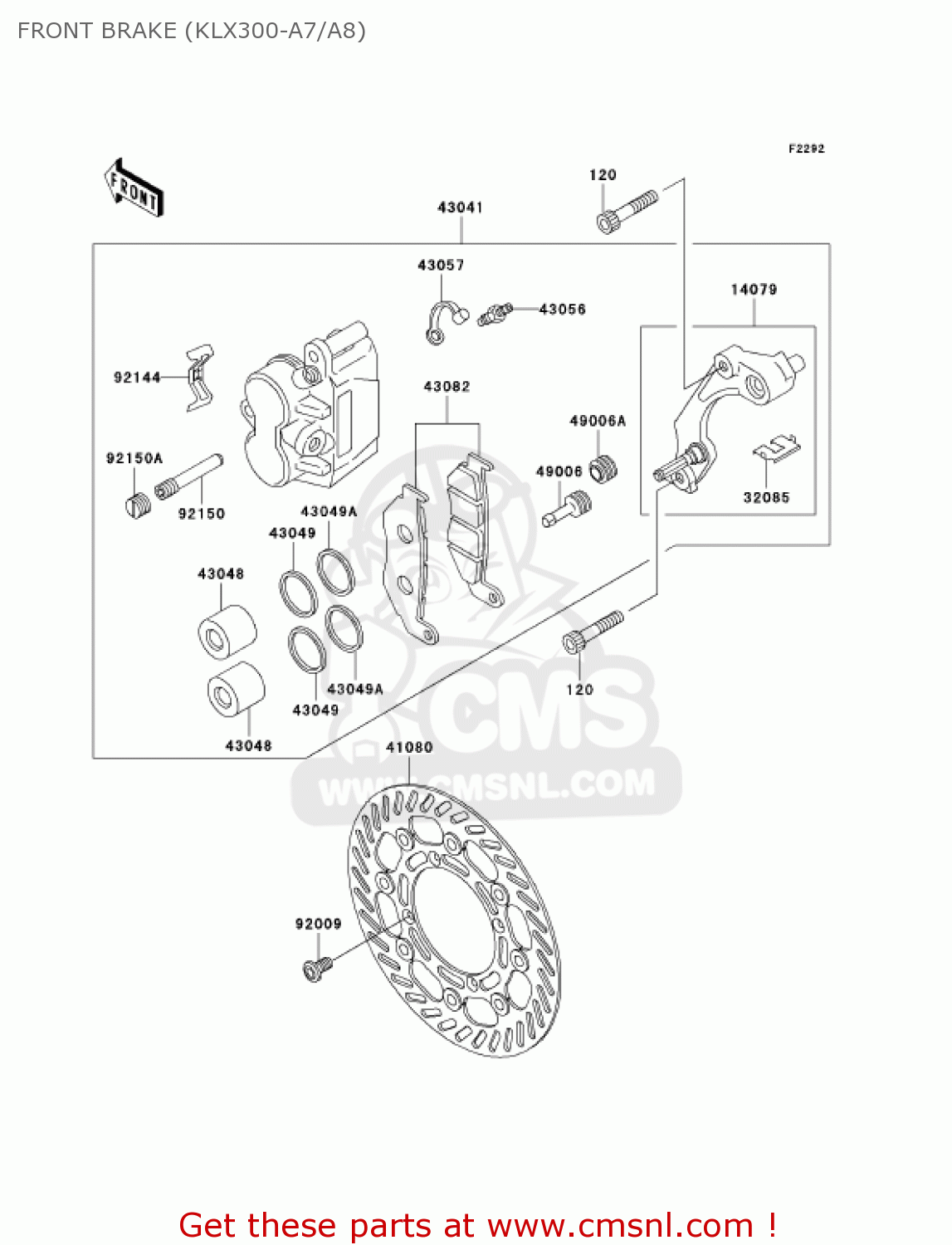

FRONT BRAKE (KLX300-A7/A8)

KLX300A7 KLX300R 2002 USA CALIFORNIA CANADA

Front brake (klx300-a7/a8) diagram KLX300A7 KLX300R 2002 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

120

120P0840
ref: 120

BOLT-SOCKET,8X40

€ 2.00

14079

140791097
ref: 14079

HOLDER-ASSY,FRONT CAL

€ 125.50

32085

320851361
ref: 32085

STOPPER,PAD

€ 5.00

41080

410801387
ref: 41080

DISC,FR

€ 160.50

43041

430411576
ref: 43041

CALIPER-ASSY,FR,LH

€ 448.50

43048

430481064
ref: 43048

PISTON-CALIPER

€ 49.00

43049

430491060
ref: 43049

PACKING,PISTON SEAL (NAS)

€ 13.00

43049A

430491061
ref: 43049A

PACKING,PISTON SEAL (NAS)

€ 7.00

43056

430561055
ref: 43056

BREATHER-BRAKE

€ 10.00

43057

430571001
ref: 43057

CAP-BREATHER

€ 3.00

43082

430821172
ref: 43082

PAD-ASSY-BRAKE (NAS)

€ 42.50

49006

490061088
ref: 49006

BOOT,CALIPER

€ 7.50

49006A

490061242
ref: 49006A

BOOT

€ 3.50

92009

920091546
ref: 92009

SCREW,6X14.5

€ 3.00

92144

921441721
ref: 92144

SPRING,PAD

€ 6.50

92150

921501691
ref: 92150

BOLT,HANGER

€ 8.00

92150A

921501692
ref: 92150A

BOLT,PLUG

€ 5.00
