LABELS
KLX250D4 KLXR 1996 USA CANADA

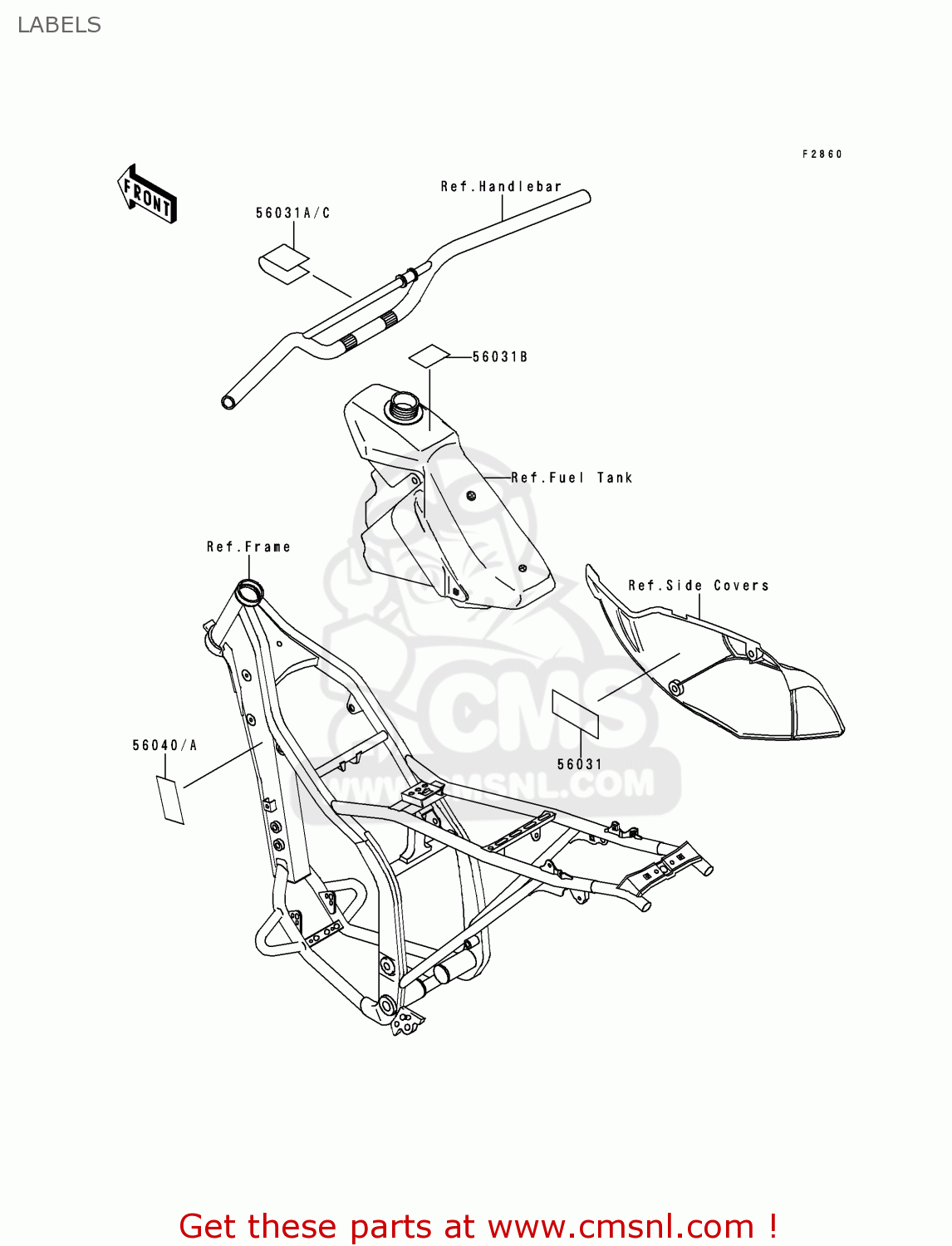

Labels diagram KLX250D4 KLXR 1996 USA CANADA
LABELS KLX250D4 KLXR 1996 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
56031
560311910
ref: 56031
LABEL-MANUAL,OIL&OIL
€ 3.50
56031A
560311917
ref: 56031A
US
LABEL-MANUAL,ENGINE S
€ 3.50
56031B
560311919
ref: 56031B
LABEL-MANUAL,ENGINE S
€ 3.00
56031C
560311925
ref: 56031C
CN
LABEL-MANUAL,ENGINE S
€ 7.00
56040
560401018
ref: 56040
US
LABEL-WARNING,OFF-ROA
€ 3.00
56040A
560401304
ref: 56040A
CN
LABEL-WARNING,OFF-ROA
€ 4.00
