HEADLIGHT(S)

KLX250D4 KLXR 1996 USA CANADA

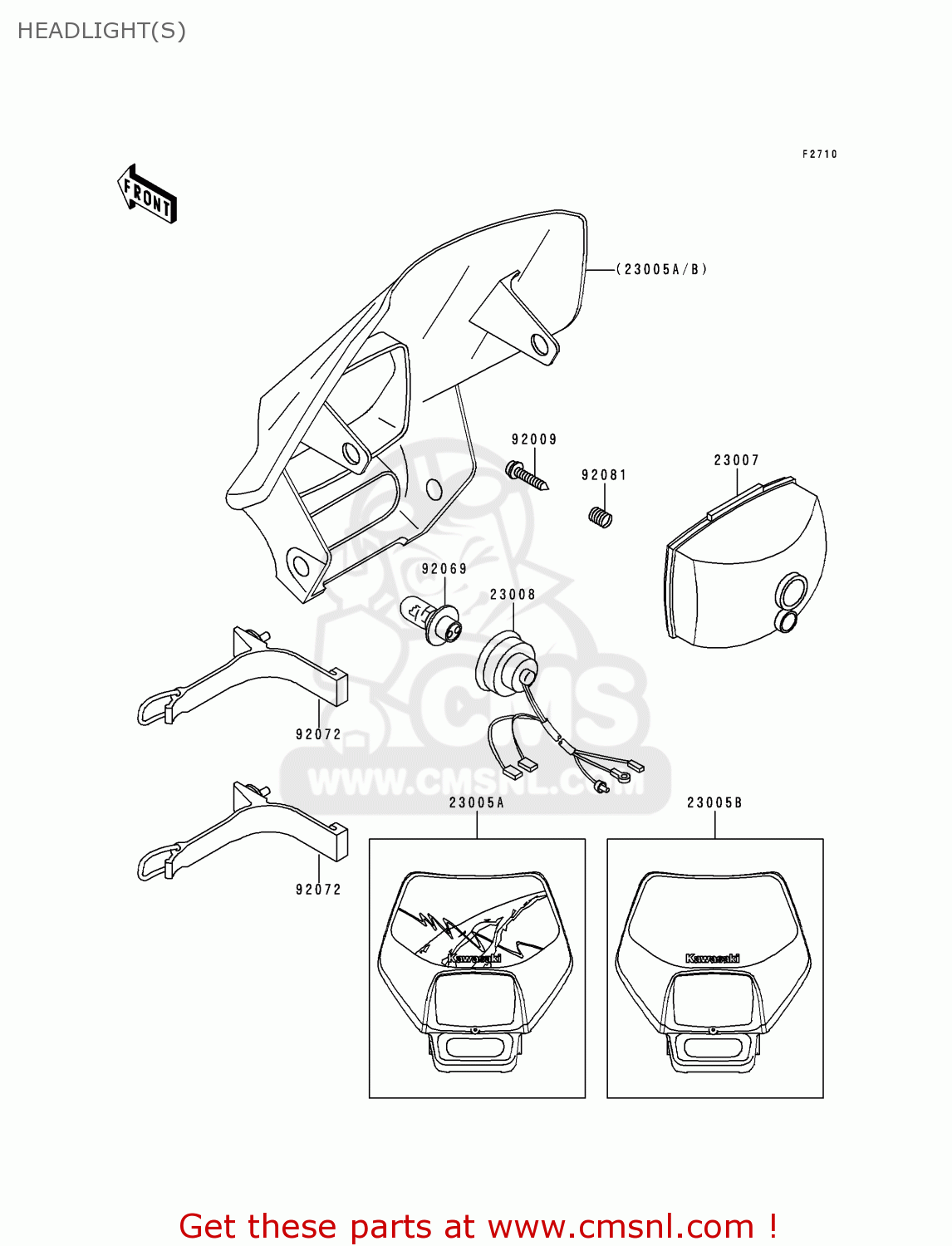

Headlight(s) diagram KLX250D4 KLXR 1996 USA CANADA

HEADLIGHT(S) KLX250D4 KLXR 1996 USA CANADA

HEADLIGHT(S) KLX250D4 KLXR 1996 USA CANADA

prices are in EUR

ref

part #

description

quantity

23005B

2300550326W
ref: 23005B

BODY-COMP-HEAD LAMP,L

€ 114.50

23007

230071246
ref: 23007

LENS-COMP,HEAD LAMP

€ 37.00

23008

230081513
ref: 23008

SOCKET-ASSY,HEAD LAMP

€ 45.50

92009

920091695
ref: 92009

SCREW,TAPPING

€ 2.00

92069

920691080
ref: 92069

BULB

€ 23.50

92072

920721297
ref: 92072

BAND,HEAD LAMP COVER

€ 17.00

92081

920811519
ref: 92081

SPRING,FOUCUS ADJUSTI

€ 2.50
