GEAR CHANGE MECHANISM
KLX250D4 KLXR 1996 USA CANADA

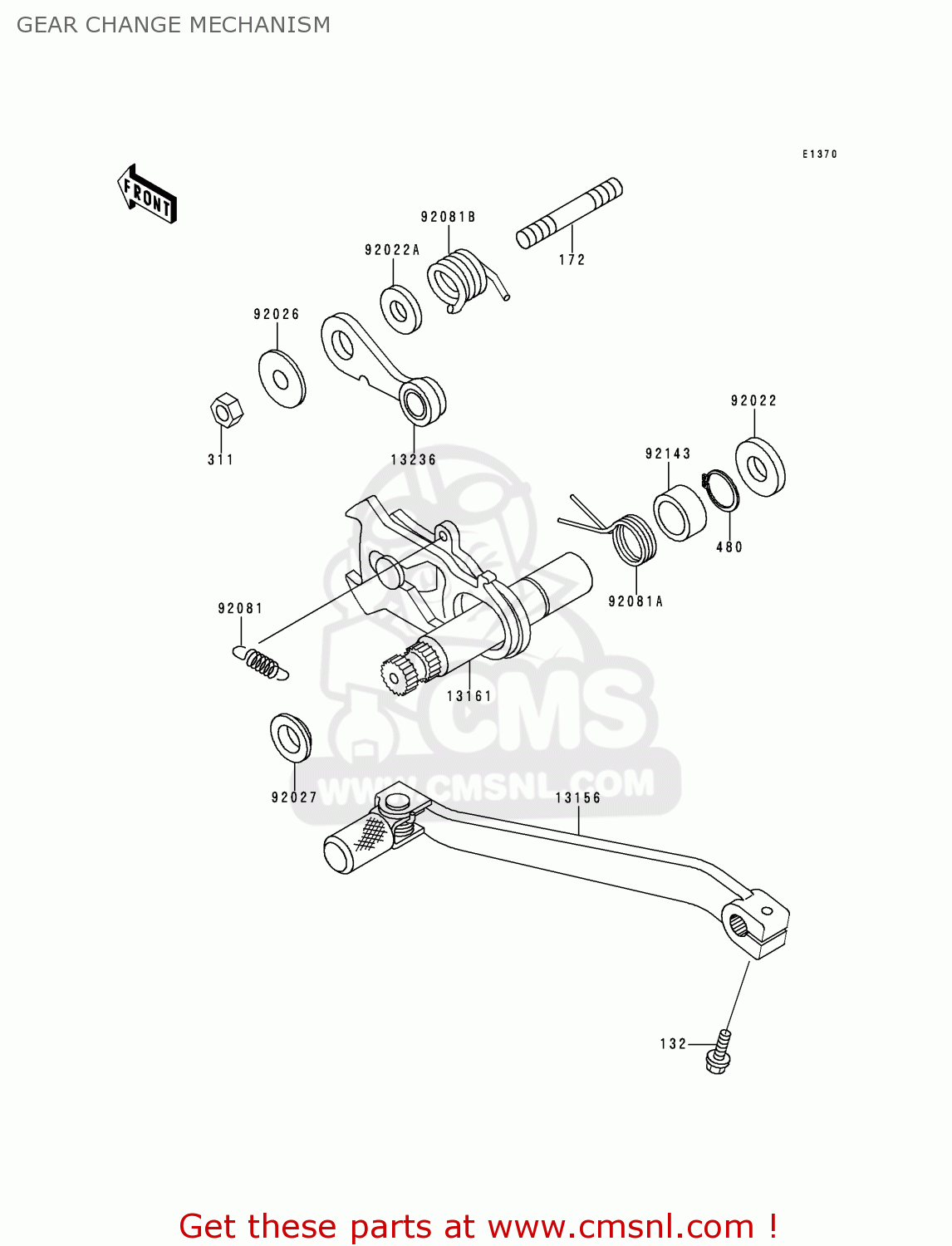

Gear change mechanism diagram KLX250D4 KLXR 1996 USA CANADA
GEAR CHANGE MECHANISM KLX250D4 KLXR 1996 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132Y0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
172
172G0612
ref: 172
BOLT-STUD,6X12
€ 1.00
311
311G0600
ref: 311
NUT,6M/M
€ 0.50
480
480J1300
ref: 480
CIRCLIP-TYPE-C,13MM
€ 2.50
13156
131561340
ref: 13156
LEVER-CHANGE,PEDAL
€ 57.50
13161
131611213
ref: 13161
LEVER-COMP-CHANGE SHA
€ 59.00
13236
132361209
ref: 13236
LEVER-COMP,NEUTRAL PO
€ 13.00
92022
920221496
ref: 92022
WASHER,13.3X20X1
€ 2.50
92022A
920221827
ref: 92022A
WASHER,6X12.8X1.2
€ 3.00
92026
920261217
ref: 92026
SPACER
€ 3.50
92027
920271512
ref: 92027
COLLAR,CHANGE SHAFT,L
€ 8.00
92081
92081076
ref: 92081
SPRING-CHANG LEVER
€ 3.50
92081A
920811129
ref: 92081A
SPRING,TENTION
€ 6.50
92081B
920811993
ref: 92081B
SPRING,POSITION LEVER
€ 4.00
92143
921431148
ref: 92143
COLLAR
€ 3.00
