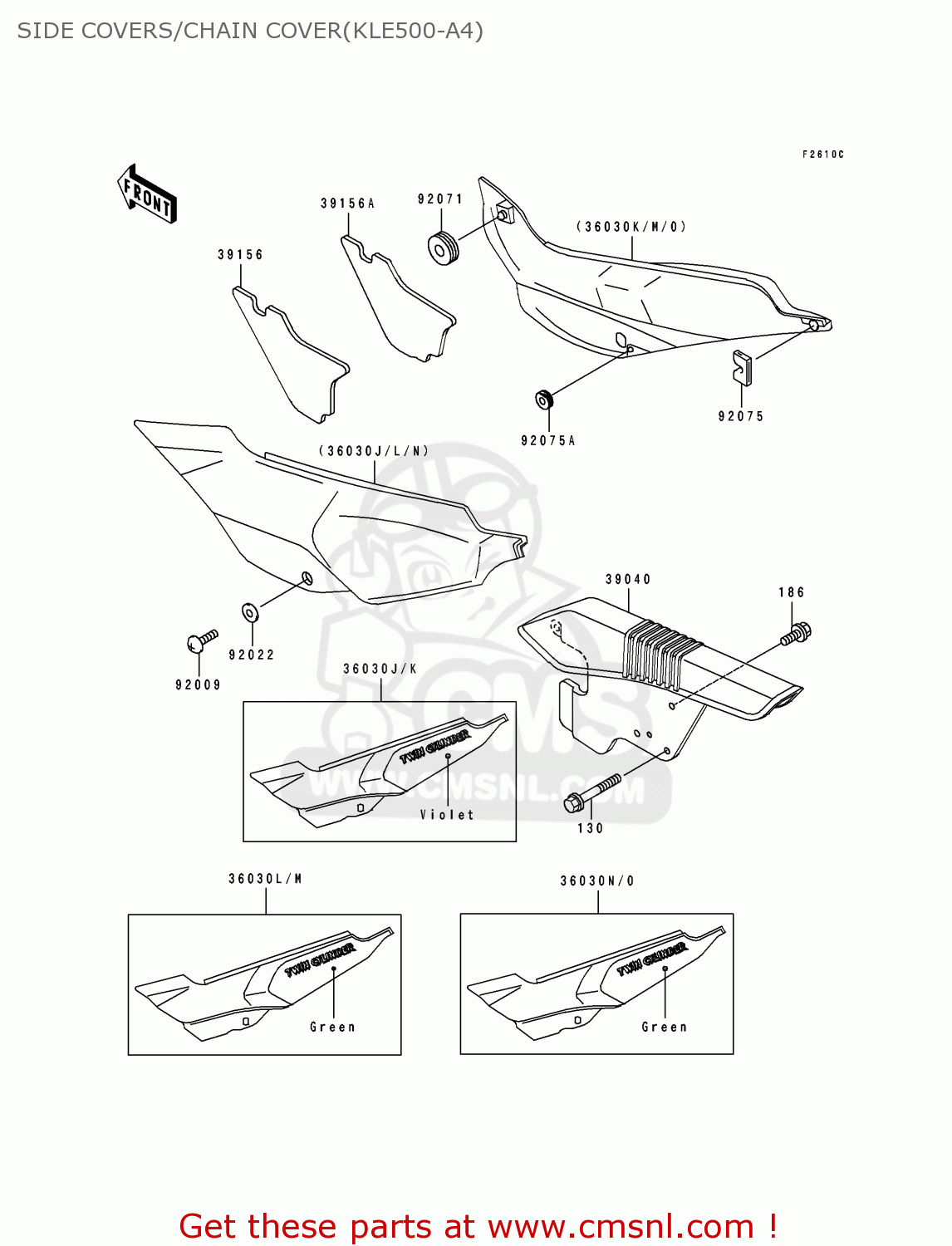

SIDE COVERS/CHAIN COVER(KLE500-A4)

KLE500A4 1994 EUROPE UK FR NL AR FG GR IT NR SP ST

Side covers/chain cover(kle500-a4) diagram KLE500A4 1994 EUROPE UK FR NL AR FG GR IT NR SP ST

prices are in EUR

ref

part #

description

quantity

130

130H0640
ref: 130

BOLT-FLANGED

€ 0.50

186

186C0612
ref: 186

BOLT-UPSET-WP

€ 0.50

36030J

360305357KJ
ref: 36030J
AREUFGSP

COVER-SIDE,LH,VIOLET/

€ 239.00

36030K

360305358KJ
ref: 36030K
AREUFGSP

COVER-SIDE,RH,VIOLET/

€ 251.00

36030L

360305359RY
ref: 36030L
AREUFGFRGRITNLSTUK

COVER-SIDE,LH,GREEN/B

€ 269.00

36030M

360305360RY
ref: 36030M
AREUFGFRGRITNLSTUK

COVER-SIDE,RH,GREEN/B

€ 267.50

36030N

3603053611E
ref: 36030N
AREUFRGRITNLSPSTUK

COVER-SIDE,LH,GREEN/B

€ 255.00

36030O

3603053621E
ref: 36030O
AREUFRGRITNLSPSTUK

COVER-SIDE,RH,GREEN/B

€ 239.50

39040

390401057
ref: 39040

COVER-ASSY-CHAIN CASE

€ 70.00

39156

391561284
ref: 39156

PAD,SIDE COVER,LH

€ 15.00

39156A

391561285
ref: 39156A

PAD,SIDE COVER,RH

€ 13.00

92009

920091288
ref: 92009

SCREW,6X14

€ 2.00

92022

920221143
ref: 92022

WASHER,6.5X16X1

€ 2.50

92071

92071056
ref: 92071

GROMMET

€ 2.50

92075

920751967
ref: 92075

DAMPER

€ 3.50

92075A

920751986
ref: 92075A

DAMPER

€ 3.00
