FRAME FITTINGS

KLE500A4 1994 EUROPE UK FR NL AR FG GR IT NR SP ST

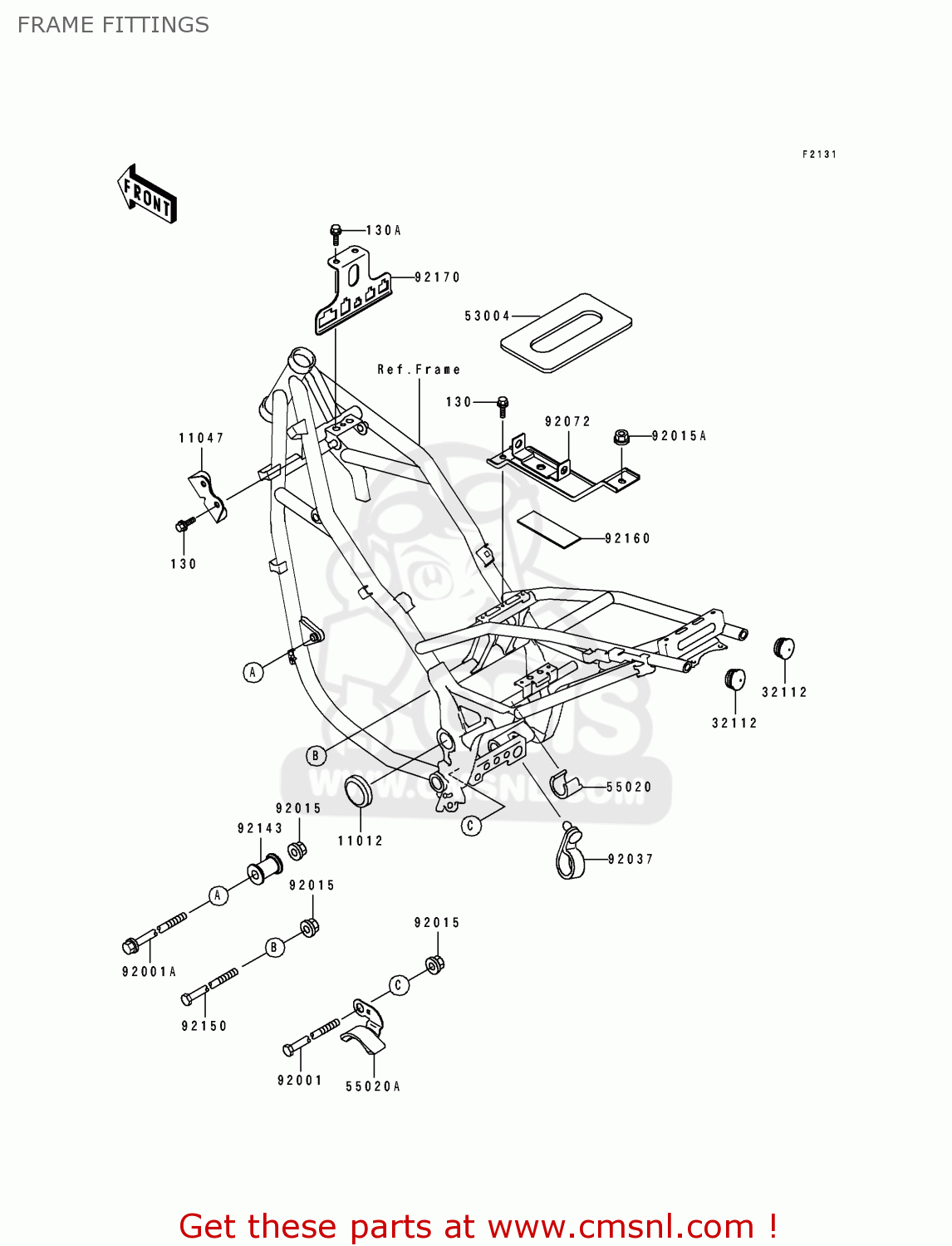

Frame fittings diagram KLE500A4 1994 EUROPE UK FR NL AR FG GR IT NR SP ST

prices are in EUR

ref

part #

description

quantity

130

130D0610
ref: 130

BOLT-FLANGED

€ 0.50

130A

130J0614
ref: 130A

BOLT-FLANGED,6X14,BLA

€ 1.50

11012

110121459
ref: 11012

CAP,SWING ARM BRACKET

€ 7.00

11047

110471359
ref: 11047

BRACKET,THERMOSTAT

€ 5.50

32112

32112008
ref: 32112

PLUG,22X3

€ 3.00

53004

530041083
ref: 53004

MAT,BATTERY

€ 17.00

55020

550201045
ref: 55020

GUARD,CHAIN

€ 6.50

55020A

550201414
ref: 55020A

GUARD,CHAIN

€ 10.50

92001

920011541
ref: 92001

BOLT,10X179

€ 11.00

92001A

920011988
ref: 92001A

BOLT,FLANGED,10X270

€ 12.00

92015

920151180
ref: 92015

NUT,FLANGED,10MM,BLAC

€ 2.50

92015A

920151367
ref: 92015A

NUT,FLANGED,6MM

€ 0.50

92037

920371903
ref: 92037

CLAMP

€ 5.00

92072

920721280
ref: 92072

BAND,BATTERY

€ 26.00

92143

921431276
ref: 92143

COLLAR,L=34

€ 11.00

92150

921501222
ref: 92150

BOLT,10X165

€ 9.50

92160

921601323
ref: 92160

DAMPER,BATTERY BAND

€ 2.50

92170

921701271
ref: 92170

CLAMP,HARNESS COUPLER

€ 13.00
