COWLING(KLE500-A4)

KLE500A4 1994 EUROPE UK FR NL AR FG GR IT NR SP ST

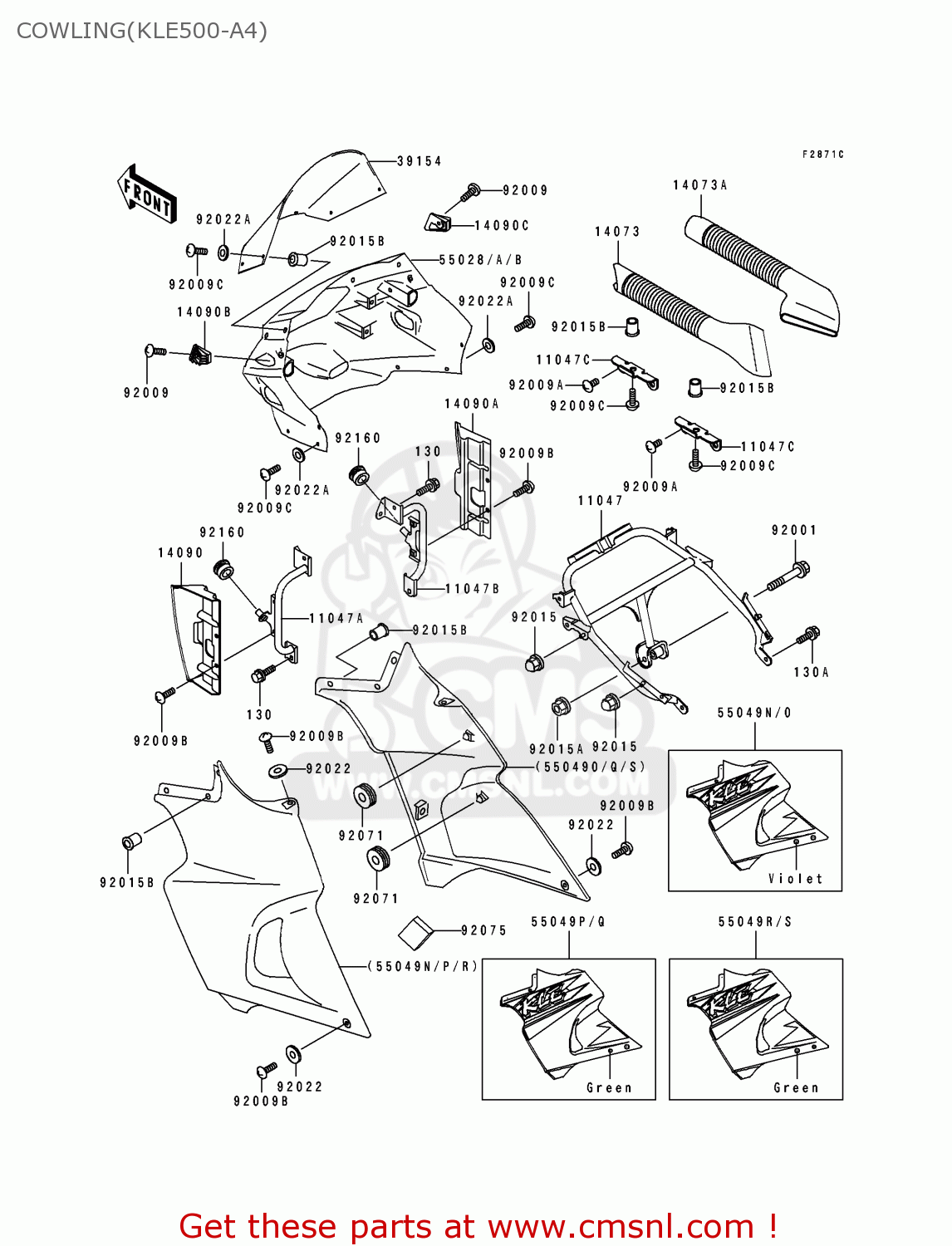

Cowling(kle500-a4) diagram KLE500A4 1994 EUROPE UK FR NL AR FG GR IT NR SP ST

COWLING(KLE500-A4) KLE500A4 1994 EUROPE UK FR NL AR FG GR IT NR SP ST
COWLING(KLE500-A4) KLE500A4 1994 EUROPE UK FR NL AR FG GR IT NR SP ST
COWLING(KLE500-A4) KLE500A4 1994 EUROPE UK FR NL AR FG GR IT NR SP ST
prices are in EUR
ref
part #
description
quantity
11047
110471356
ref: 11047
BRACKET,UPP COWLING
110471356
€ 145.50
11047A
110471357
ref: 11047A
BRACKET,SIDE COWLING,
110471357
€ 47.00
11047B
110471358
ref: 11047B
BRACKET,SIDE COWLING,
110471358
€ 47.00
11047C
110471390
ref: 11047C
BRACKET,DUCT
110471390
€ 5.00
14073
140731486
ref: 14073
DUCT,LH
140731486
€ 30.00
14073A
140731487
ref: 14073A
DUCT,RH
140731487
€ 32.50
14090
140901100
ref: 14090
COVER,SIDE COWLING,LH
140901100
€ 35.00
14090A
140901101
ref: 14090A
COVER,SIDE COWLING,RH
140901101
€ 35.00
14090B
140901439
ref: 14090B
COVER,UPP COWLING,LH
140901439
€ 4.50
14090C
140901440
ref: 14090C
COVER,UPP COWLING,RH
140901440
€ 4.50
39154
391541127
ref: 39154
WINDSHIELD
391541127
€ 69.00
55028
550281325KJ
ref: 55028
AREUFGSP
COWLING,UPP,VIOLET/BL
€ 143.00
55028A
550281325RY
ref: 55028A
AREUFGFRGRITNLSTUK
COWLING,UPP,GREEN/BLA
€ 157.50
55028B
5502813251E
ref: 55028B
AREUFRGRITNLSPSTUK
COWLING,UPP,GREEN/BLA
€ 162.50
55049N
550495308JW
ref: 55049N
AREUFGSP
COWLING.,SIDE,LH,VIOL
€ 332.00
55049O
550495309JW
ref: 55049O
AREUFGSP
COWLING.,SIDE,RH,VIOL
€ 344.50
55049P
550495310SM
ref: 55049P
AREUFGFRGRITNLSTUK
COWLING.,SIDE,LH,M.T.
€ 338.50
55049Q
550495311SM
ref: 55049Q
AREUFGFRGRITNLSTUK
COWLING.,SIDE,RH,M.T.
€ 374.50
55049R
55049531293
ref: 55049R
AREUFRGRITNLSPSTUK
COWLING.,SIDE,LH,M.M.
€ 333.50
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
130A
130J0614
ref: 130A
BOLT-FLANGED,6X14,BLA
130J0614
€ 1.50
55049S
55049531393
ref: 55049S
AREUFRGRITNLSPSTUK
COWLING.,SIDE,RH,M.M.
€ 333.50
92001
920011614
ref: 92001
BOLT,FLANGED,8X50
920011614
€ 3.50
92009
920091288
ref: 92009
SCREW,6X14
920091288
€ 2.00
92009A
920091530
ref: 92009A
SCREW,6X10
920091530
€ 2.50
92009B
920091611
ref: 92009B
SCREW,6X14
920091611
€ 2.50
92009C
920091654
ref: 92009C
SCREW
920091654
€ 0.50
92015
920151170
ref: 92015
NUT,CAP 6MM,BLACK
920151170
€ 0.50
92015A
920151183
ref: 92015A
NUT,FLANGED,8MM,BLACK
€ 1.00
92015B
920151757A
ref: 92015B
NUT,5MM
920151757A
€ 5.00
92022
920221143
ref: 92022
WASHER,6.5X16X1
920221143
€ 2.50
92022A
920221521
ref: 92022A
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92071
92071056
ref: 92071
GROMMET
92071056
€ 2.50
92075
920751925
ref: 92075
DAMPER
920751925
€ 5.50
92160
921601141
ref: 92160
DAMPER
921601141
€ 3.00
