SEAT

KLE500A10 2000 IS

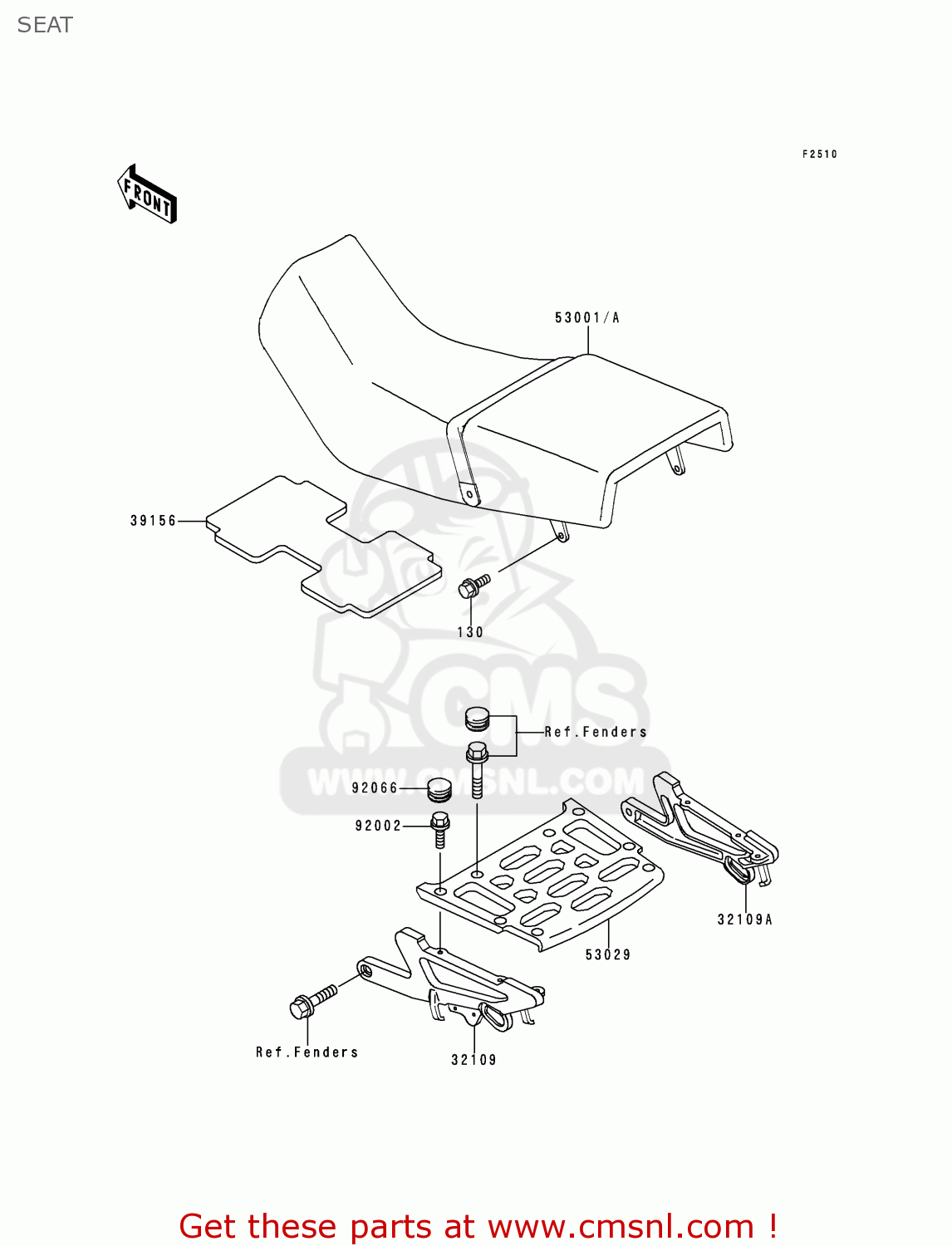

Seat diagram KLE500A10 2000 IS

SEAT KLE500A10 2000 IS

SEAT KLE500A10 2000 IS

prices are in EUR

ref

part #

description

quantity

130

130H0612
ref: 130

BOLT-FLANGED,6X12

€ 0.50

32109

321091225
ref: 32109

GRIP-FRAME,LH

€ 205.50

32109A

321091226
ref: 32109A

GRIP-FRAME,RH

€ 81.00

39156

391561554
ref: 39156

PAD,SEAT

€ 15.50

53001

530011908K7
ref: 53001

SEAT-ASSY,DUAL,S.M.BR

€ 401.00

53001A

530011908MW
ref: 53001A

SEAT-ASSY,BLACK

€ 382.00

53029

530291130
ref: 53029

CARRIER

€ 124.00

92002

920021933
ref: 92002

BOLT

€ 3.00

92066

920661115
ref: 92066

PLUG

€ 3.50
