HEADLIGHT(S)

KLE500A10 2000 IS

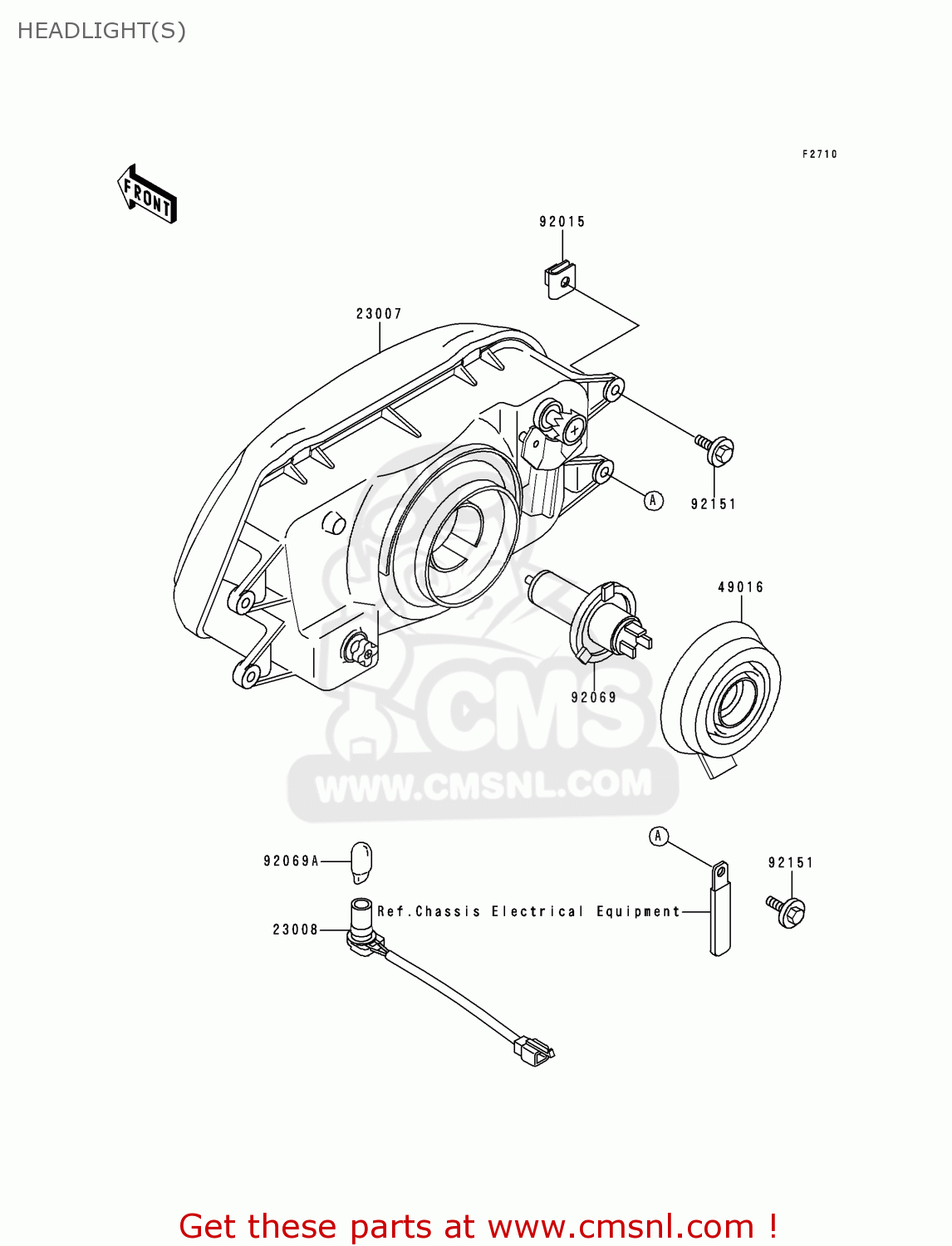

Headlight(s) diagram KLE500A10 2000 IS

HEADLIGHT(S) KLE500A10 2000 IS

HEADLIGHT(S) KLE500A10 2000 IS

prices are in EUR

ref

part #

description

quantity

23007

230071257
ref: 23007

LENS-COMP,HEAD LAMP

€ 104.00

23008

230081472
ref: 23008

SOCKET-ASSY,HEAD LAMP

€ 17.50

49016

490161137
ref: 49016

COVER-SEAL,HEAD LAMP

€ 10.50

92015

920151094
ref: 92015

NUT,MUFFLER

€ 5.50

92069

920691002
ref: 92069

BULB,12V-60155W

€ 15.00

92069A

920691016
ref: 92069A

BULB,12V 5W

€ 4.00

92151

921511241
ref: 92151

BOLT

€ 3.00
