FUEL TANK
KLE500A10 2000 IS

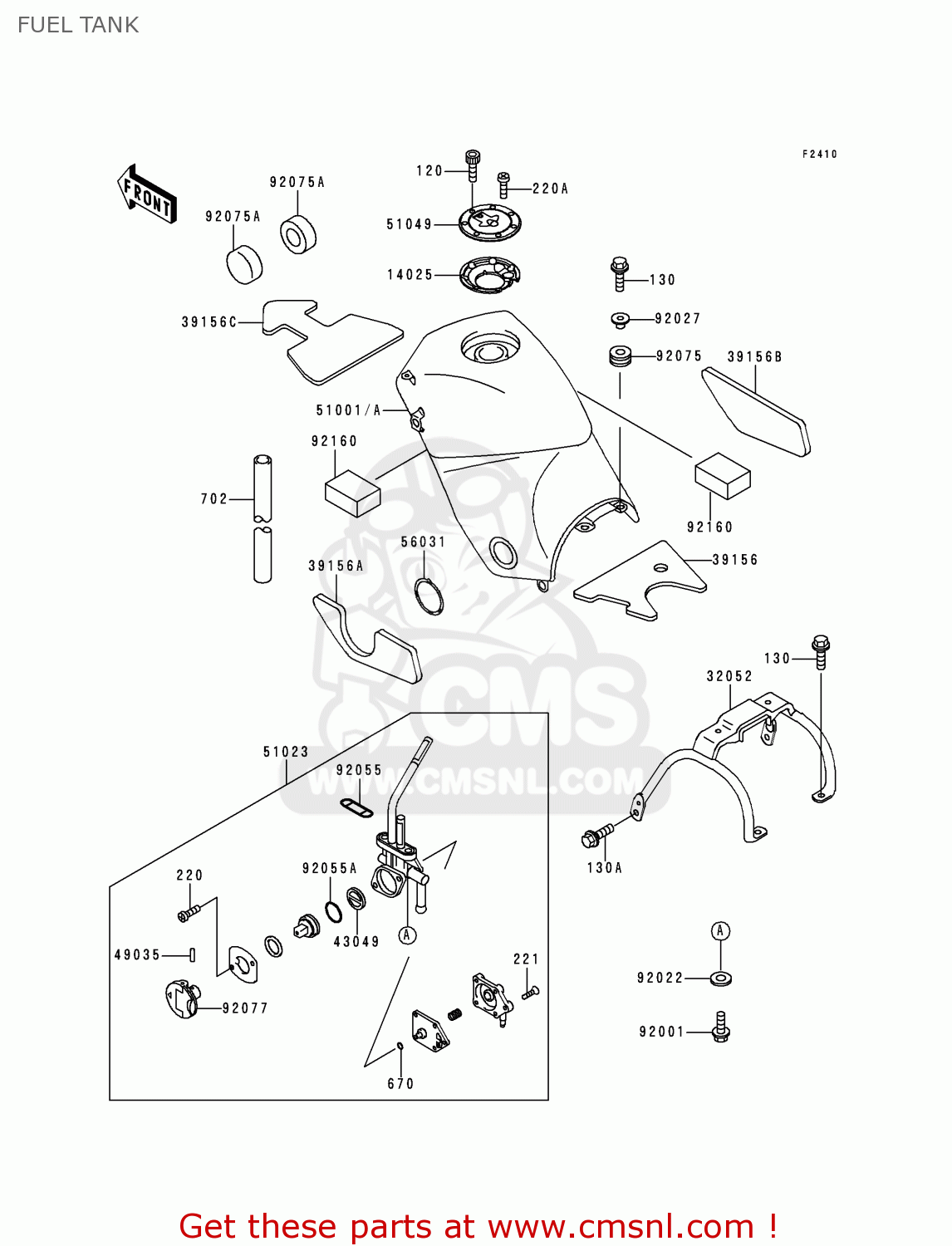

Fuel tank diagram KLE500A10 2000 IS
FUEL TANK KLE500A10 2000 IS
×
prices are in EUR
ref
part #
description
quantity
120
120S0512
ref: 120
BOLT-SOCKET
€ 1.00
130
130G0618
ref: 130
BOLT-FLANGED,6X18
€ 1.00
130A
130J0612
ref: 130A
BOLT-FLANGED,6X12,BLA
€ 1.50
220
220B0308
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220C0508
ref: 220A
SCREW-PAN-CROS
€ 1.00
221
221B0414
ref: 221
SCREW-CSR-CROS,4X14
€ 2.50
14025
140251913
ref: 14025
COVER,TANK CAP
€ 13.50
32052
320521336
ref: 32052
BRACKET-TANK,RR
€ 66.50
39156
391561549
ref: 39156
PAD,FUEL TANK,CNT,RR
€ 8.50
39156A
391561550
ref: 39156A
PAD,FUEL TANK,LH
€ 4.00
39156B
391561551
ref: 39156B
PAD,FUEL TANK,RH
€ 4.00
39156C
391561552
ref: 39156C
PAD,FUEL TANK,CNT,FR
€ 16.00
43049
430491066
ref: 43049
PACKING,TAP VALVE (NAS)
€ 5.00
49035
490351053
ref: 49035
PIN-SPRING,3.1X14
€ 3.50
51001
510011407C8
ref: 51001
TANK-COMP-FUEL,RED/GR
€ 513.50
51001A
5100114074B
ref: 51001A
TANK-COMP-FUEL,GOLD/W
€ 529.50
51023
510231177
ref: 51023
TAP-ASSY,FUEL
€ 125.50
51049
510491091
ref: 51049
CAP-TANK,FUEL
€ 88.00
56031
560311791
ref: 56031
LABEL-MANUAL,FUEL TAP
€ 6.00
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
€ 2.50
92022
92022183
ref: 92022
WASHER,6.2X11X1.5
€ 2.50
92027
920271767
ref: 92027
COLLAR
€ 3.50
92055
920551112
ref: 92055
RING-/,FUEL TAP PACKI
€ 3.00
92055A
920551419
ref: 92055A
RING-O,TAP LEVER
€ 3.00
92075
92075076
ref: 92075
DAMPER
€ 3.00
92075A
920751115
ref: 92075A
DAMPER,FUEL TANK FRON
€ 4.00
92077
920771099
ref: 92077
KNOB,FUEL TAP
€ 28.50
92160
921601769
ref: 92160
DAMPER
€ 3.50
670
670B1504
ref: 670
O RING,4MM
€ 2.50
702
702A05650
ref: 702
TUBE, 5X1430
€ 50.00
