RADIATOR
KL650C6 KLR650 2000 CANADA

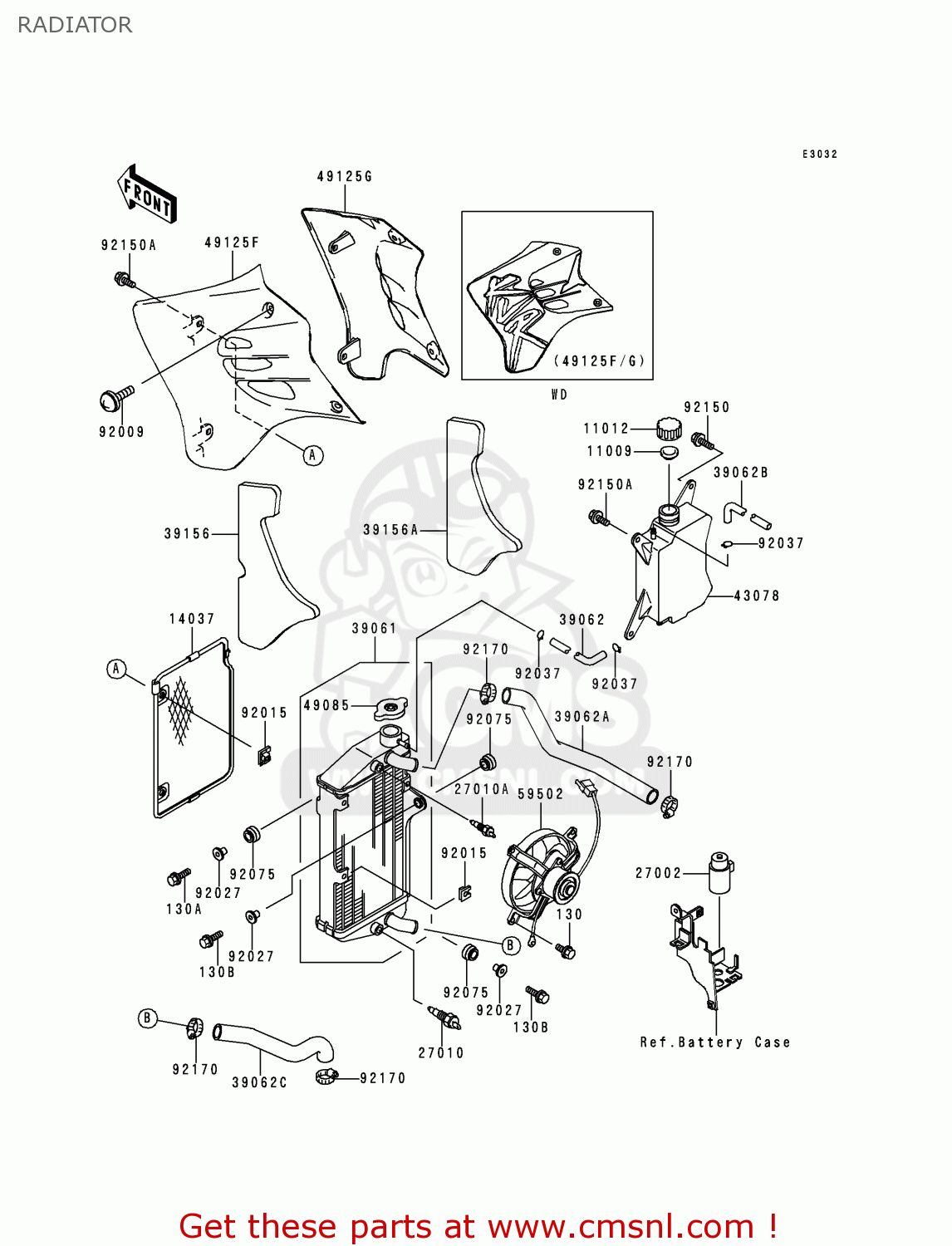

Radiator diagram KL650C6 KLR650 2000 CANADA
RADIATOR KL650C6 KLR650 2000 CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
€ 1.50
130A
130J0620
ref: 130A
BOLT-FLANGED,6X20
€ 2.50
130B
130J0625
ref: 130B
BOLT-FLANGED,6X25
€ 2.00
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11012
110121084
ref: 11012
CAP
€ 1.50
14037
140371208
ref: 14037
SCREEN
€ 69.50
27002
270021051
ref: 27002
RELAY-ASSY
€ 32.00
27010
270101167
ref: 27010
SWITCH,FAN
€ 108.50
27010A
270101305
ref: 27010A
SWITCH
€ 60.00
39061
390611214
ref: 39061
RADIATOR-ASSY
€ 653.50
39062
390621125
ref: 39062
HOSE-COOLING
€ 17.50
39062A
390621217
ref: 39062A
HOSE-COOLING,HEAD-RAD
€ 35.00
39062B
390621220
ref: 39062B
HOSE-COOLING,RESERVOI
€ 17.50
39062C
390621243
ref: 39062C
HOSE-COOLING,RADIATOR
€ 23.50
39156
391561472
ref: 39156
PAD,LH
€ 11.50
39156A
391561473
ref: 39156A
PAD,RH
€ 10.00
43078
430781083
ref: 43078
RESERVOIR
€ 45.50
49085
490851066
ref: 49085
CAP-ASSY-PRESSURE
€ 23.50
49125F
4912550236W
ref: 49125F
SHROUD,LH,L.GREEN
€ 111.50
49125G
4912550246W
ref: 49125G
SHROUD,RH,L.GREEN
€ 107.50
59502
595021082
ref: 59502
FAN-ASSY
€ 483.00
92009
920091286
ref: 92009
SCREW,6X10
€ 2.50
92015
920151487
ref: 92015
NUT
€ 3.00
92027
920271920
ref: 92027
COLLAR
€ 4.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92075
920751352
ref: 92075
DAMPER,RADIATOR
€ 4.00
92150
921501339
ref: 92150
BOLT,6X20
€ 2.50
92150A
921501506
ref: 92150A
BOLT
€ 3.00
92170
921701033
ref: 92170
CLAMP,COOLING HOSE
€ 10.50
