Genuine KL Kawasaki Parts delivered quickly!


BATTERY CASE

KL650C6 KLR650 2000 CANADA

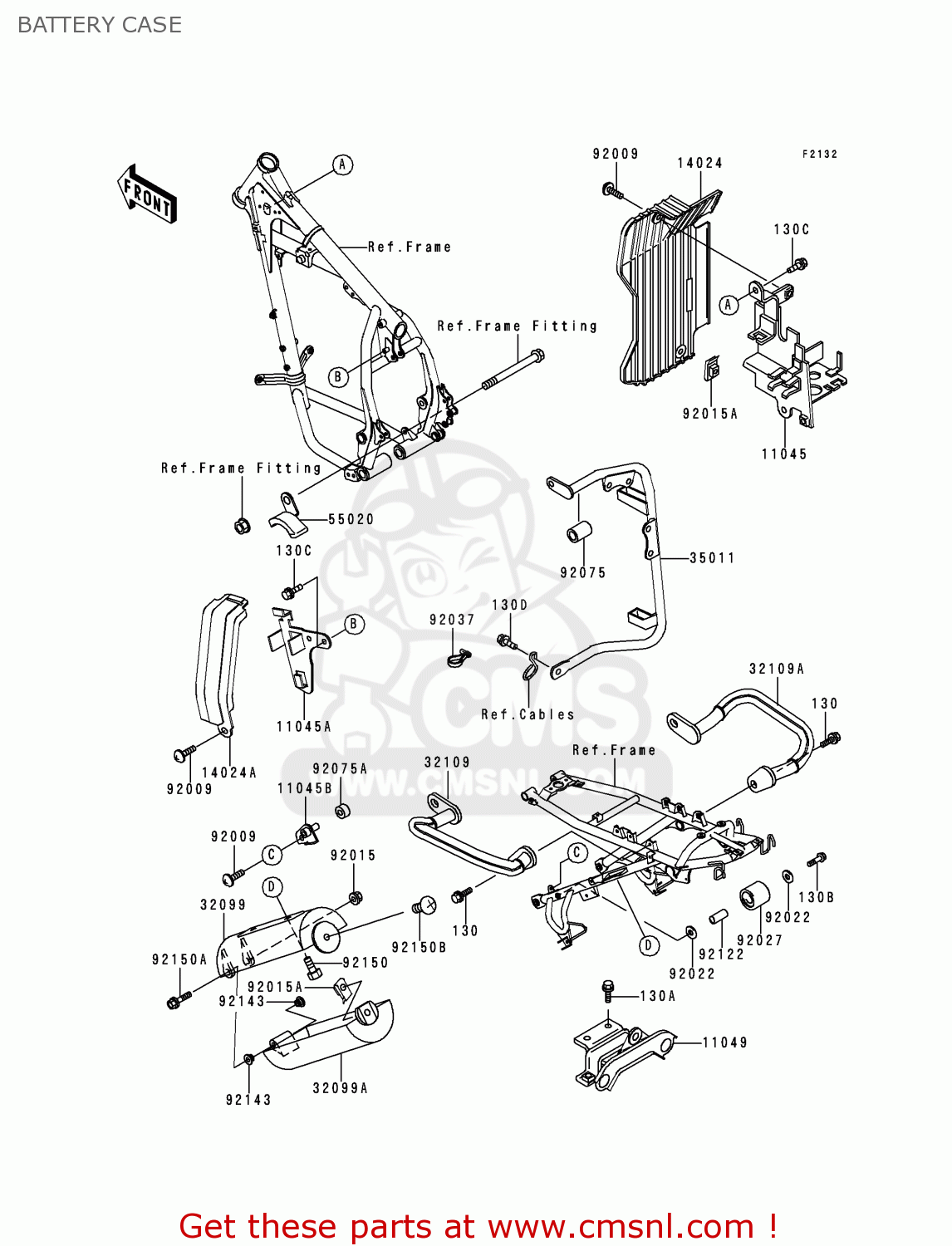

Battery case diagram KL650C6 KLR650 2000 CANADA

BATTERY CASE KL650C6 KLR650 2000 CANADA
BATTERY CASE KL650C6 KLR650 2000 CANADA
BATTERY CASE KL650C6 KLR650 2000 CANADA
prices are in EUR
ref
part #
description
quantity
130
130G0814
ref: 130
BOLT,FLANGED,8X14
130G0814
€ 0.50
130A
130H0610
ref: 130A
BOLT-FLANGED,6X10
€ 0.50
130B
130H0845
ref: 130B
BOLT-FLANGED
130H0845
€ 1.00
130C
130J0612
ref: 130C
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
130D
130J0614
ref: 130D
BOLT-FLANGED,6X14,BLA
130J0614
€ 1.50
11045
110451358
ref: 11045
BRACKET,ELECTRIC,RH
110451358
€ 40.50
11045A
110451359
ref: 11045A
BRACKET,ELECTRIC,LH
110451359
€ 10.50
11045B
110451360
ref: 11045B
BRACKET
€ 18.00
11049
110491216
ref: 11049
BRACKET,FLAP
€ 15.50
14024
140241372
ref: 14024
COVER,FRONT RESERVOIR
140241372
€ 52.50
14024A
140241373
ref: 14024A
COVER,SIDE STAND SWIT
140241373
€ 27.00
32099
320991184
ref: 32099
CASE,TOOL,BODY
320991184
€ 26.50
32099A
320991185
ref: 32099A
CASE,TOOL,CAP
320991185
€ 26.50
32109
321091250
ref: 32109
GRIP-FRAME,LH
321091250
€ 41.00
32109A
321091251
ref: 32109A
GRIP-FRAME,RH
€ 41.00
35011
350111370
ref: 35011
STAY,HORN&RESERVOIR T
350111370
€ 52.50
55020
550201266
ref: 55020
GUARD,CHAIN
550201266
€ 30.50
92009
920091288
ref: 92009
SCREW,6X14
920091288
€ 2.00
92015
920151221
ref: 92015
NUT,LOCK,5MM
920151221
€ 4.00
92015A
920151602
ref: 92015A
NUT,6MM
920151602
€ 4.50
92022
920221561
ref: 92022
WASHER,8.5X20X1.6
920221561
€ 2.50
92027
920271670
ref: 92027
COLLAR,CHAIN ROLLER
920271670
€ 4.50
92037
920371903
ref: 92037
CLAMP
920371903
€ 5.00
92075
920751941
ref: 92075
DAMPER
920751941
€ 4.00
92075A
92075243
ref: 92075A
DAMPER RUBBER
92075243
€ 4.50
92122
921221153
ref: 92122
ROLLER,CHAIN GUIDE
921221153
€ 7.00
92143
921431234
ref: 92143
COLLAR
921431234
€ 2.50
92150
921501392
ref: 92150
BOLT
921501392
€ 3.00
92150A
921501590
ref: 92150A
BOLT,ADJUST,5X45
921501590
€ 4.50
92150B
921503732
ref: 92150B
BOLT,6X14
921503732
€ 8.50
