CRANKCASE
KL650C6 KLR650 2000 CANADA

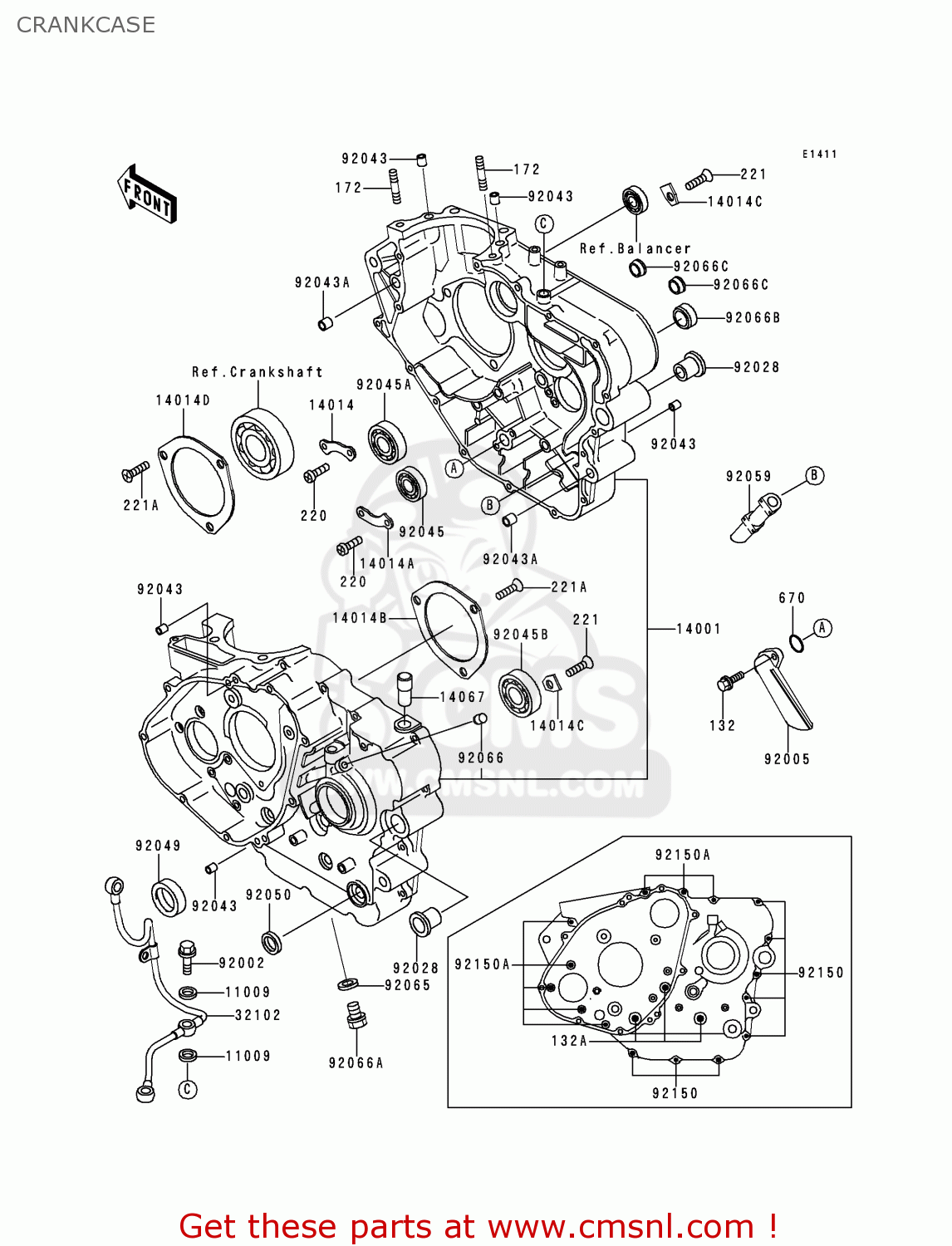

Crankcase diagram KL650C6 KLR650 2000 CANADA
CRANKCASE KL650C6 KLR650 2000 CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132J0880
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
172
172G0822
ref: 172
BOLT-STUD,8X22
€ 1.50
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
€ 1.00
221
221B0612
ref: 221
SCREW-CNTSNK HD,6X12
€ 1.50
221A
221B0616
ref: 221A
SCREW-CNTSNK HD,6X16
€ 0.50
670
670D2018
ref: 670
O RING,18MM
€ 1.50
11009
110091105
ref: 11009
GASKET,10X14.5X1.5 (NAS)
€ 4.00
14001
140015340
ref: 14001
SET-CRANKCASE
€ 1,443.50
14014
14014037
ref: 14014
PLATE-POSITION
€ 2.50
14014A
140141015
ref: 14014A
PLATE-POSITION
€ 3.50
14014B
140141051
ref: 14014B
PLATE-POSITION
€ 26.00
14014C
140141057
ref: 14014C
PLATE-POSITION
€ 2.50
14014D
140141083
ref: 14014D
PLATE-POSITION
€ 26.00
14067
14067006
ref: 14067
BREATHER JOINT
€ 14.00
32102
321021353
ref: 32102
PIPE
€ 84.50
92002
920021170
ref: 92002
BOLT,BANJO,10X25
€ 6.50
92005
920051152
ref: 92005
FITTING
€ 22.00
92028
920281261
ref: 92028
BUSHING,SWING ARM
€ 12.00
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
€ 0.50
92043A
920431279
ref: 92043A
PIN,11.5X14X14
€ 3.00
92045
92045036
ref: 92045
BEARING-BALL,#6905
€ 29.00
92045A
920451105
ref: 92045A
BEARING-BALL,TMB205
€ 25.00
92045B
920451127
ref: 92045B
BEARING-BALL,TM-SX059
€ 47.00
92049
920491159
ref: 92049
SEAL-OIL,TC32457
€ 8.00
92050
92050082
ref: 92050
OIL SEAL,CHANGE SHAFT
€ 5.50
92059
920591833
ref: 92059
TUBE
€ 10.00
92065
92065097
ref: 92065
GASKET,DRAIN PLUG BOL (NAS)
€ 1.00
92066
920661012
ref: 92066
PLUG,OIL LINE,7.2X8
€ 4.00
92066A
920661174
ref: 92066A
PLUG,OIL DRAIN,12X15
€ 4.00
92066B
920661264
ref: 92066B
PLUG,RCA207
€ 5.50
92066C
920661282
ref: 92066C
PLUG
€ 4.00
92150
921501021
ref: 92150
BOLT,6X30
€ 2.50
92150A
921501968
ref: 92150A
BOLT
€ 3.00
