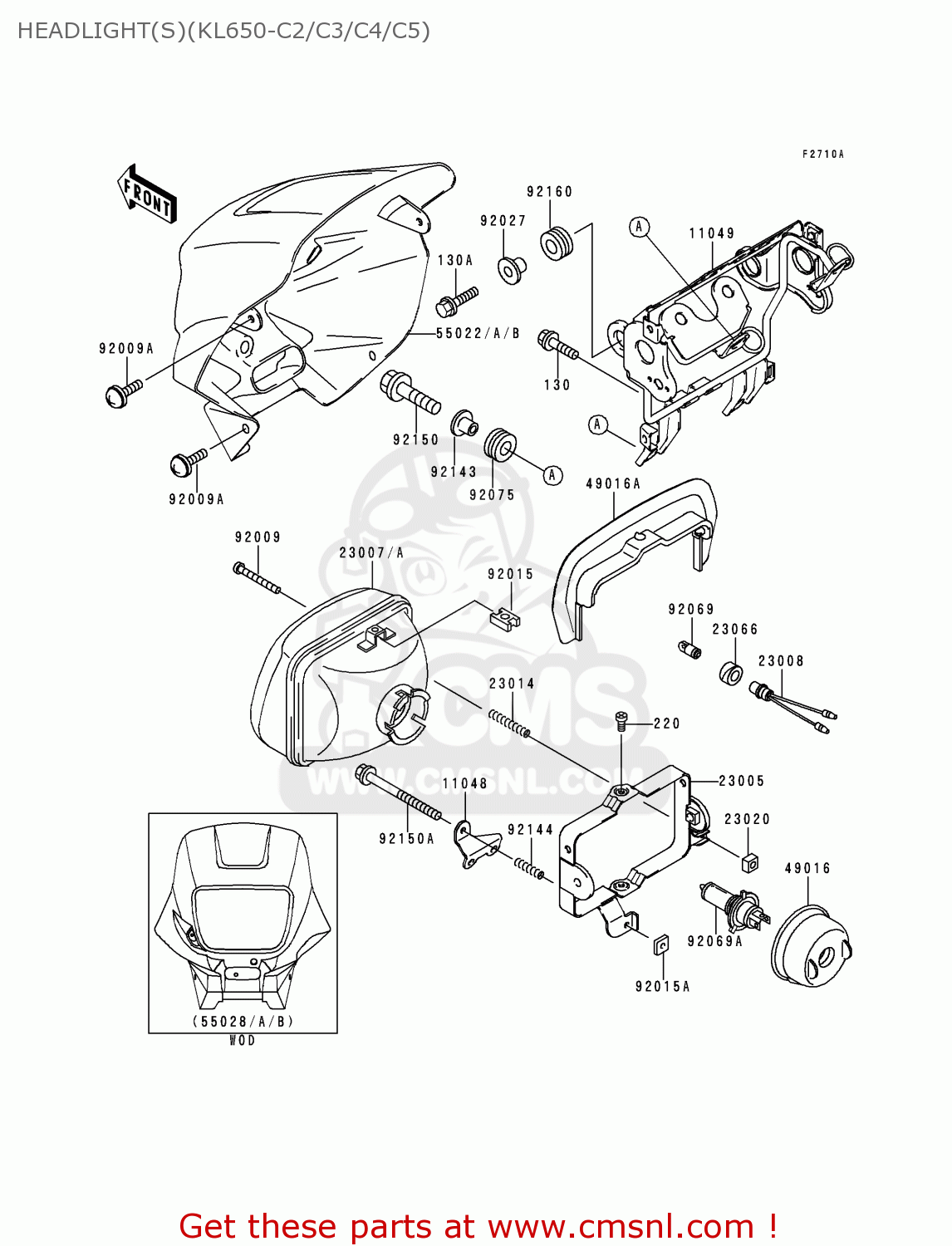

HEADLIGHT(S)(KL650-C2/C3/C4/C5)

ref

part #

description

quantity

130

130J0612
ref: 130

BOLT-FLANGED,6X12,BLA

€ 1.50

130A

130J0825
ref: 130A

BOLT-FLANGED,8X25,BLA

€ 2.00

220

220B0508
ref: 220

SCREW-PAN-CROS,5X8

€ 0.50

11048

110481892
ref: 11048

BRACKET,HEAD LAMP STA

€ 6.50

11049

110491269
ref: 11049

BRACKET,HEAD LAMP

€ 98.50

23005

230051148
ref: 23005

BODY-COMP-HEAD LAMP

€ 52.00

23007

230071325
ref: 23007
AREUFGGRITNLSDST

LENS-COMP,HEAD LAMP

€ 101.50

23007A

230071331
ref: 23007A
UK

LENS-COMP,HEAD LAMP

€ 143.50

23008

23008038
ref: 23008

SOCKET-ASSY,PARKING L

€ 7.50

23014

23014005
ref: 23014

SPRING-FOCUS ADJUST

€ 2.50

23020

23020018
ref: 23020

NUT,4MM,FOCUS ADJUST

€ 3.00

23066

23066008
ref: 23066

DAMPER,PARKING LAMP

€ 3.00

49016

490161037
ref: 49016

COVER-SEAL,SOCKET

€ 7.50

49016A

490161160
ref: 49016A

COVER-SEAL, HEAD LAMP

€ 22.50

55022A

5502210776C
ref: 55022A
AREUFGGRNLSTUK

COVER-HEAD LAMP,EBONY

€ 77.50

55022B

5502210776W
ref: 55022B

COVER-HEAD LAMP,L.GRE

€ 79.50

92009

920091065
ref: 92009

SCREW,4MM

€ 3.00

92009A

920091286
ref: 92009A

SCREW,6X10

€ 2.50

92015

920151354
ref: 92015

NUT,5MM

€ 3.50

92015A

920151799
ref: 92015A

NUT,5MM,FOCUS ADJUST

€ 3.00

92027

920271134
ref: 92027

COLLAR,FUEL TANK FITT

€ 7.00

92069

92069071
ref: 92069

BULB,12V 4W

€ 4.50

92069A

920691002
ref: 92069A

BULB,12V-60155W

€ 15.00

92075

92075209
ref: 92075

DAMPER RUBBER

€ 3.00

92143

921431353
ref: 92143

COLLAR

€ 5.50

92144

921441417
ref: 92144

SPRING

€ 3.00

92150

921501086
ref: 92150

BOLT,6X22

€ 2.50

92150A

921501590
ref: 92150A

BOLT,ADJUST,5X45

€ 4.50

92160

921601007
ref: 92160

DAMPER

€ 3.50

all assemblies
