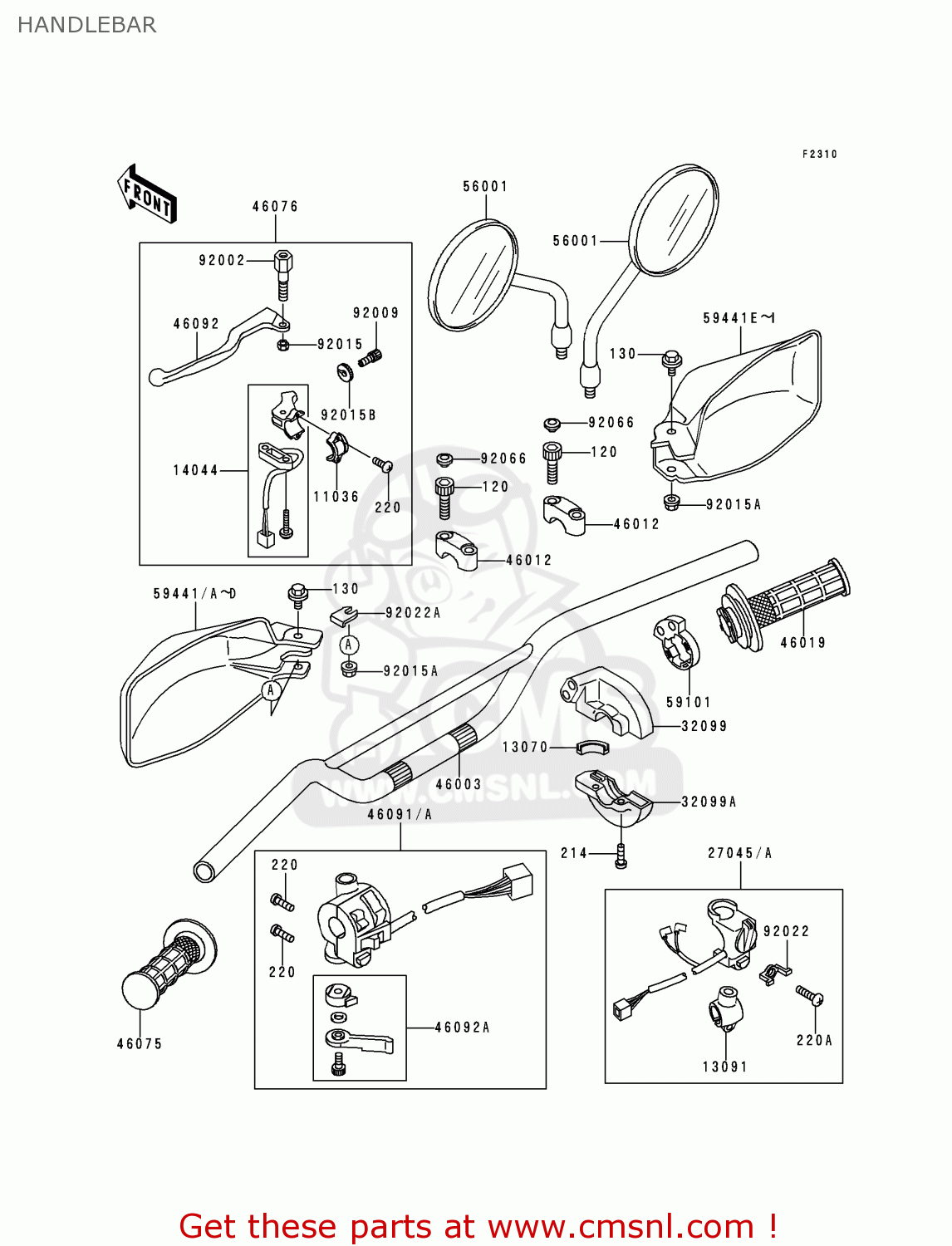

HANDLEBAR

ref

part #

description

quantity

11036

110361297
ref: 11036

BRACKET-A,LEVER HOLDE

€ 12.00

13070

130701131
ref: 13070

GUIDE,THROTTLE PEACE

€ 5.50

13091

130911255
ref: 13091

HOLDER,ENGINE STOP SW

€ 55.00

14044

140441062
ref: 14044

HOLDER-CABLE,CLUTCH

€ 76.50

27045

270451052
ref: 27045

SWITCH-ASSY,ENGINE ST

€ 62.50

32099

320991072
ref: 32099

CASE,THROTTLE,UPP

€ 22.50

32099A

320991073
ref: 32099A

CASE,THROTTLE,LWR

€ 22.50

46003

460031413TX
ref: 46003

HANDLE,SILVER NO.35

€ 104.00

46012

460121265
ref: 46012

HOLDER-HANDLE,UPP

€ 18.00

46019

460191054
ref: 46019

GRIP-ASSY,THROTTLE

€ 27.50

46075

460751051
ref: 46075

GRIP,LH

€ 14.50

46076

460761197
ref: 46076

LEVER-ASSY-GRIP,CLUTC

€ 57.00

46091

460911418
ref: 46091

HOUSING-ASSY-CONTROL,

€ 155.00

46092

460921111
ref: 46092

LEVER-GRIP,CLUTCH

€ 13.00

46092A

460921123
ref: 46092A

LEVER-GRIP,CHOKE

€ 10.00

56001

560011437
ref: 56001

MIRROR-ASSY

€ 45.50

59101

591011106
ref: 59101

REEL,THROTTLE

€ 10.00

59441A

5944110926C
ref: 59441A
AREUFGGRNLSTUK

COVER-HANDLE,LH,EBONY

€ 20.00

59441D

5944110926W
ref: 59441D

COVER-HANDLE,LH,L.GRE

€ 22.00

59441F

5944110936C
ref: 59441F
AREUFGGRNLSTUK

COVER-HANDLE,RH,EBONY

€ 18.00

59441I

5944110936W
ref: 59441I

COVER-HANDLE,RH,L.GRE

€ 22.00

92002

920021880
ref: 92002

BOLT,LEVER SET

€ 14.50

92009

920091741
ref: 92009

SCREW

€ 12.50

92015

920151191
ref: 92015

NUT,LOCK,6MM,BLACK

€ 2.00

92015A

920151603
ref: 92015A

NUT

€ 3.00

120

120S0830
ref: 120

BOLT-SOCKET,8X30,BLAC

€ 3.00

130

130J0612
ref: 130

BOLT-FLANGED,6X12,BLA

€ 1.50

214

214C0518
ref: 214

SCREW-PAN+-

€ 2.00

220

220C0514
ref: 220

SCREW-PAN-CROS

€ 1.00

220A

220C0620
ref: 220A

SCREW-PAN-CROS,6X20,B

€ 1.50

92015B

920151966
ref: 92015B

NUT

€ 6.00

92022

920221474
ref: 92022

WASHER,ENGINE STOP SW

€ 2.50

92022A

920221896
ref: 92022A

WASHER

€ 2.50

92066

920661281
ref: 92066

PLUG

€ 3.00

all assemblies
