CRANKSHAFT

KL650C3 KLR650 1997 EUROPE UK NL AR FG GR IT SD ST

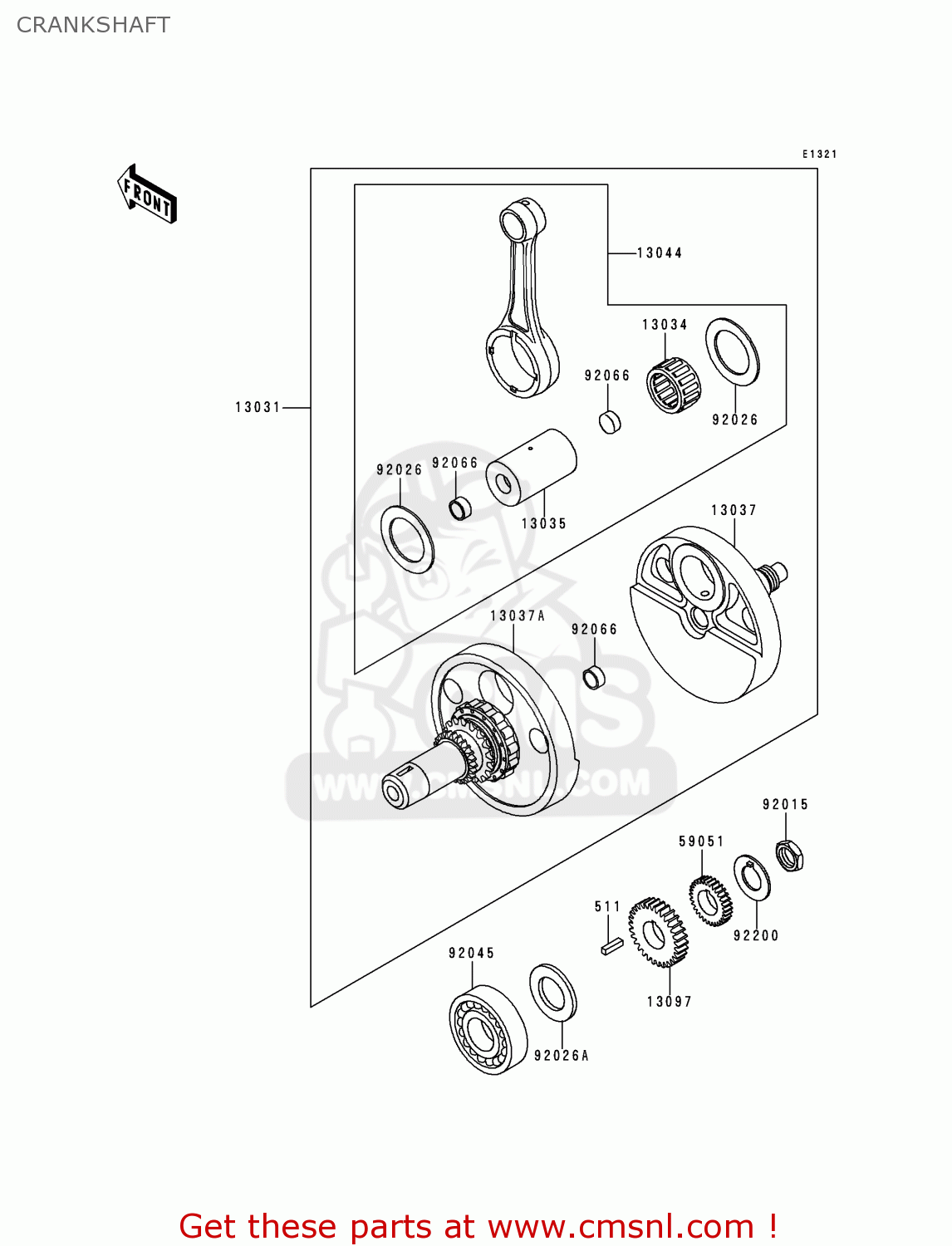

Crankshaft diagram KL650C3 KLR650 1997 EUROPE UK NL AR FG GR IT SD ST

prices are in EUR

ref

part #

description

quantity

511

511A0520
ref: 511

KEY-SUNK

€ 1.50

13031

130311396
ref: 13031

CRANKSHAFT-COMP

€ 1,272.50

13034

130341084
ref: 13034

BEARING-BIG END

€ 67.00

13035

130351066
ref: 13035

PIN-CRANK

€ 61.50

13037

130371516
ref: 13037

CRANKSHAFT,RH

€ 613.50

13037A

130375088
ref: 13037A

CRANKSHAFT,LH

€ 643.00

13044

130445073
ref: 13044

SET-CONNECTING ROD

€ 270.50

13097

130971333
ref: 13097

GEAR-PRIMARY SPUR,33T

€ 54.00

59051

590511145
ref: 59051

GEAR-SPUR,29T

€ 41.50

92015

920151890
ref: 92015

NUT,22MM

€ 9.50

92026

920261279
ref: 92026

SPACER,40X60X1.5

€ 13.50

92026A

920261280
ref: 92026A

SPACER,30X50X4

€ 12.50

92045

920451187
ref: 92045

BEARING-BALL,TM-SX08A

€ 122.00

92066

920661154
ref: 92066

PLUG

€ 3.00

92200

922001157
ref: 92200

WASHER,CLAW

€ 4.00
