SIDE COVER/CHAIN CASE

KL650B3 TENGAI 1991 EUROPE UK FR AR FG GR SD ST

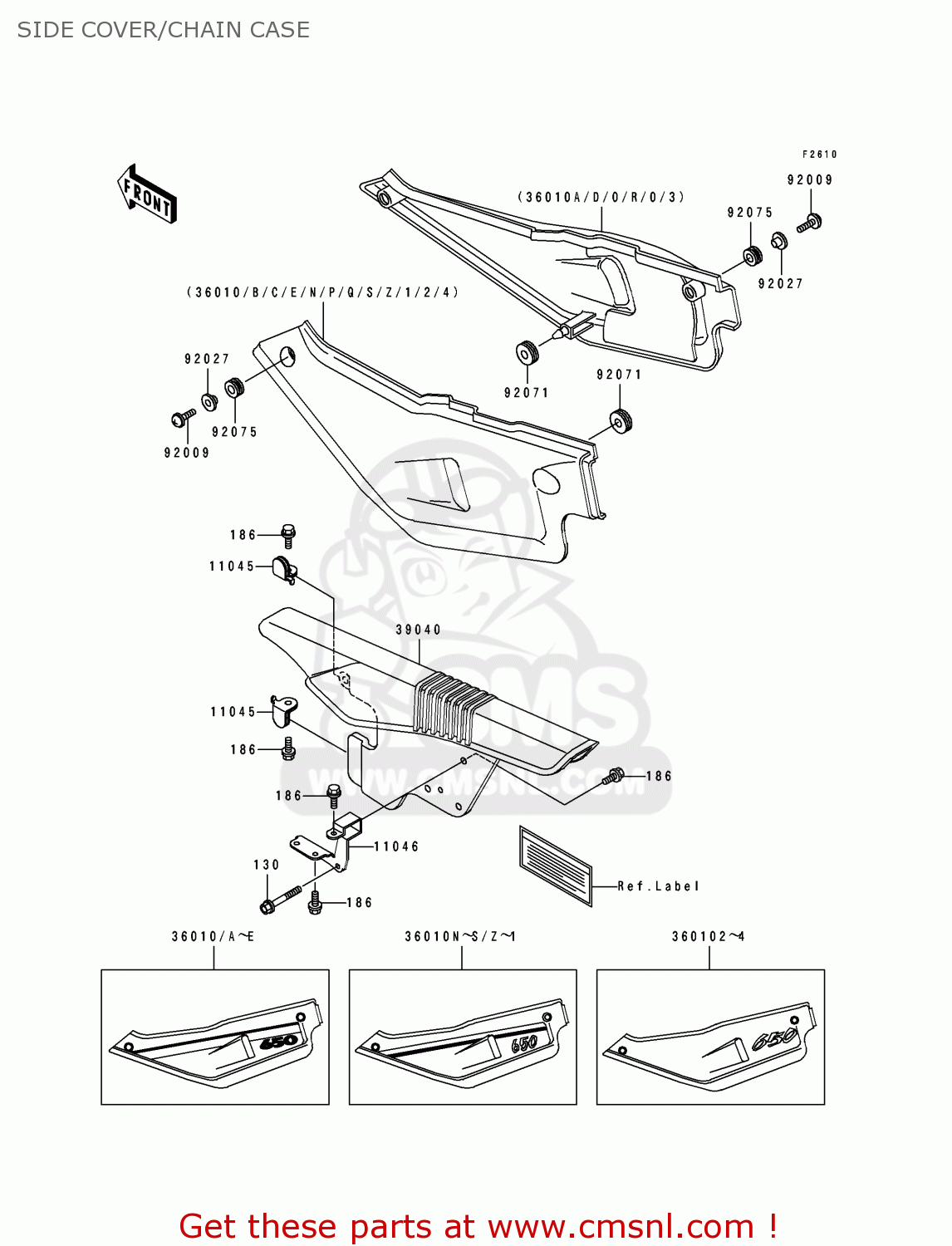

Side cover/chain case diagram KL650B3 TENGAI 1991 EUROPE UK FR AR FG GR SD ST

prices are in EUR

ref

part #

description

quantity

11045

110451335
ref: 11045

BRACKET,CHAIN CASE,FR

€ 7.00

11046

110461391
ref: 11046

BRACKET,CHAIN CASE,RR

€ 9.00

130

130H0640
ref: 130

BOLT-FLANGED

€ 0.50

186

186C0612
ref: 186

BOLT-UPSET-WP

€ 0.50

360100

360105429R1
ref: 360100

COVER-SIDE,RH,P.A.WHI

€ 98.50

360101

360105430R1
ref: 360101
GRSTUK

COVER-SIDE,LH,P.A.WHI

€ 92.50

360102

360105431L1
ref: 360102
AREUFRSDWG

COVER-SIDE,LH,C.C.RED

€ 98.50

360103

360105432L1
ref: 360103

COVER-SIDE,RH,C.C.RED

€ 97.50

360104

360105433L1
ref: 360104
GRSTUK

COVER-SIDE,LH,C.C.RED

€ 104.00

36010Z

360105428R1
ref: 36010Z
AREUFRSDWG

COVER-SIDE,LH,P.A.WHI

€ 250.00

39040

390401054
ref: 39040

COVER-ASSY-CHAIN CASE

€ 70.00

92009

920091111
ref: 92009

SCREW,6X18

€ 3.00

92027

920271795
ref: 92027

COLLAR,L=9.1,WHITE

€ 4.00

92071

92071056
ref: 92071

GROMMET

€ 2.50

92075

920751634
ref: 92075

DAMPER

€ 3.00

SIDE COVER/CHAIN CASE

all assemblies
