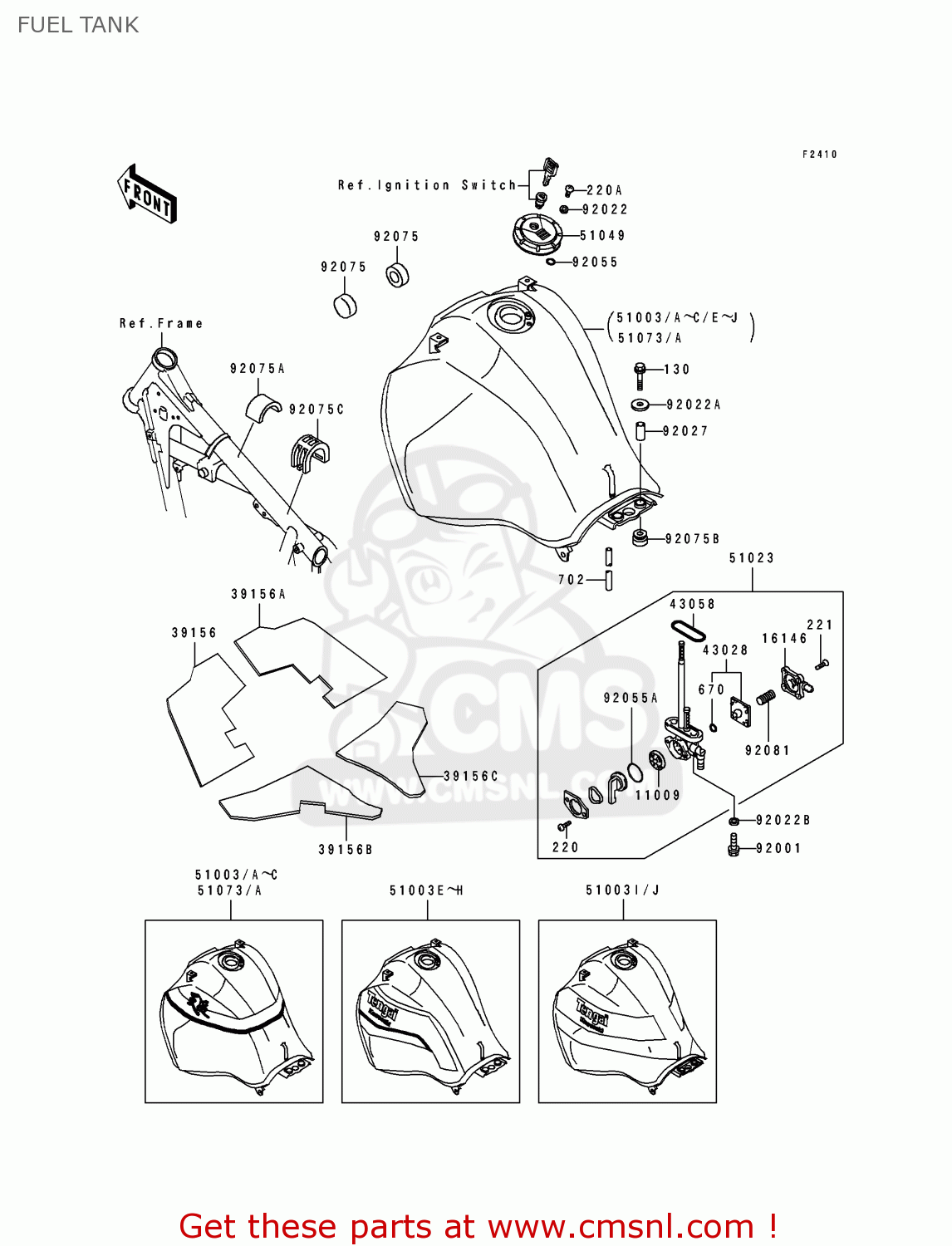

FUEL TANK

ref

part #

description

quantity

11009

110091188
ref: 11009

GASKET,TAP VALVE (NAS)

€ 4.00

16146

161461010
ref: 16146

COVER-ASSY,TAP DIAPHR

€ 17.00

39156

391561100
ref: 39156
AREUFRSDWG

PAD,FUEL TANK,FR,LH

€ 24.00

39156A

391561101
ref: 39156A
AREUFRSDWG

PAD,FUEL TANK,FR,RH

€ 24.00

39156B

391561103
ref: 39156B
AREUFRSDWG

PAD,FUEL TANK,RR,LH

€ 28.00

39156C

391561104
ref: 39156C
AREUFRSDWG

PAD,FUEL TANK,RR,RH

€ 28.00

43028

430281033
ref: 43028

DIAPHRAGM

€ 15.00

43058

51039003
ref: 43058

'O' RING

€ 4.00

51003E

510035122GL
ref: 51003E
AREUFRGRSDSTUK

TANK-COMP-FUEL,BLUE/W

€ 613.00

51003H

510035135GL
ref: 51003H
WG

TANK-COMP-FUEL,BLUE/W

€ 613.00

51003I

510035224GP
ref: 51003I
AREUFRGRSDSTUK

TANK-COMP-FUEL,RED/WH

€ 448.50

51003J

510035231GP
ref: 51003J
WG

TANK-COMP-FUEL,RED/WHITE

€ 0.00

51023

510231148
ref: 51023

TAP-ASSY,FUEL

€ 87.00

130

130C0630
ref: 130

BOLT-FLANGED

€ 2.50

220

220B0308
ref: 220

SCREW-PAN-CROS

€ 0.50

220A

220D0510
ref: 220A

SCREW-PAN-CROS

€ 0.50

221

221B0414
ref: 221

SCREW-CSR-CROS,4X14

€ 2.50

670

670B1504
ref: 670

O RING,4MM

€ 2.50

702

702A05620
ref: 702

TUBE-RUBBER,5X8X620

€ 50.00

51049

510491077
ref: 51049

CAP-TANK,FUEL

€ 89.00

92001

920011091
ref: 92001

BOLT,6X20,FUEL TAP

€ 2.50

92022

920221038
ref: 92022

WASHER,PLAIN

€ 2.50

92022A

92022125
ref: 92022A

WASHER,6.5X20X1.6

€ 1.00

92022B

92022183
ref: 92022B

WASHER,6.2X11X1.5

€ 2.50

92027

920271856
ref: 92027

COLLAR,6.8X10X22

€ 4.00

92055

920551023
ref: 92055

ORING

€ 2.50

92055A

920551085
ref: 92055A

'O' RING,FUEL TAP LEV

€ 3.00

92075

92075101
ref: 92075

DAMPER RUBBER-FL TANK

€ 4.00

92075A

920751507
ref: 92075A

DAMPER

€ 7.00

92075B

920751660
ref: 92075B

DAMPER

€ 5.50

92075C

920751862
ref: 92075C

DAMPER,FUEL TANK

€ 10.50

92081

920811240
ref: 92081

SPRING,DIAPHRAGM VLV

€ 2.50

all assemblies
