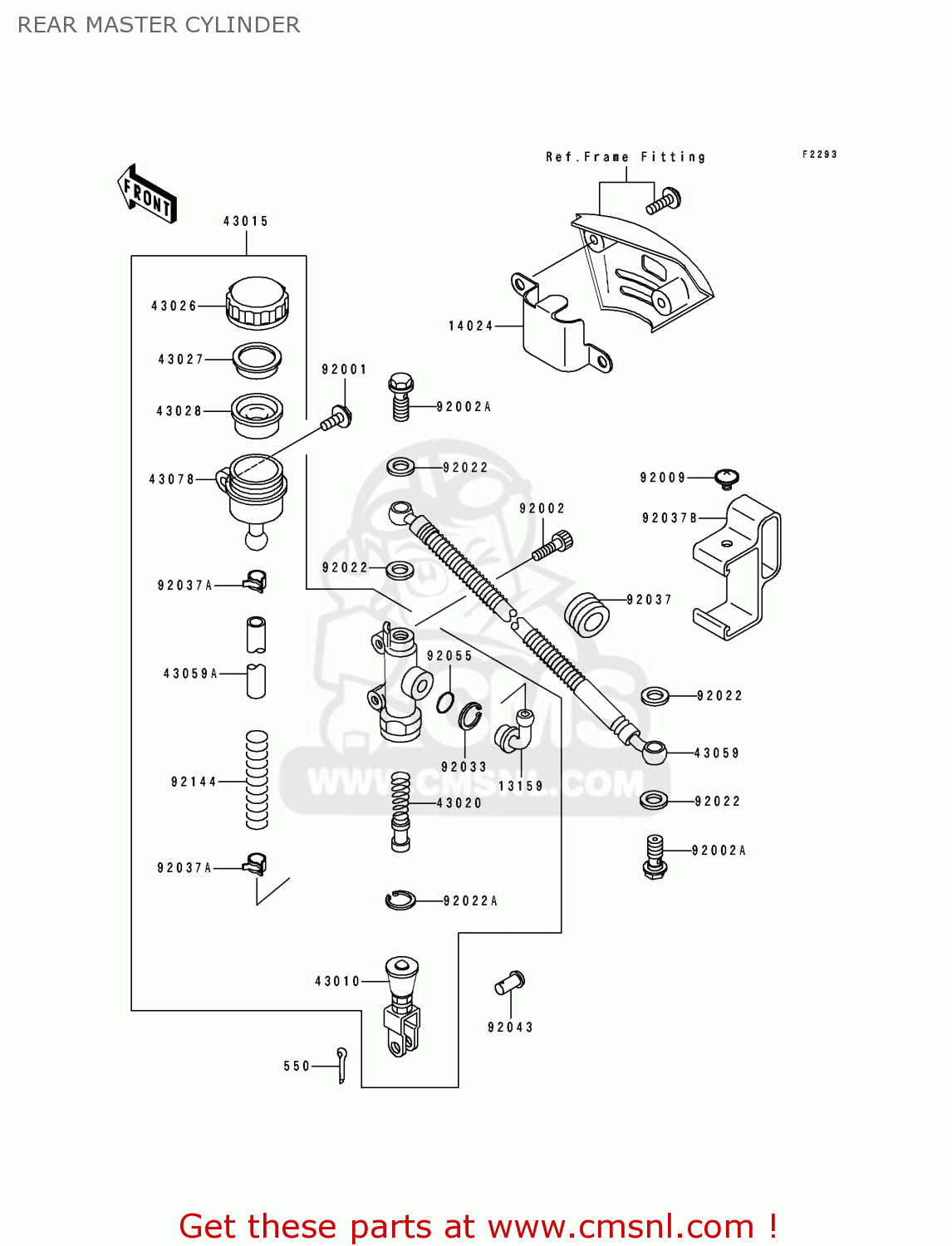

REAR MASTER CYLINDER

ref

part #

description

quantity

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00

13159

131591056
ref: 13159

CONNECTOR

€ 9.50

14024

140241531
ref: 14024

COVER,RESERVOIR TANK

€ 7.00

43010

430101062
ref: 43010

ROD-ASSY-BRAKE

€ 38.50

43015

430151390
ref: 43015

CYLINDER-ASSY-MASTER,

€ 267.50

43020

430201063
ref: 43020

PISTON-COMP-BRAKE

€ 47.50

43026

430261062
ref: 43026

CAP-BRAKE

€ 25.00

43027

430271053
ref: 43027

PLATE-DIAPHRAGM

€ 4.00

43028

430281065
ref: 43028

DIAPHRAGM

€ 13.00

43059

430591478
ref: 43059

HOSE-BRAKE,RR

€ 38.50

43059A

430591518
ref: 43059A

HOSE-BRAKE

€ 15.50

43078

430781080
ref: 43078

RESERVOIR

€ 19.00

92001

920011860
ref: 92001

BOLT,W/P,6X16

€ 2.50

92002

920021178
ref: 92002

BOLT,SOCKET,8X20

€ 3.00

92002A

920021888
ref: 92002A

BOLT,OIL,L=23

€ 3.50

92009

920091286
ref: 92009

SCREW,6X10

€ 2.50

92022

43067001
ref: 92022

WASHER,10.5X15X1.5

€ 1.50

92022A

920221601
ref: 92022A

WASHER,CIRCRIP

€ 5.00

92033

920331186
ref: 92033

RING-SNAP,20.5MM

€ 3.00

92037

43064007
ref: 92037

43064007

92037A

920371710
ref: 92037A

CLAMP

€ 6.50

92037B

920371895
ref: 92037B

CLAMP,HOSE

€ 6.50

92043

920431303
ref: 92043

PIN,8MM

€ 2.50

92055

920551251
ref: 92055

RING-O,MASTER CYLINDE

€ 2.50

92144

921441434
ref: 92144

SPRING

€ 5.00

all assemblies
