STEP
KL650A1 KLR650 1987 USA CALIFORNIA CANADA

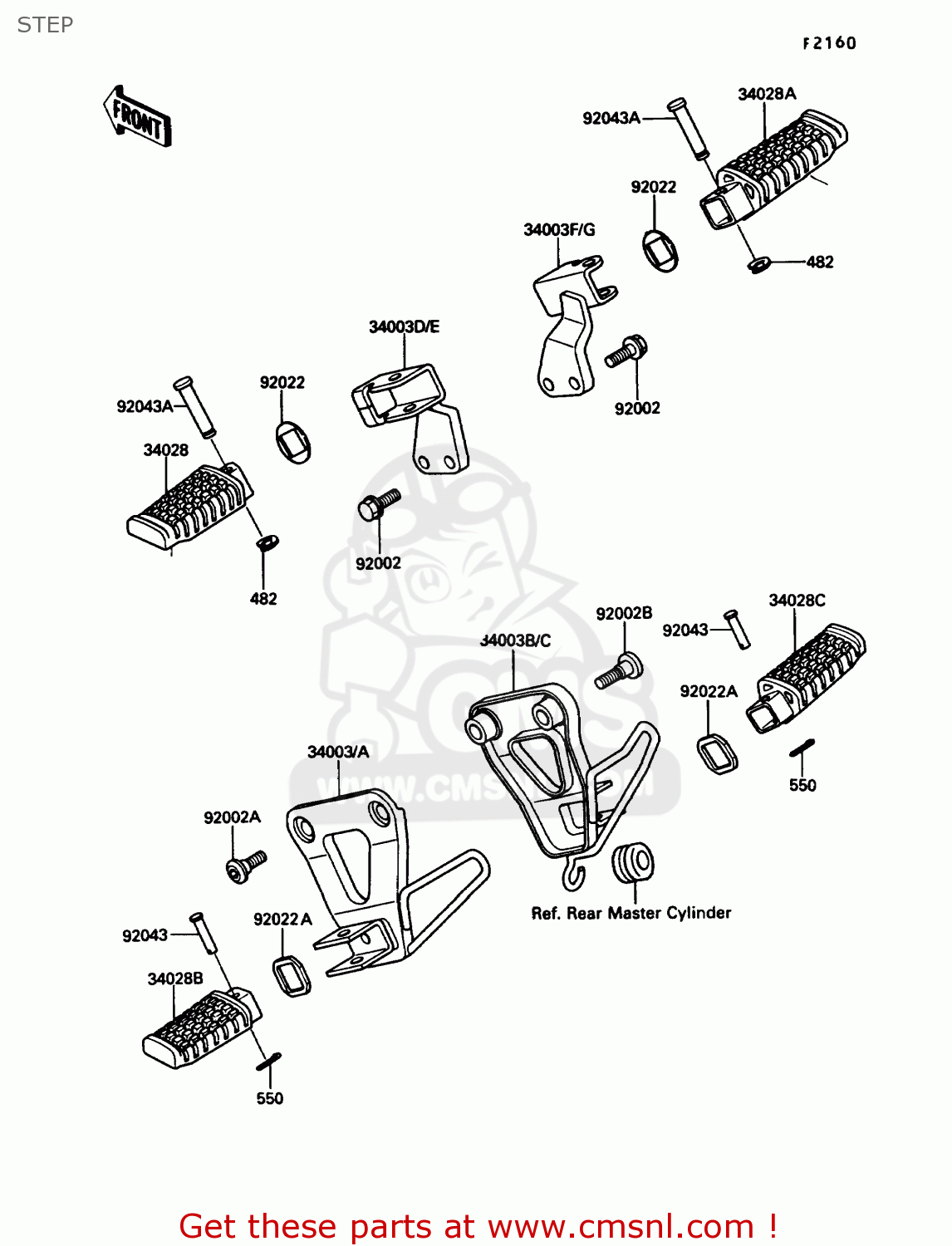

Step diagram KL650A1 KLR650 1987 USA CALIFORNIA CANADA
STEP KL650A1 KLR650 1987 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
482
482L7000
ref: 482
CIRCLIP-TYPE-E
€ 2.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
34003A
340031275X3
ref: 34003A
HOLDER-STEP,RR,LH,SIL
€ 24.00
34003C
340031276X3
ref: 34003C
HOLDER-STEP,RR,RH,SIL
€ 24.00
34003E
340031303X3
ref: 34003E
HOLDER-STEP,FR,LH,SIL
€ 62.50
34003G
340031304X3
ref: 34003G
HOLDER-STEP,FR,RH,SIL
€ 62.50
34028
340281193
ref: 34028
STEP,FR,LH
€ 35.50
34028A
340281194
ref: 34028A
STEP,FR,RH
€ 31.50
34028B
340281195
ref: 34028B
STEP,RR,LH
€ 36.50
34028C
340281196
ref: 34028C
STEP,RR,RH
€ 36.50
92002
920021417
ref: 92002
BOLT,FLANGED,8X20
€ 2.50
92002A
920021493
ref: 92002A
BOLT,SOCKET,8X20
€ 1.50
92002B
920021598
ref: 92002B
BOLT,SOCKET,8X23.5
€ 4.00
92022
920221314
ref: 92022
WASHER,STEP FITTING
€ 3.00
92022A
920221797
ref: 92022A
WASHER,STEP FITTING
€ 3.50
92043
92043079
ref: 92043
PIN-REAR FOOTREST FIT
€ 5.50
92043A
920431339
ref: 92043A
PIN
€ 5.00
