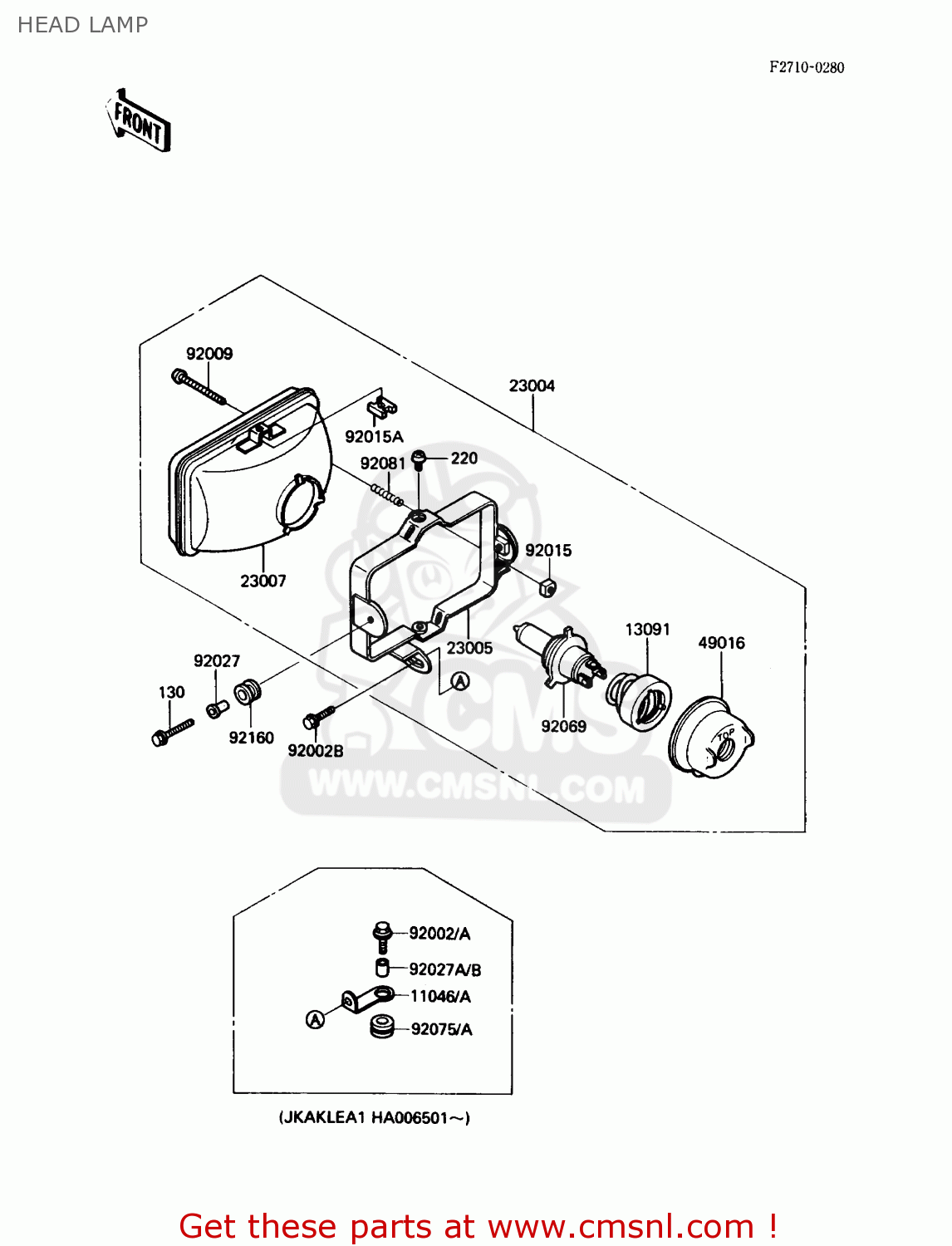

HEAD LAMP

ref

part #

description

quantity

130

130B0825
ref: 130

BOLT,FLANGED,8X25

€ 1.00

220

220B0508
ref: 220

SCREW-PAN-CROS,5X8

€ 0.50

11046A

110461041
ref: 11046A

BRACKET,HEAD LAMP

€ 3.00

13091

130911558
ref: 13091

HOLDER,SOCKET

€ 9.00

23004

230041251
ref: 23004

HEADLAMP

€ 198.50

23005

230051052
ref: 23005

BODY-COMP-HEAD LAMP

€ 27.50

23007

230071174
ref: 23007

LENS-COMP,HEAD LAMP

€ 87.00

49016

490161037
ref: 49016

COVER-SEAL,SOCKET

€ 7.50

92002A

920021135
ref: 92002A

BOLT,6X25

€ 2.50

92002B

920021260
ref: 92002B

BOLT,6X14

€ 0.50

92009

920091065
ref: 92009

SCREW,4MM

€ 3.00

92015

23020018
ref: 92015

NUT,4MM,FOCUS ADJUST

€ 3.00

92015A

920151354
ref: 92015A

NUT,5MM

€ 3.50

92027

920271134
ref: 92027

COLLAR,FUEL TANK FITT

€ 7.00

92027B

92027162
ref: 92027B

COLLAR-REAR FENDER

€ 4.50

92069

920691002
ref: 92069

BULB,12V-60155W

€ 15.00

92075A

92075209
ref: 92075A

DAMPER RUBBER

€ 3.00

92081

23014005
ref: 92081

SPRING-FOCUS ADJUST

€ 2.50

92160

921601007
ref: 92160

DAMPER

€ 3.50

all assemblies
