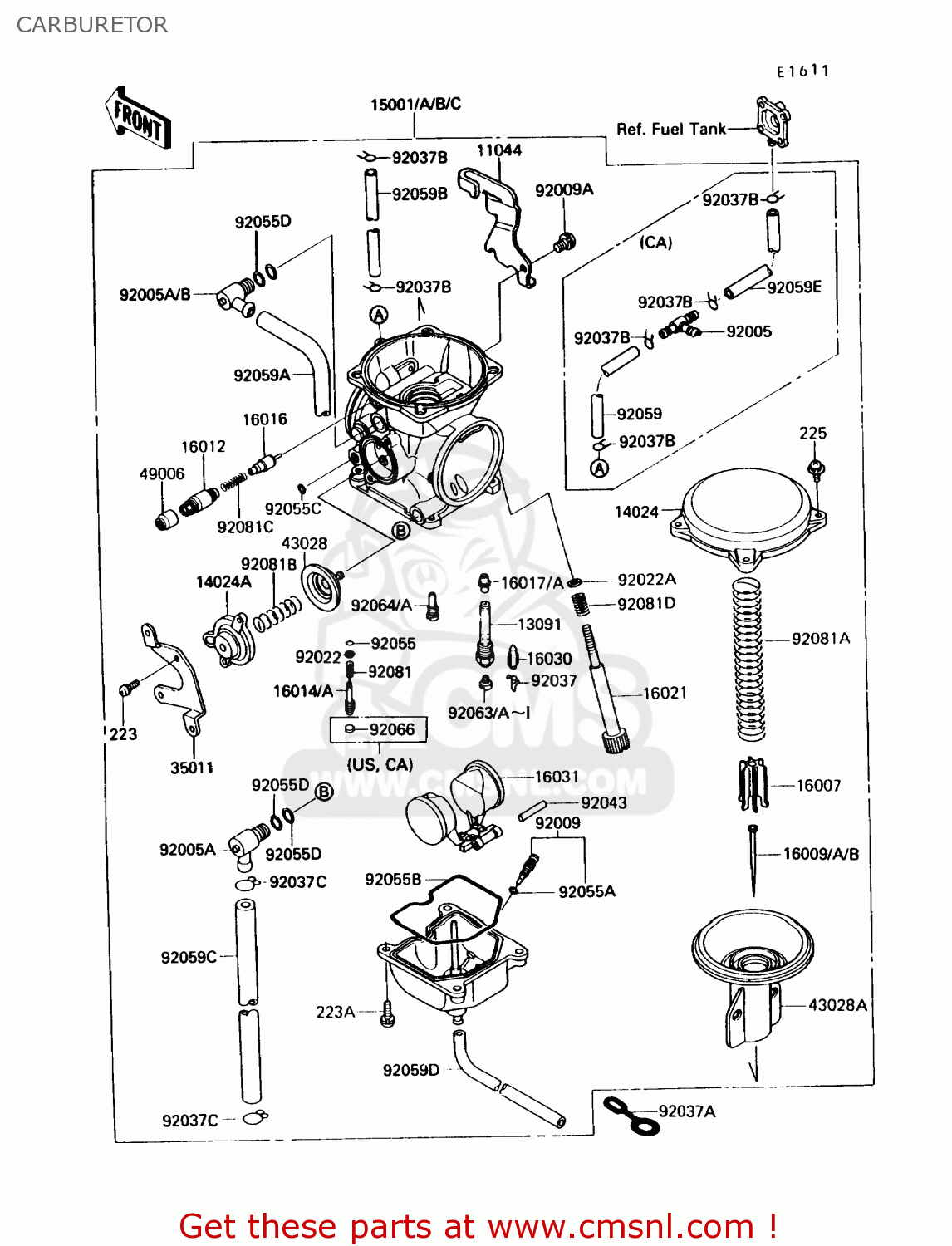

CARBURETOR

ref

part #

description

quantity

11044

110441353
ref: 11044

BRACKET,THROTTLE CABL

€ 44.00

13091

130911425
ref: 13091

HOLDER,NEEDLE JET

€ 19.50

14024

140251890
ref: 14024

COVER,MIXING CHAMBER

€ 58.50

14024A

140251903
ref: 14024A

COVER,AIR CUT VALVE

€ 43.00

15001

150011315
ref: 15001
CN

CARBURETOR-ASSY

€ 493.00

15001A

150011327
ref: 15001A
US

CARBURETOR-ASSY

€ 631.50

15001B

150011368
ref: 15001B
CA

CARBURETOR ASSEMBLY

€ 349.50

16007

160071113
ref: 16007

SEAT-SPRING,DIAPHRAGM

€ 13.50

16009

160091344
ref: 16009
CAUS

NEEDLE-JET,N31R

€ 25.00

16009A

160091345
ref: 16009A
CN

NEEDLE-JET,N31T

€ 19.50

16012

160121055
ref: 16012

CAP-STARTER PLUNGER

€ 17.50

16014

160141053
ref: 16014

SCREW-PILOT AIR

€ 15.50

16016

160161057
ref: 16016

PLUNGER

€ 41.00

16017

160171253
ref: 16017
CN

JET-NEEDLE

€ 36.50

16017A

160171254
ref: 16017A
CAUS

JET-NEEDLE,#6

€ 37.50

16021

160211109
ref: 16021

SCREW-THROTTLE STOP

€ 31.50

16030

160301057
ref: 16030

VALVE-FLOAT

€ 37.00

16031

160311056
ref: 16031

FLOAT

€ 39.00

35011

350111232
ref: 35011

STAY,AIR CUT VALVE

€ 25.00

43028

430281053
ref: 43028

DIAPHRAGM,5.9MM,AIR C

€ 62.50

43028A

430281062
ref: 43028A

DIAPHRAGM,VALVE

€ 175.00

49006

490061165
ref: 49006

BOOT,STARTER PLUNGER

€ 6.50

92005

920051112
ref: 92005
CA

FITTING,FUEL,T-TYPE

€ 10.00

92005A

920051120
ref: 92005A
CAUS

FITTING,L-TYPE

€ 18.50

92005A

920051120
ref: 92005A
CN

FITTING,L-TYPE

€ 18.50

92005B

920051144
ref: 92005B
CAUS

FITTING,L-TYPE

€ 18.50

92009

920091095
ref: 92009

SCREW,DRAIN

€ 10.00

92009A

920091365
ref: 92009A

SCREW

€ 4.50

92022

920221003
ref: 92022

WASHER,PLAIN

€ 2.50

92022A

920221587
ref: 92022A

WASHER,THROTTLE STOP

€ 3.00

92037

16044007
ref: 92037

CLIP, FLOAT VALVE

€ 4.00

92037A

92037134
ref: 92037A

CLAMP,OVER FLOW PIPE

€ 7.50

92037B

920371477
ref: 92037B
CNUS

CLAMP,TUBE

€ 3.00

92037B

920371477
ref: 92037B
CA

CLAMP,TUBE

€ 3.00

92037C

920371531
ref: 92037C

CLAMP,TUBE

€ 3.50

92043

920431207
ref: 92043

PIN,FLOAT

€ 6.00

92055

920551002
ref: 92055

O RING,PILOT ADJUST

€ 2.50

92055A

920551053
ref: 92055A

O RING,DRAIN SCREW

€ 3.00

92055B

920551222
ref: 92055B

RING-O,FLOAT CHAMBER

€ 12.50

92055C

920551245
ref: 92055C

RING-O

€ 3.50

92055D

920551246
ref: 92055D

RING-O

€ 3.00

92059

920591713
ref: 92059
CA

TUBE,5X9X120

€ 16.50

92059A

920591727
ref: 92059A

TUBE,6.5X9.5X430

€ 18.00

92059B

920591836
ref: 92059B
CNUS

TUBE,5X9X220

€ 16.50

92059C

920591837
ref: 92059C

TUBE,6.5X11.5X170

€ 18.00

92059D

920591838
ref: 92059D
CN

TUBE,3.5X6.5X390

€ 14.50

92059E

920591839
ref: 92059E
CA

TUBE,5X9X100

€ 4.50

92063A

920631016
ref: 92063A
CAUS

MAIN JET,#142

€ 9.00

92063C

920631017
ref: 92063C

MAIN JET,#145

€ 9.00

92063D

920631324
ref: 92063D
CAUS

JET-MAIN,#148

€ 9.00

92063E

920631324
ref: 92063E
CN

JET-MAIN,#148

€ 9.00

223

223C0410
ref: 223

SCREW-PAN-WS-CROS

€ 2.50

223A

223C0416
ref: 223A

SCREW-PAN-WS-CROS

€ 2.50

225

225C0418
ref: 225

SCREW-PAN-WSP-CROS

€ 2.50

92063F

920631330
ref: 92063F
CN

JET-MAIN,#150

€ 9.00

92063G

920631330
ref: 92063G
CAUS

JET-MAIN,#150

€ 9.00

92063H

920631331
ref: 92063H

JET-MAIN,#152

€ 9.50

92063I

920631332
ref: 92063I
CN

JET-MAIN,#155

€ 9.50

92064

920641050
ref: 92064
CAUS

JET-PILOT,#38

€ 12.50

92064A

920641108
ref: 92064A

JET-PILOT,#40

€ 11.00

92066

920661051
ref: 92066
CAUS

PLUG,PILOT AIR SCREW,

€ 3.00

92081

920811002
ref: 92081

SPRING,PIROT ADJ SCRW

€ 3.50

92081A

920811718
ref: 92081A

SPRING,DIAPHRAGM VALV

€ 18.50

92081B

920811719
ref: 92081B

SPRING,AIR CUT VALVE

€ 8.50

92081C

920811720
ref: 92081C

SPRING,PLUNGER

€ 7.00

92081D

920811721
ref: 92081D

SPRING,THROTTLE STOP

€ 9.00

all assemblies
