REAR HUB
KL600B4 KLR600 1988 EUROPE UK FG

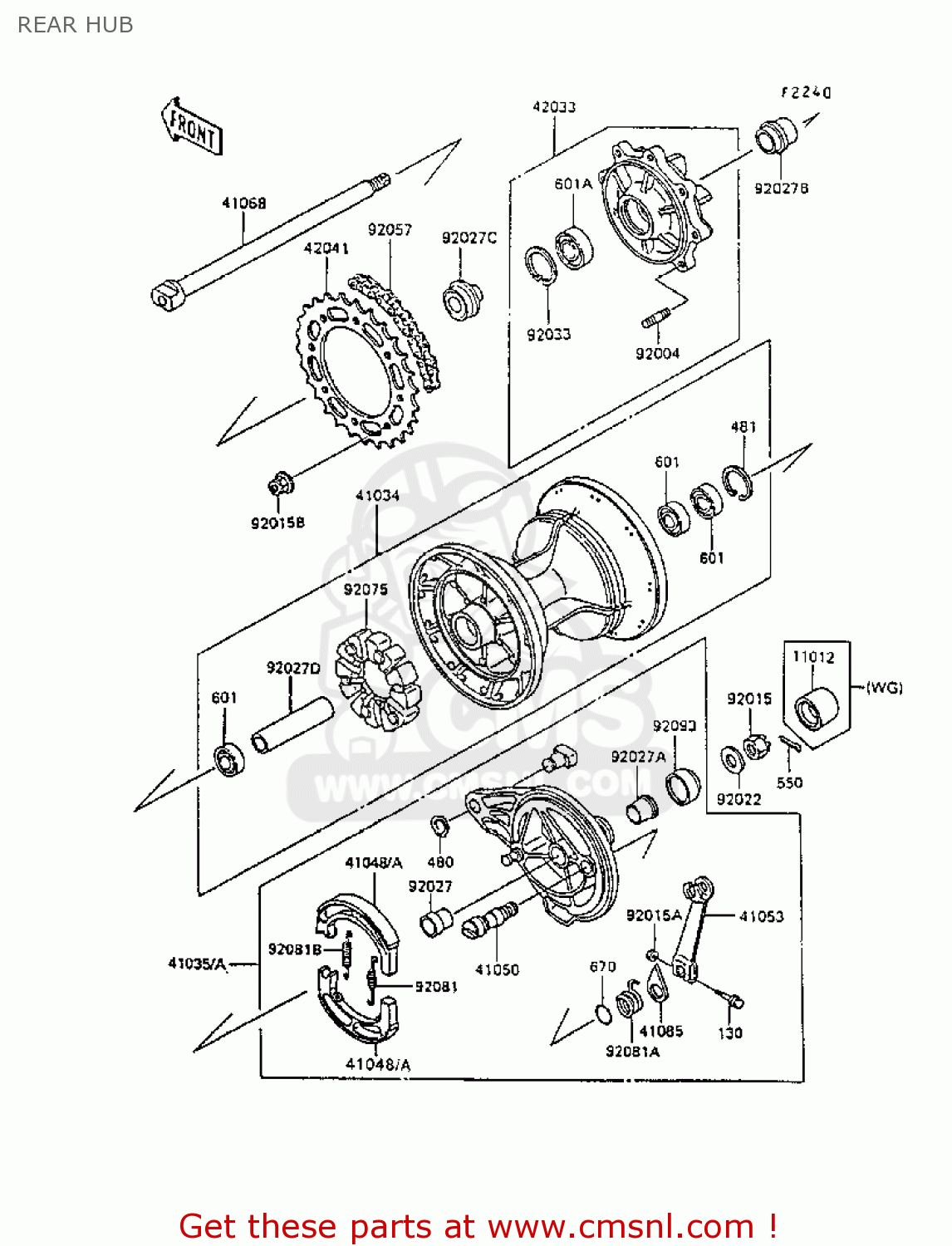

Rear hub diagram KL600B4 KLR600 1988 EUROPE UK FG
REAR HUB KL600B4 KLR600 1988 EUROPE UK FG
×
prices are in EUR
ref
part #
description
quantity
130
130G0630
ref: 130
BOLT, FLANGED, 6X30
€ 0.50
480
480J1400
ref: 480
CIRCLIP-TYPE-C,14MM
€ 3.00
481
481J3500
ref: 481
CIRCLIP-TYPE-C,35MM
€ 1.00
550
550D4035
ref: 550
PIN-COTTER,4.0X35
€ 1.00
601
601B6003UG
ref: 601
BEARING-BALL #6003UC3
€ 17.00
601A
601B6004UG
ref: 601A
BEARING-BALL,#6004U
€ 27.50
11012
110121592
ref: 11012
FG
CAP,AXLE NUT
€ 5.00
41034
410341107
ref: 41034
DRUM-ASSY,REAR BRAKE
€ 386.50
41035
410351194
ref: 41035
PANEL-ASSY-BRAKE,RR
€ 260.50
41048
410481060
ref: 41048
SHOE-BRAKE (MCA)
€ 26.00
41050
410501060
ref: 41050
CAM-BRAKE
€ 25.50
41053
410531051
ref: 41053
LEVER-BRAKE CAM
€ 55.00
41068
410681184
ref: 41068
AXLE,RR
€ 61.00
41085
41085005
ref: 41085
INDICATOR,FRONT BRAK
€ 9.00
42033
420331112
ref: 42033
COUPLING-ASSY,REAR HU
€ 197.00
42041
420411185
ref: 42041
SPROCKET-HUB,43T
€ 29.50
92004
920041150
ref: 92004
STUD, 8X16
€ 3.50
92015
42045014
ref: 92015
NUT CASTLE, 16M/M
€ 6.50
92015A
920151078
ref: 92015A
NUT,6M/M
€ 1.50
92015B
920151506
ref: 92015B
NUT,LOCK,8MM
€ 4.50
92022
42046009
ref: 92022
WASHER-SLEEVE
€ 5.00
92027
920271689
ref: 92027
COLLAR,REAR BRAKE PAN
€ 13.50
92027A
920271690
ref: 92027A
COLLAR,REAR BRAKE PAN
€ 11.00
92027B
920271770
ref: 92027B
COLLAR,REAR HUB COUPL
€ 14.50
92027C
920271771
ref: 92027C
COLLAR,REAR HUB COUPL
€ 12.00
92027D
920271772
ref: 92027D
COLLAR,REAR BRAKE DRU
€ 9.50
92033
920331041
ref: 92033
CIRCLIP,42MM
€ 4.00
92057
920571177
ref: 92057
CHAIN,DRIVE,EK520LDOX
€ 71.00
92075
920751068
ref: 92075
DAMPER,SHOCK,RR HUB
€ 34.50
92081
920811550
ref: 92081
SPRING,BRAKE SHOE
€ 6.00
92081A
920811615
ref: 92081A
SPRING,BRAKE CAM LEVE
€ 13.00
92081B
920811766
ref: 92081B
SPRING,BRAKE SHOE
€ 5.50
92093
920931004
ref: 92093
OIL SEAL
€ 3.50
670
670B2015
ref: 670
O RING,15MM
€ 1.00
