RADIATOR
KL600B4 KLR600 1988 EUROPE UK FG

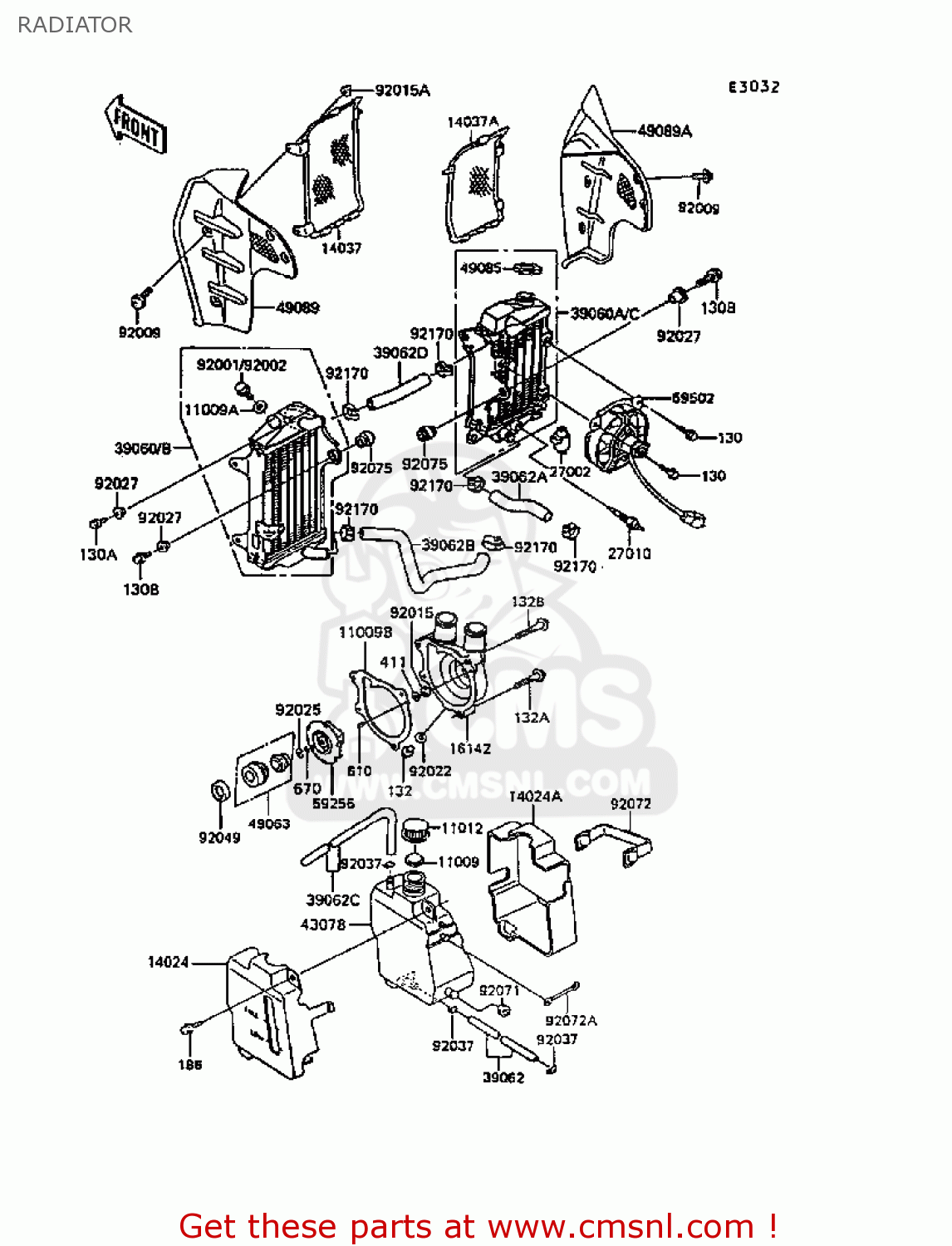

Radiator diagram KL600B4 KLR600 1988 EUROPE UK FG
RADIATOR KL600B4 KLR600 1988 EUROPE UK FG
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11009A
110091152
ref: 11009A
GASKET,DRAIN BOLT (NAS)
€ 4.50
11009B
110091367
ref: 11009B
GASKET,WATER PUMP COV (MCA)
€ 5.00
11012
110121084
ref: 11012
CAP
€ 1.50
14024
140251991
ref: 14024
COVER,RESERVOIR
€ 28.00
14024A
140251992
ref: 14024A
COVER,RESERVOIR
€ 17.50
14037
140371056
ref: 14037
SCREEN,RADIATOR,LH
€ 38.50
14037A
140371057
ref: 14037A
SCREEN,RADIATOR,RH
€ 34.50
16142
161421057
ref: 16142
COVER-PUMP,WATER
€ 44.50
27002
270021051
ref: 27002
RELAY-ASSY
€ 32.00
27010
270101167
ref: 27010
SWITCH,FAN
€ 108.50
39060
390601051
ref: 39060
FGUK
RADIATOR,LH
€ 547.50
39060A
390601052
ref: 39060A
FGUK
RADIATOR,RH
€ 527.50
39060B
390601055
ref: 39060B
EU
RADIATOR,LH
€ 526.00
39060C
390601056
ref: 39060C
EU
RADIATOR,RH
€ 552.50
39062
390621060
ref: 39062
HOSE-COOLING,5.5X10.5
€ 17.00
39062A
390621062
ref: 39062A
HOSE-COOLING,CYLINDER
€ 10.50
39062B
390621090
ref: 39062B
HOSE-COOLING,RADIATOR
€ 20.00
39062C
390621131
ref: 39062C
HOSE-COOLING
€ 12.00
39062D
390621133
ref: 39062D
HOSE-COOLING,RADIATOR
€ 17.00
43078
430781061
ref: 43078
RESERVOIR,TANK
€ 30.00
49063
490631054
ref: 49063
SEAL-MECHANICAL
€ 19.00
49085
490851057
ref: 49085
CAP-ASSY-PRESSURE
€ 39.50
49089
4908910536B
ref: 49089
SHROUD-ENGINE,LH,S.RE
€ 26.00
49089A
4908910546B
ref: 49089A
SHROUD-ENGINE,RH,S.RE
€ 24.50
59256
592561055
ref: 59256
IMPELLER
€ 20.00
59502
595021052
ref: 59502
FAN-ASSY
€ 515.50
92001
920011277
ref: 92001
EU
PLUG,RADIATOR DRAIN
€ 13.50
92002
920021682
ref: 92002
FGUK
BOLT,RADIATOR DRAIN
€ 13.50
92009
920091287
ref: 92009
SCREW,6X14
€ 1.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92015A
920151170
ref: 92015A
NUT,CAP 6MM,BLACK
€ 0.50
92022
92022304
ref: 92022
WASHER,PLAIN
€ 2.50
92025
920251507
ref: 92025
SHIM,T=0.8
€ 2.50
92027
920271183
ref: 92027
COLLAR,6.5X10X14.1
€ 3.50
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
€ 1.50
130A
130J0620
ref: 130A
BOLT-FLANGED,6X20
€ 2.50
130B
130J0625
ref: 130B
BOLT-FLANGED,6X25
€ 2.00
132
132J0608
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132J0630
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132J0635
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
186
186J0618
ref: 186
BOLT-UPSET-WP
€ 2.50
411
411F0600
ref: 411
WASHER-PLAIN,6MM,BLAC
€ 0.50
610
610A0408
ref: 610
ROLLER,4X8
€ 2.50
670
670B1506
ref: 670
O RING,6MM
€ 1.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92049
920491157
ref: 92049
SEAL-OIL,SC10227
€ 6.50
92071
920711115
ref: 92071
GROMMET,RESERVOIR TAN
€ 3.50
92072
92072053
ref: 92072
BAND-SPARK PLUG COVER
€ 8.50
92072A
920721156
ref: 92072A
BAND,L=58
€ 3.50
92075
920751352
ref: 92075
DAMPER,RADIATOR
€ 4.00
92170
921701033
ref: 92170
CLAMP,COOLING HOSE
€ 10.50
