METER(S)
KL600B4 KLR600 1988 EUROPE UK FG

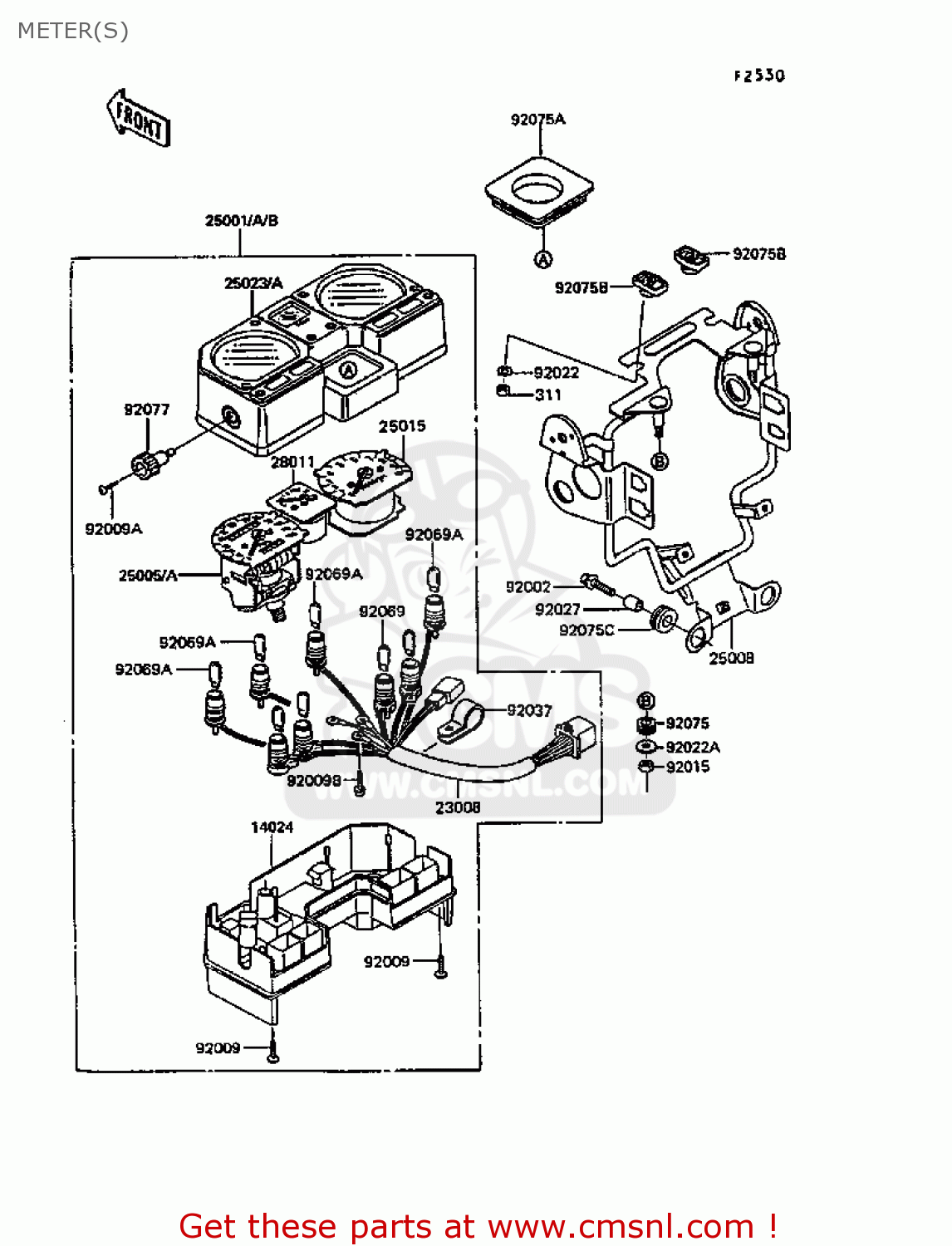

Meter(s) diagram KL600B4 KLR600 1988 EUROPE UK FG
METER(S) KL600B4 KLR600 1988 EUROPE UK FG
×
prices are in EUR
ref
part #
description
quantity
311
311C0500
ref: 311
NUT-HEX
€ 0.50
14024
140251818
ref: 14024
COVER,METER CASE,LWR
€ 59.50
23008
230081215
ref: 23008
SOCKET-ASSY,METER
€ 86.50
25001
250011515
ref: 25001
UK
METER-ASSY,MPH
€ 926.00
25001A
250011516
ref: 25001A
EUFG
METER-ASSY,KPH
€ 769.00
25005
250051261
ref: 25005
EUFG
SPEEDOMETER,KPH
€ 168.00
25005A
250051262
ref: 25005A
UK
SPEEDOMETER,MPH
€ 157.50
25008
250081114
ref: 25008
BRACKET-METER
€ 52.50
25015
250151208
ref: 25015
TACHOMETER,X1000R/MIN
€ 208.50
25023
250231107
ref: 25023
COVER-METER CASE,UPP
€ 66.00
28011
280111058
ref: 28011
METER,TEMP
€ 115.00
92002
920021137
ref: 92002
BOLT,6X25
€ 2.50
92009
920091163
ref: 92009
SCREW,TAPPING,4X16
€ 2.50
92009A
920091172
ref: 92009A
SCREW,2X6,BLACK
€ 2.00
92009B
920091293
ref: 92009B
SCREW,3X22
€ 2.50
92015
920151391
ref: 92015
NUT,6MM
€ 2.00
92022
25009004
ref: 92022
WASHER,5.2X16X1.2T
€ 2.50
92022A
920221557
ref: 92022A
WASHER,6.5X20X1.6
€ 1.00
92027
92027162
ref: 92027
COLLAR-REAR FENDER
€ 4.50
92037
920371479
ref: 92037
CLAMP,METER,SOCKET AS
€ 6.00
92069
920691007
ref: 92069
BULB,12V3.4W
€ 2.50
92069A
920691059
ref: 92069A
BULB,12V 1.7W
€ 2.50
92075
92075024
ref: 92075
DAMPER
€ 2.50
92075A
920751578
ref: 92075A
DAMPER,IGNITION SWITC
€ 4.50
92075B
920751581
ref: 92075B
DAMPER,METER BRACKET
€ 4.00
92075C
92075209
ref: 92075C
DAMPER RUBBER
€ 3.00
92077
920771054
ref: 92077
KNOB,METER
€ 6.00
