HEADLIGHT(S)
KL250D21 KLR250 2004 USA CALIFORNIA

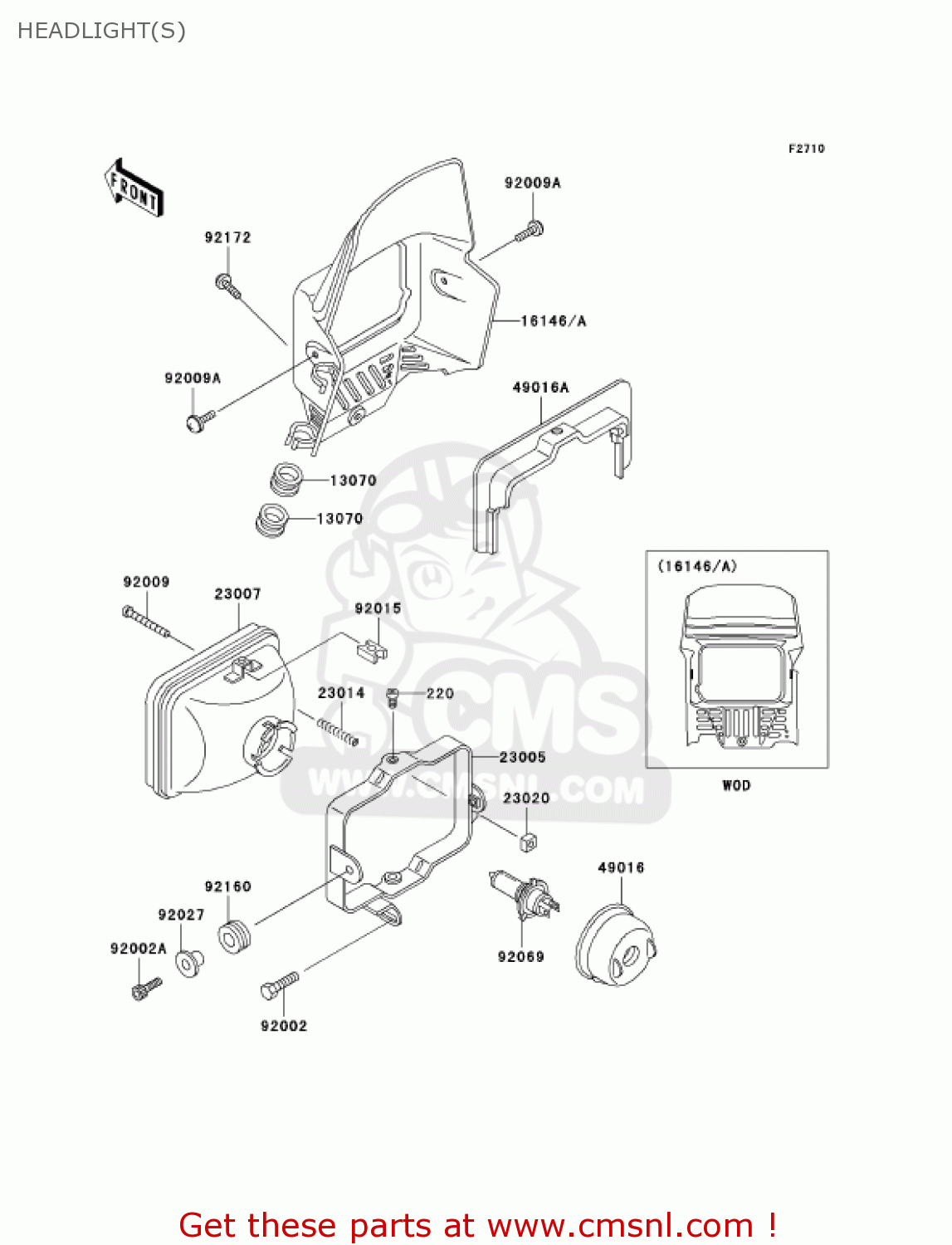

Headlight(s) diagram KL250D21 KLR250 2004 USA CALIFORNIA
HEADLIGHT(S) KL250D21 KLR250 2004 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
220
220B0508
ref: 220
SCREW-PAN-CROS,5X8
€ 0.50
13070
130701107
ref: 13070
GUIDE,BRAKE HOSE
€ 6.50
16146
161461053260
ref: 16146
COVER-ASSY,HEAD LAMP,
€ 76.50
23005
230051052
ref: 23005
BODY-COMP-HEAD LAMP
€ 27.50
23007
230071364
ref: 23007
LENS-COMP,HEAD LAMP
€ 91.50
23014
23014005
ref: 23014
SPRING-FOCUS ADJUST
€ 2.50
23020
23020018
ref: 23020
NUT,4MM,FOCUS ADJUST
€ 3.00
49016
490161037
ref: 49016
COVER-SEAL,SOCKET
€ 7.50
49016A
490161101
ref: 49016A
COVER-SEAL,HEAD LAMP
€ 21.00
92002
920021124
ref: 92002
BOLT,6X16
€ 2.50
92002A
920021319
ref: 92002A
BOLT
€ 4.50
92009
920091065
ref: 92009
SCREW,4MM
€ 3.00
92009A
920091294
ref: 92009A
SCREW,6X8
€ 2.50
92015
920151354
ref: 92015
NUT,5MM
€ 3.50
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
€ 7.00
92069
920691002
ref: 92069
BULB,12V-60155W
€ 15.00
92160
921601007
ref: 92160
DAMPER
€ 3.50
92172
921720107
ref: 92172
SCREW,6X14
€ 1.50
