CYLINDER HEAD COVER

KL250D21 KLR250 2004 USA CALIFORNIA

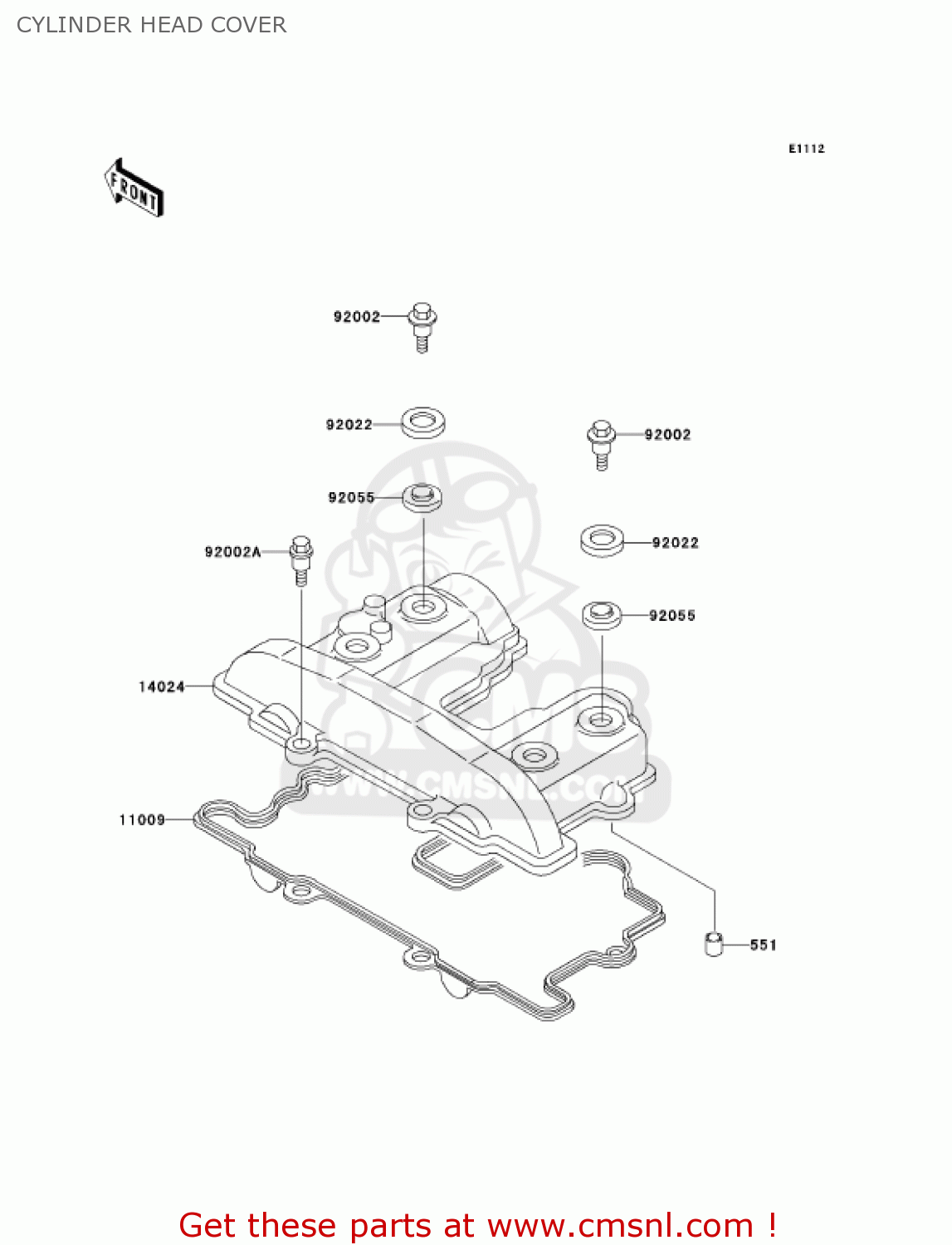

Cylinder head cover diagram KL250D21 KLR250 2004 USA CALIFORNIA

CYLINDER HEAD COVER KL250D21 KLR250 2004 USA CALIFORNIA

CYLINDER HEAD COVER KL250D21 KLR250 2004 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

551

551A1016
ref: 551

PIN-DOWEL

€ 1.50

11009

110091607
ref: 11009

GASKET,HEAD COVER (NAS)

€ 48.50

14024

140241218
ref: 14024

COVER,CYLINDER HEAD

€ 228.50

92002

920021327
ref: 92002

BOLT,L=20.5

€ 6.00

92002A

920021382
ref: 92002A

BOLT,L=21

€ 7.50

92022

920221487
ref: 92022

WASHER,HEAD COVER BOL

€ 3.50

92055

920551225
ref: 92055

RING-O,HEAD COVER BOL

€ 4.50
