CRANKCASE
KL250D21 KLR250 2004 USA CALIFORNIA

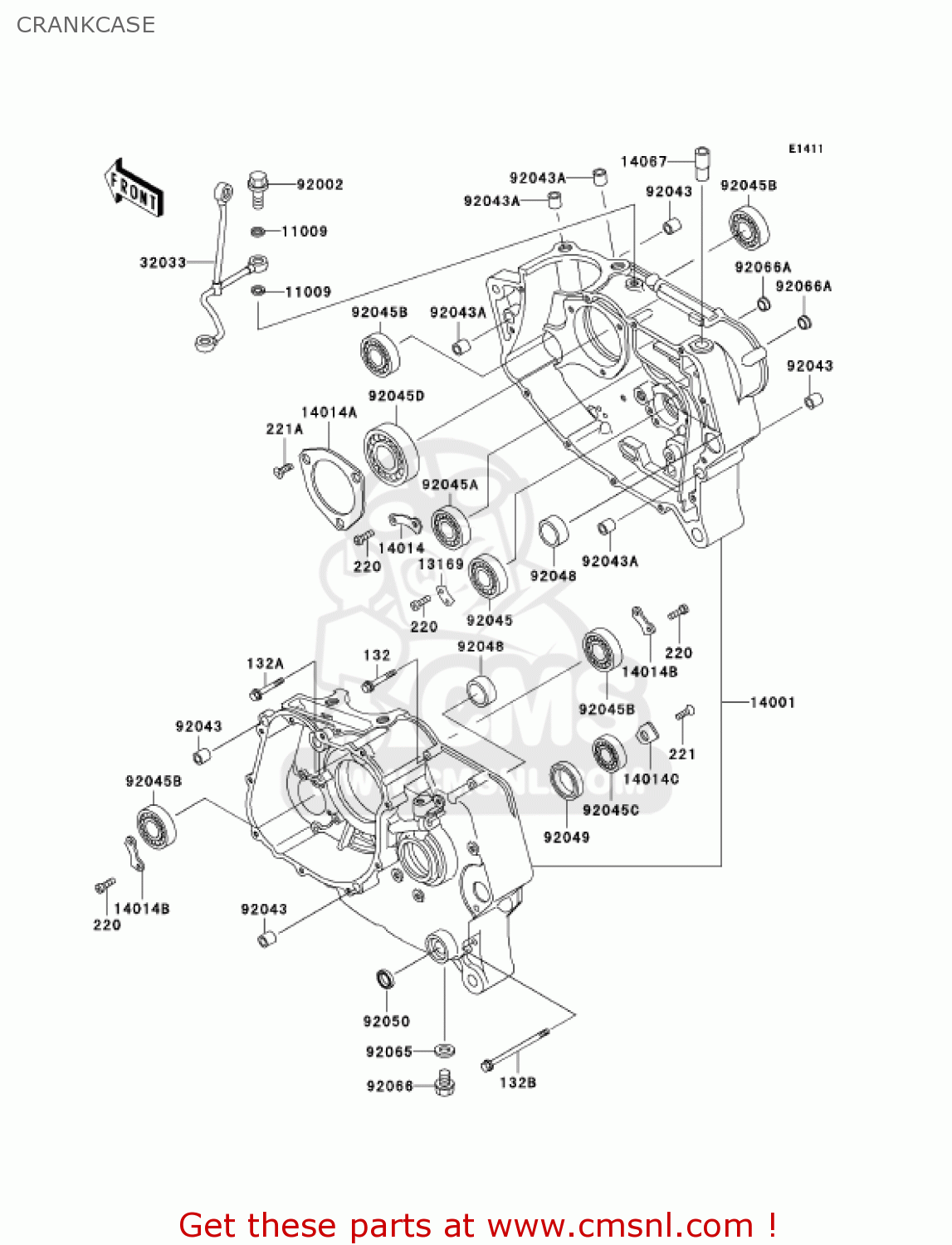

Crankcase diagram KL250D21 KLR250 2004 USA CALIFORNIA
CRANKCASE KL250D21 KLR250 2004 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
132
132J0640
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
132A
132J0650
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
132B
132J0670
ref: 132B
BOLT-FLANGED-SMALL
€ 3.00
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
€ 1.00
221
221B0612
ref: 221
SCREW-CNTSNK HD,6X12
€ 1.50
221A
221B0616
ref: 221A
SCREW-CNTSNK HD,6X16
€ 0.50
11009
110091105
ref: 11009
GASKET,10X14.5X1.5 (NAS)
€ 4.00
13169
13169014
ref: 13169
PLATE,GEAR CHANGE DRU
€ 3.00
14001
140015180
ref: 14001
SET-CRANKCASE
€ 955.00
14014
14014037
ref: 14014
PLATE-POSITION
€ 2.50
14014A
140141004
ref: 14014A
PLATE,POSITIONING
€ 8.00
14014B
140141014
ref: 14014B
PLATE-POSITION
€ 2.50
14014C
140141057
ref: 14014C
PLATE-POSITION
€ 2.50
14067
14067006
ref: 14067
BREATHER JOINT
€ 14.00
32033
320331427
ref: 32033
PIPE
€ 98.00
92002
920021170
ref: 92002
BOLT,BANJO,10X25
€ 6.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
€ 0.50
92043A
920434009
ref: 92043A
PIN,10.1X12X14
€ 4.00
92045
92045036
ref: 92045
BEARING-BALL,#6905
€ 29.00
92045A
920451041
ref: 92045A
BEARING-BALL,TMB204 J
€ 32.50
92045B
920451118
ref: 92045B
BEARING-BALL,6004TMB
€ 23.50
92045C
920451127
ref: 92045C
BEARING-BALL,TM-SX059
€ 47.00
92045D
920451172
ref: 92045D
BEARING-BALL
€ 53.50
92048
920481057
ref: 92048
RACE,26X33X13
€ 29.50
92049
920491159
ref: 92049
SEAL-OIL,TC32457
€ 8.00
92050
92050082
ref: 92050
OIL SEAL,CHANGE SHAFT
€ 5.50
92065
92065097
ref: 92065
GASKET,DRAIN PLUG BOL (NAS)
€ 1.00
92066
920661174
ref: 92066
PLUG,OIL DRAIN,12X15
€ 4.00
92066A
920661282
ref: 92066A
PLUG
€ 4.00
