REAR HUB/BRAKE
KL250A2 KLR250 1979 CANADA

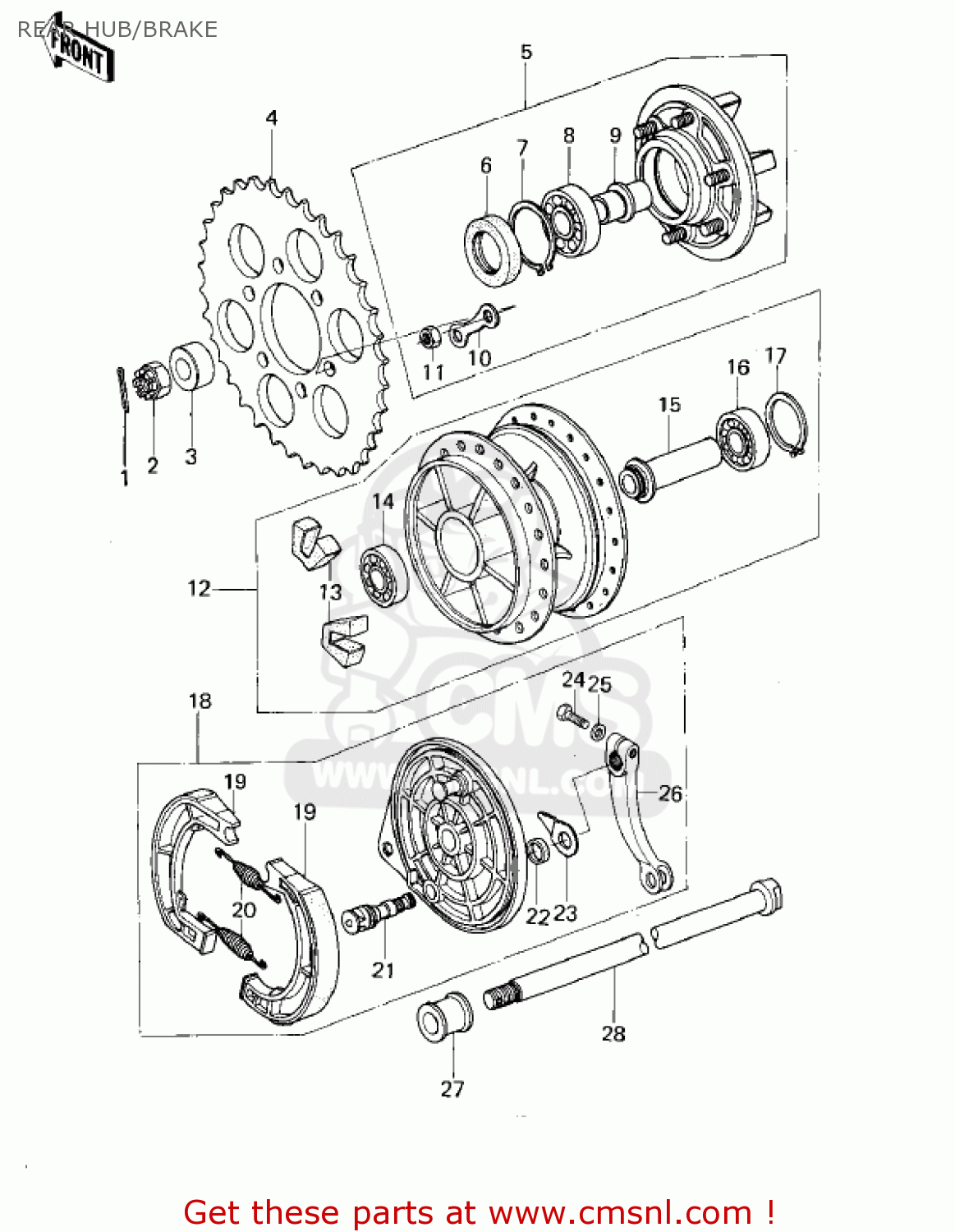

Rear hub/brake diagram KL250A2 KLR250 1979 CANADA
REAR HUB/BRAKE KL250A2 KLR250 1979 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
550D4035
ref: 1
PIN-COTTER,4.0X35
€ 1.00
2
92015055
ref: 2
NUT,16MM
€ 8.00
3
920271010
ref: 3
COLLAR,REAR AXLE,L.H.
€ 13.50
4
42041163
ref: 4
REAR SPROCKET,40T
€ 35.00
5
42008030
ref: 5
COUPLING ASSY,REAR HB
€ 111.50
6
92052006
ref: 6
OIL SEAL WTC35527
€ 6.50
7
920331043
ref: 7
RING,SNAP,56.2M/M
€ 6.00
8
601B6205
ref: 8
BEARING-BALL,#6205C3
€ 14.00
9
42036023
ref: 9
SLEEVE,COUPLING
€ 27.00
10
92088007
ref: 10
WASHER,LOCK
€ 8.00
11
42045005
ref: 11
NUT,10MM
€ 5.00
12
42005052
ref: 12
BUFF FINISH
DRUM ASSY,REAR BRAKE
€ 275.50
13
42014024
ref: 13
DAMPER,RR BRAKE DRUM
€ 9.00
14
601B6303
ref: 14
BEARING-BALL,#6303C3
€ 24.00
15
42010038
ref: 15
17.2 X 25 X 64.5
COLLAR,REAR HUB BEARG
€ 7.00
16
601B6303U
ref: 16
BEARING-BALL
€ 26.00
17
920331042
ref: 17
CIRCLIP,47M/M
€ 4.00
18
410351004
ref: 18
BUFF FINISH
PANEL ASSY,REAR BRAKE
€ 308.00
19
42019011
ref: 19
SHOE,BRAKE (MCA)
€ 18.50
20
42020004
ref: 20
SPRING-BRAKE SHOE
€ 5.50
21
410501003
ref: 21
CAM SHAFT,REAR BRAKE
€ 10.00
22
41051001
ref: 22
DUST SHIELD-BRAKE CAM
€ 2.50
23
41085017
ref: 23
INDICATOR,BRAKE SHOE
€ 7.50
24
112G0625
ref: 24
BOLT-UPSET,6X25
€ 4.00
25
410B0600
ref: 25
WASHER-PLAIN-SMALL,6M
€ 0.50
26
42029040
ref: 26
LEVER,REAR BRAKE CAM
€ 34.50
27
920271009
ref: 27
COLLAR,REAR AXLE,R.H.
€ 9.00
28
410681003
ref: 28
AXLE,REAR
€ 38.00
