FRAME/FRAME FITTINGS
KL250A2 KLR250 1979 CANADA

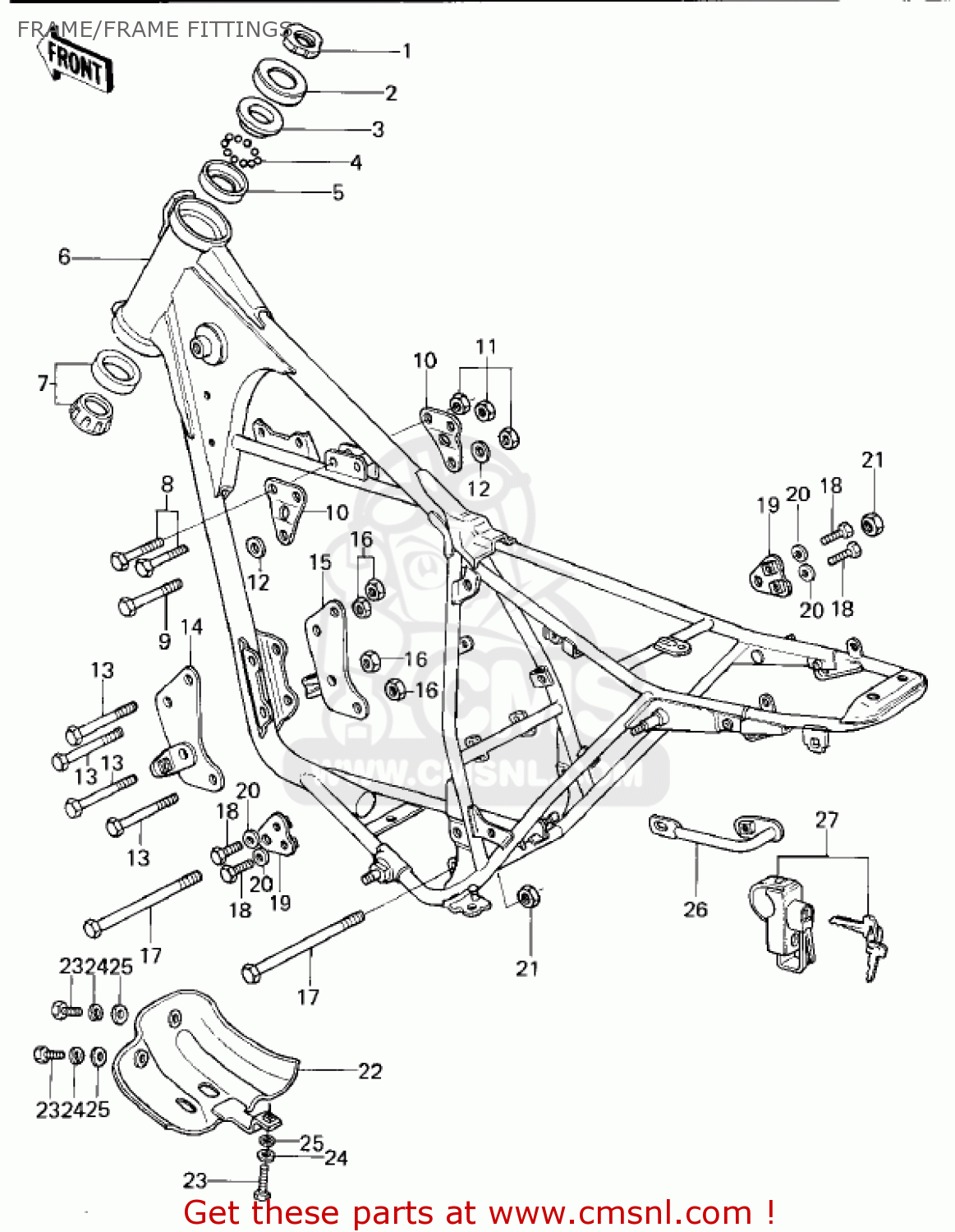

Frame/frame fittings diagram KL250A2 KLR250 1979 CANADA
FRAME/FRAME FITTINGS KL250A2 KLR250 1979 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92090022
ref: 1
NUT,STEERING LOCK,25M
€ 18.50
2
46098018
ref: 2
CAP,STEERING STEM
€ 4.00
3
92047020
ref: 3
CONE,STEERING STEM
€ 9.50
4
600A0800
ref: 4
BALL-STEEL,1/4
€ 0.50
5
92048010
ref: 5
RACE,STEERING STEM
€ 8.50
6
320021005
ref: 6
FRAME
€ 970.50
7
92047017
ref: 7
CONE,STRNG,STEM
€ 49.50
8
920011219
ref: 8
BOLT,HEX HEAD,8X45
€ 2.50
9
110B0865
ref: 9
BOLT,HEX HEAD,8X65
€ 1.00
10
320291007
ref: 10
BRACKET,ENGINE,HEAD
€ 5.50
11
92017013
ref: 11
NUT,LOCK,8MM
€ 5.50
12
410B0800
ref: 12
WASHER-PLAIN-SMALL,8M
€ 0.50
13
920011583
ref: 13
BOLT,FLANGED,8X70
€ 6.00
14
320291009
ref: 14
BRACKET,ENG,FR,L.H.
€ 5.50
15
320291006
ref: 15
BRACKET,ENG,FR,R.H
€ 5.50
16
92017013
ref: 16
NUT,LOCK,8MM
€ 5.50
17
920011602
ref: 17
BOLT,FLANGED,10X110
€ 7.50
18
115G0818
ref: 18
BOLT SMALL-UPSET
€ 2.50
19
320291008
ref: 19
BRACKET-ENGINE
€ 7.00
20
410B0800
ref: 20
WASHER-PLAIN-SMALL,8M
€ 0.50
21
92019021
ref: 21
NUT,LOCK,10M/M
€ 2.00
22
550201004
ref: 22
GUARD,ENGINE
€ 43.50
23
112B0614
ref: 23
BOLT-UPSET 6X14
€ 2.50
24
461F0600
ref: 24
WASHER-SPRING,6MM
€ 0.50
25
92022125
ref: 25
WASHER,6.5X20X1.6
€ 1.00
26
321091001
ref: 26
FRAME GRIP,LH.
€ 17.50
27
270165022
ref: 27
LOCK ASSY,HELMET
€ 35.50
