FOOTRESTS/STAND/BRAKE PEDAL
KL250A2 KLR250 1979 CANADA

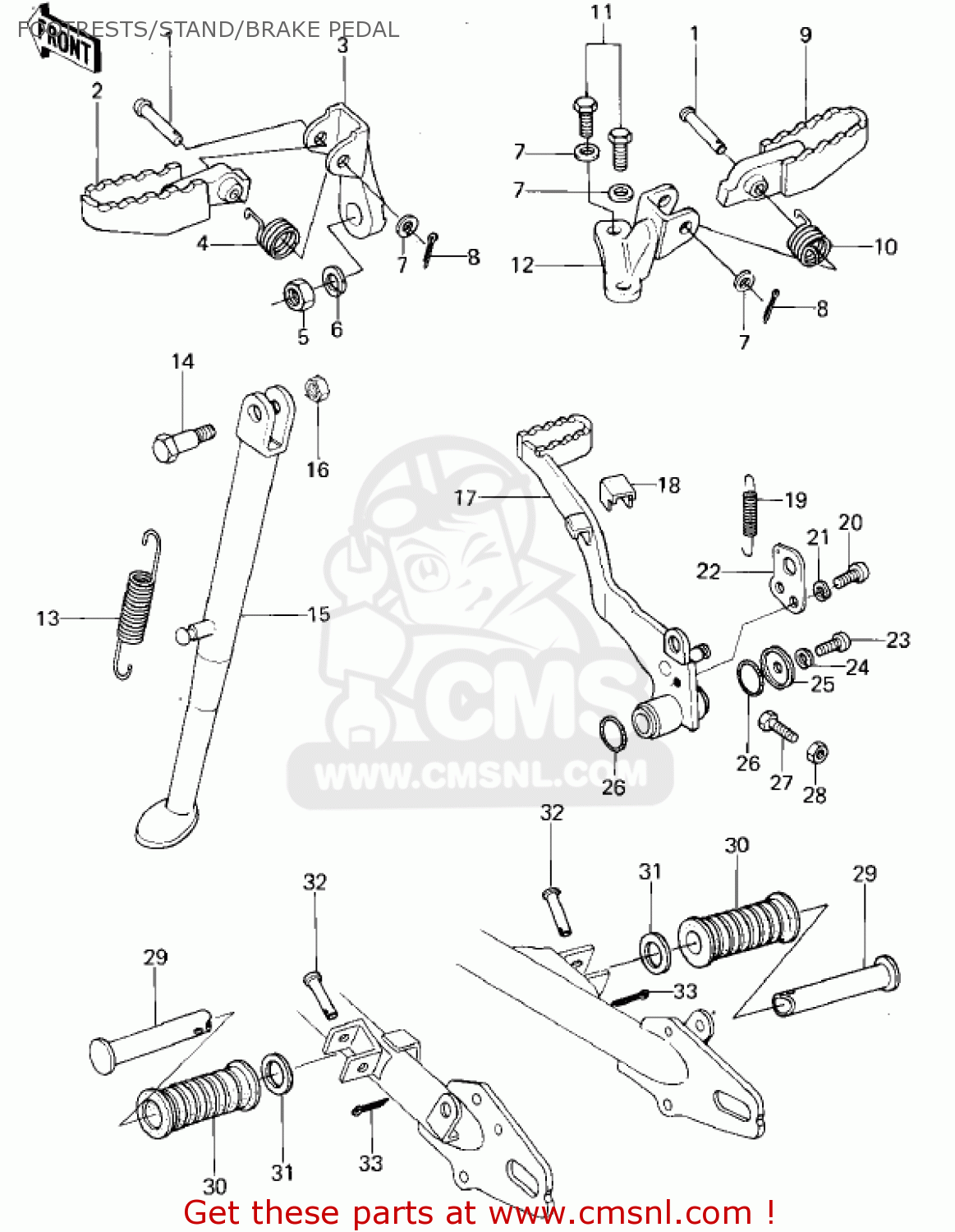

Footrests/stand/brake pedal diagram KL250A2 KLR250 1979 CANADA
FOOTRESTS/STAND/BRAKE PEDAL KL250A2 KLR250 1979 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92043115
ref: 1
PIN,FOOTREST BAR FIT
€ 6.50
2
34028037
ref: 2
STEP,FOOTREST,L.H.
€ 28.50
3
340031001
ref: 3
HOLDER,STEP,L.H.
€ 13.00
4
920811254
ref: 4
SPRING,FOOTREST,L.H
€ 3.50
5
315B1400
ref: 5
NUT,14MM
€ 1.00
6
461F1400
ref: 6
WASHER-SPRING,14MM
€ 0.50
7
410B0800
ref: 7
WASHER-PLAIN-SMALL,8M
€ 0.50
8
550D2516
ref: 8
PIN-COTTER,2.5X16
€ 1.50
9
34028038
ref: 9
STEP,FOOTREST,R.H
€ 20.50
10
920811255
ref: 10
SPRING,FOOTREST,R.H
€ 4.50
11
115G0818
ref: 11
BOLT SMALL-UPSET
€ 2.50
12
340031002
ref: 12
HOLDER,STEP,R.H.
€ 10.00
13
34025008
ref: 13
SPRING,SIDE STAND
€ 4.50
14
92003157
ref: 14
BOLT,SIDE STAND FIT
€ 6.50
15
34024064
ref: 15
STAND,SIDE
€ 35.50
16
92019021
ref: 16
NUT,LOCK,10M/M
€ 2.00
17
430015002
ref: 17
F/NO. 000101~006217
PEDAL,BRAKE
€ 39.50
17
430011022
ref: 17
F/NO. 006218~
PEDAL,BRAKE
€ 39.50
18
92075220
ref: 18
DAMPER,BRAKE PEDAL
€ 2.50
19
920811044
ref: 19
SPRING,BRAKE RETURN
€ 7.50
20
220B0812
ref: 20
SCREW,PAN HEAD,8X12
€ 1.00
21
461F0800
ref: 21
WASHER-SPRING,8MM
€ 0.50
22
131691009
ref: 22
USE FOR 43001-1003
PLATE,BRAKE PEDAL
€ 3.00
22
131691122
ref: 22
USE FOR 43001-1022
PLATE,BRAKE PEDAL
€ 1.50
23
220B0612
ref: 23
SCREW-PAN HEAD,6X12
€ 1.00
24
461F0600
ref: 24
WASHER-SPRING,6MM
€ 0.50
25
92022284
ref: 25
WASHER,PLAIN,6MM
€ 2.50
26
670B2016
ref: 26
O RING,16MM
€ 1.00
27
112G0618
ref: 27
BOLT-UPSET
€ 0.50
28
312B0600
ref: 28
NUT,6MM
€ 0.50
29
34028009
ref: 29
BAR-REAR FOOTREST
€ 24.00
30
92076024
ref: 30
DAMPER,STEP
€ 14.50
31
92022199
ref: 31
WASHER,20X30X2.3
€ 5.00
32
920431464
ref: 32
PIN
€ 5.50
33
550D2015
ref: 33
PIN-COTTER,2.0X15
€ 1.00
