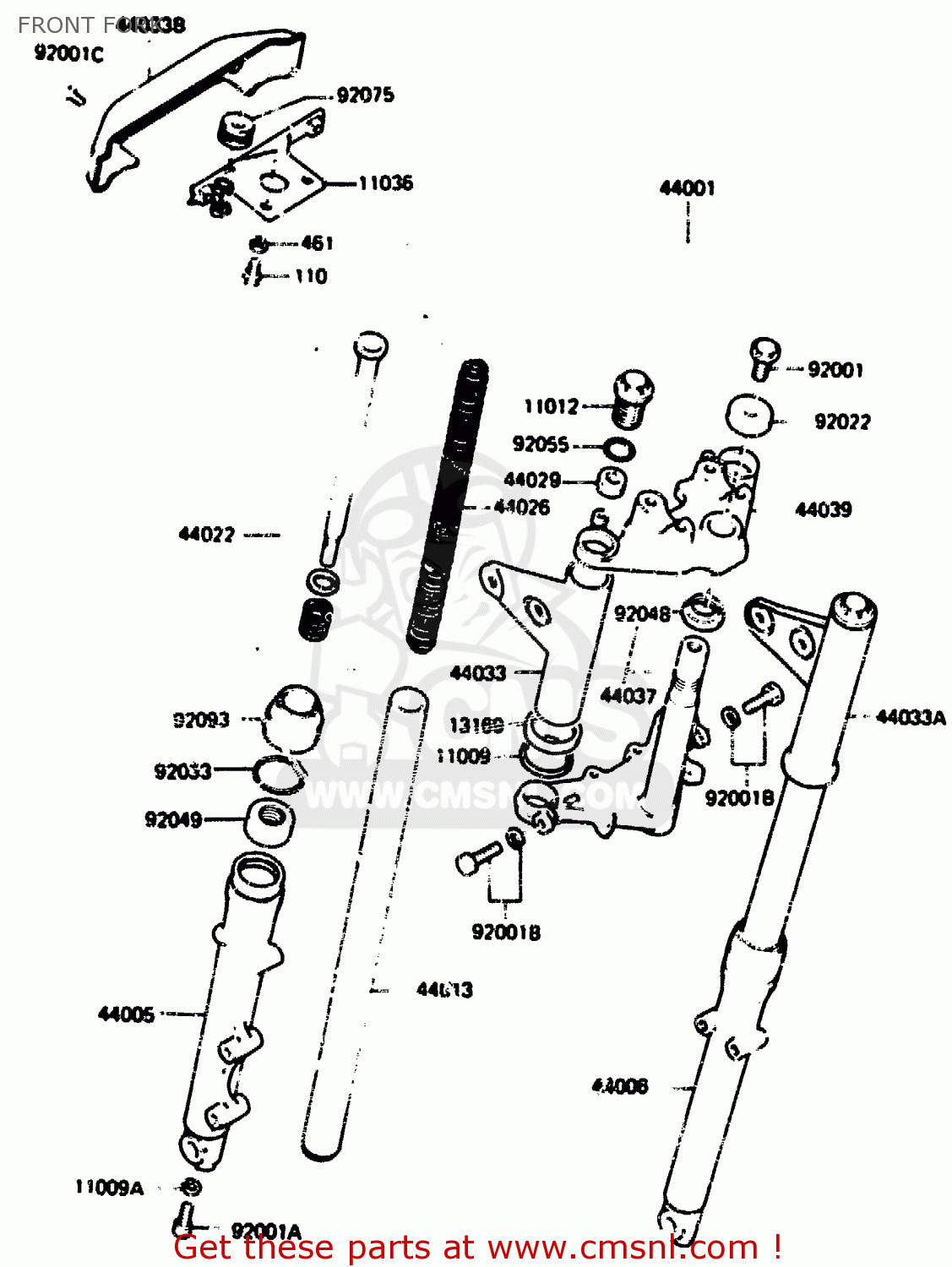

FRONT FORK

ref

part #

description

quantity

11009

44045012
ref: 11009

GASKET,FORK COVER (NAS)

€ 3.00

11009A

44045057
ref: 11009A

GASKET (NAS)

€ 3.00

11012

110121087
ref: 11012

CAP,FORK TOP

€ 21.50

11036

110361506
ref: 11036

BRACKET-A,FORK COVER

€ 16.00

13169

131691191
ref: 13169

PLATE,FORK COVER

€ 4.50

44001

440011465
ref: 44001

FORK-FRONT

€ 1,503.00

44005

440051137
ref: 44005

PIPE-LEFT FORK OUTER

€ 139.50

44006

440061137
ref: 44006

PIPE-RIGHT FORK OUTER

€ 139.50

44013

440131024
ref: 44013

PIPE-FORK INNER

€ 89.50

44022

440221026
ref: 44022

CYLINDER-FORK

€ 46.00

44026

440261158
ref: 44026

SPRING-FRONT FORK,L=4

€ 22.50

44029

440291013
ref: 44029

SEAT-FORK SPRING

€ 8.00

44033

440331069
ref: 44033

COVER-FORK,LH

€ 42.00

44033A

440331070
ref: 44033A

COVER-FORK,RH

€ 44.50

44033B

440331101
ref: 44033B

COVER-FORK

€ 20.50

44037

440371025
ref: 44037

HOLDER-FORK UNDER

€ 143.50

44039

440391021
ref: 44039

HOLDER-FORK UPPER

€ 88.00

92001

44041007
ref: 92001

BOLT-STRNG STEM HEAD

€ 11.50

92001A

44041040
ref: 92001A

BOLT-FORK CYLINDER

€ 4.50

92001B

920011269
ref: 92001B

BOLT,10X36

€ 3.00

92001C

920011323
ref: 92001C

SCREW,OVAL CNTSK,5X18

€ 2.50

92022

44043016
ref: 92022

WASHER,FORK UPPER HOL

€ 7.00

92033

920331038
ref: 92033

RING-SNAP

€ 3.00

92048

92047013
ref: 92048

CONE,STRG STM

€ 12.50

92049

920491049
ref: 92049

SEAL-OIL

€ 14.50

92055

920551062
ref: 92055

RING-O,FORK TOP CAP

€ 3.00

92075

920751086
ref: 92075

DAMPER

€ 3.50

92093

920931028
ref: 92093

SEAL,FORK OUTER

€ 10.00

110

110B0612
ref: 110

BOLT-HEX HEAD,6X12

€ 2.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50
