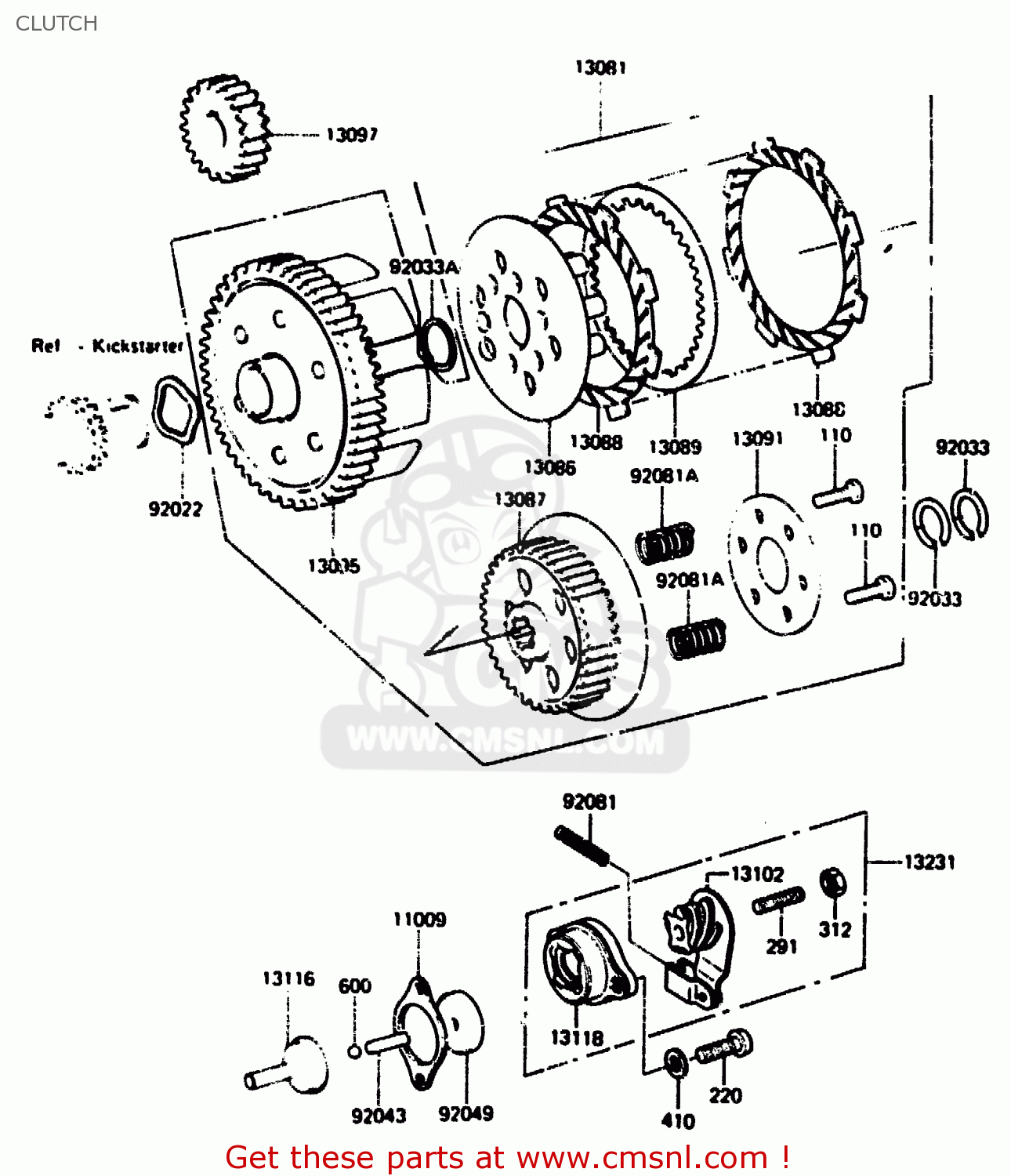

CLUTCH

ref

part #

description

quantity

11009

13246001
ref: 11009

GASKET,CLUTCH RELEASE (MCA)

€ 3.50

13081

130811088
ref: 13081

CLUTCH-ASSY

€ 192.00

13086

130861002
ref: 13086

WHEEL,CLUTCH

€ 33.00

13087

130871020
ref: 13087

HUB-CLUTCH

€ 63.00

13088

130881011
ref: 13088

PLATE-FRICTION (MCA)

€ 11.00

13089

13089005
ref: 13089

PLATE-CLUTCH STEEL (NAS)

€ 8.50

13091

13091003
ref: 13091

HOLDER-CLUTCH SPRING

€ 12.50

13095

130951046
ref: 13095

HOUSING-COMP-CLUTCH

€ 366.00

13097

13121032
ref: 13097

GEAR-PRIMARY SPUR

€ 92.50

13102

131021016
ref: 13102

RELEASE-COMP-CLUTCH,I

€ 30.00

13116

131161028
ref: 13116

ROD-PUSH,CLUTCH

€ 15.00

13118

131181001
ref: 13118

RELEASE-CLUTCH OUTER

€ 16.00

13231

132311008
ref: 13231

RELEASE-ASSY-CLUTCH

€ 55.00

92022

920221213
ref: 92022

WASHER,WAVE,26.4X34.2

€ 2.50

92033

920331060
ref: 92033

RING,SNAP

€ 2.50

92033A

920331065
ref: 92033A

RING-SNAP,23.5MM

€ 2.50

92043

92042043
ref: 92043

PIN,DOWEL,7X20

€ 3.50

92049

92050071
ref: 92049

OIL SEAL

€ 7.00

92081

92081096
ref: 92081

SPRING-CLUTCH RELEASE

€ 3.50

92081A

920811175
ref: 92081A

SPLING,CLUTCH

€ 4.00

110

110G0520A
ref: 110

BOLT,5X20

€ 2.50

220

220B0616
ref: 220

SCREW-PAN HEAD,6X16

€ 2.50

291

291H0616
ref: 291

SCREW,SLOTTED,6X16

€ 4.00

312

312B0600
ref: 312

NUT,6MM

€ 0.50

410

410B0600
ref: 410

WASHER-PLAIN-SMALL,6M

€ 0.50

600

600A0900
ref: 600

BALL-STEEL,9/32

€ 2.50
