ELECTRICAL EQUIPMENT
KH125L1 1983 USA

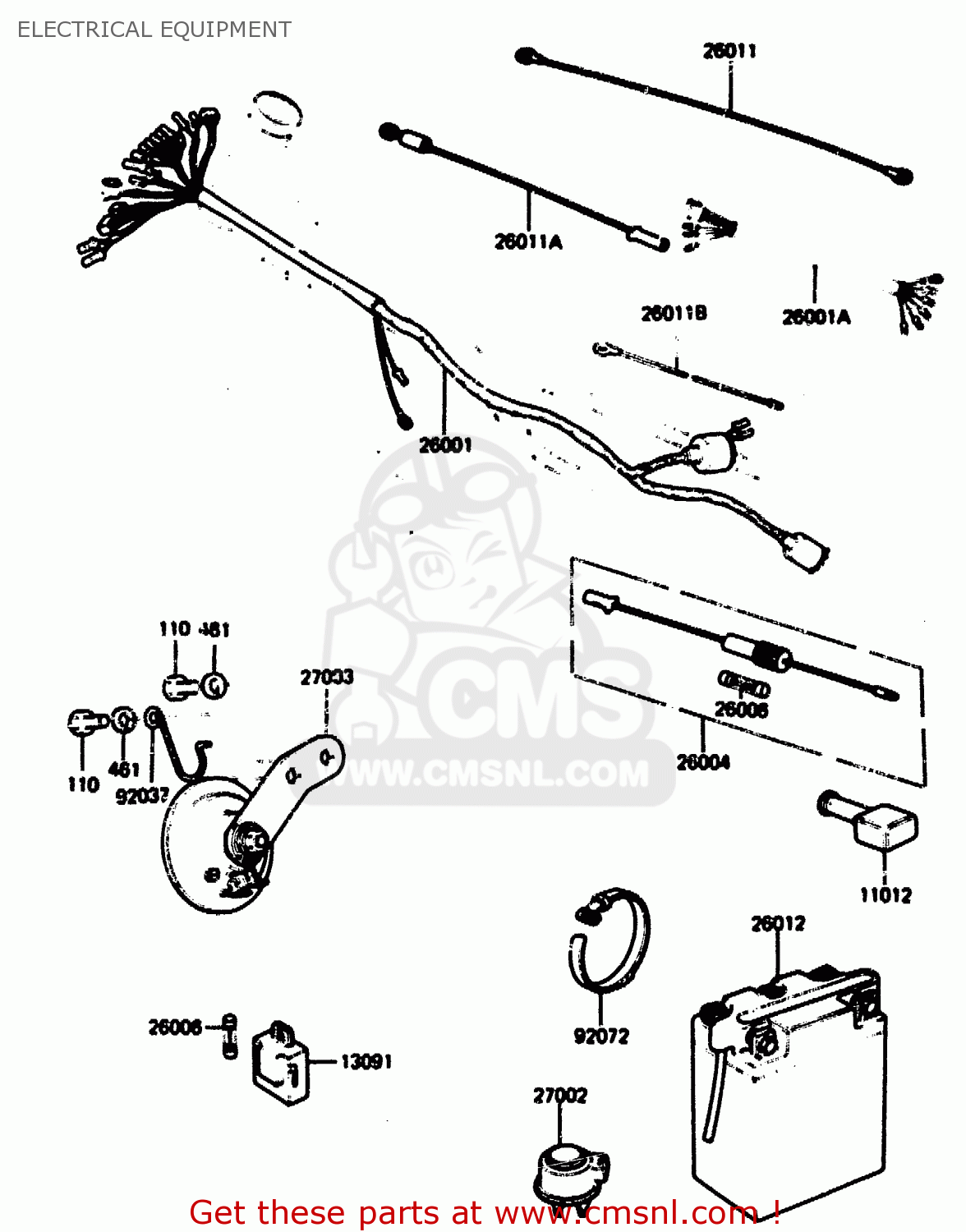

Electrical equipment diagram KH125L1 1983 USA
ELECTRICAL EQUIPMENT KH125L1 1983 USA
×
prices are in EUR
ref
part #
description
quantity
11012
92073019
ref: 11012
CAP,BATTERY
€ 4.50
13091
26016004
ref: 13091
HOLDER,SPARE FUSE
€ 7.50
26001
260011392
ref: 26001
HARNESS,MAIN
€ 101.50
26001A
260011428
ref: 26001A
HARNESS,RR
€ 14.00
26004
26004017
ref: 26004
FUSE-ASSY
€ 10.00
26006
26006003
ref: 26006
FUSE 10A
€ 3.00
26011
26010023
ref: 26011
WIRE-LEAD,GROUND
€ 10.00
26011A
26010031
ref: 26011A
WIRE-LEAD,BATTERY
€ 7.50
26011B
26011063
ref: 26011B
WIRE-LEAD,L=185
€ 5.00
26012
260121034
ref: 26012
BATTERY,6V 6AH
€ 58.00
27002
27002019
ref: 27002
RELAY-ASSY,TURN SIGNA
€ 24.00
27003
270031074
ref: 27003
HORN
€ 39.00
92037
920371371
ref: 92037
CLAMP,HARNESS
€ 3.50
92072
92072030
ref: 92072
BAND,SHORT
€ 3.00
110
110B0614
ref: 110
BOLT-HEX HEAD,6X14
€ 2.50
461
461E0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
