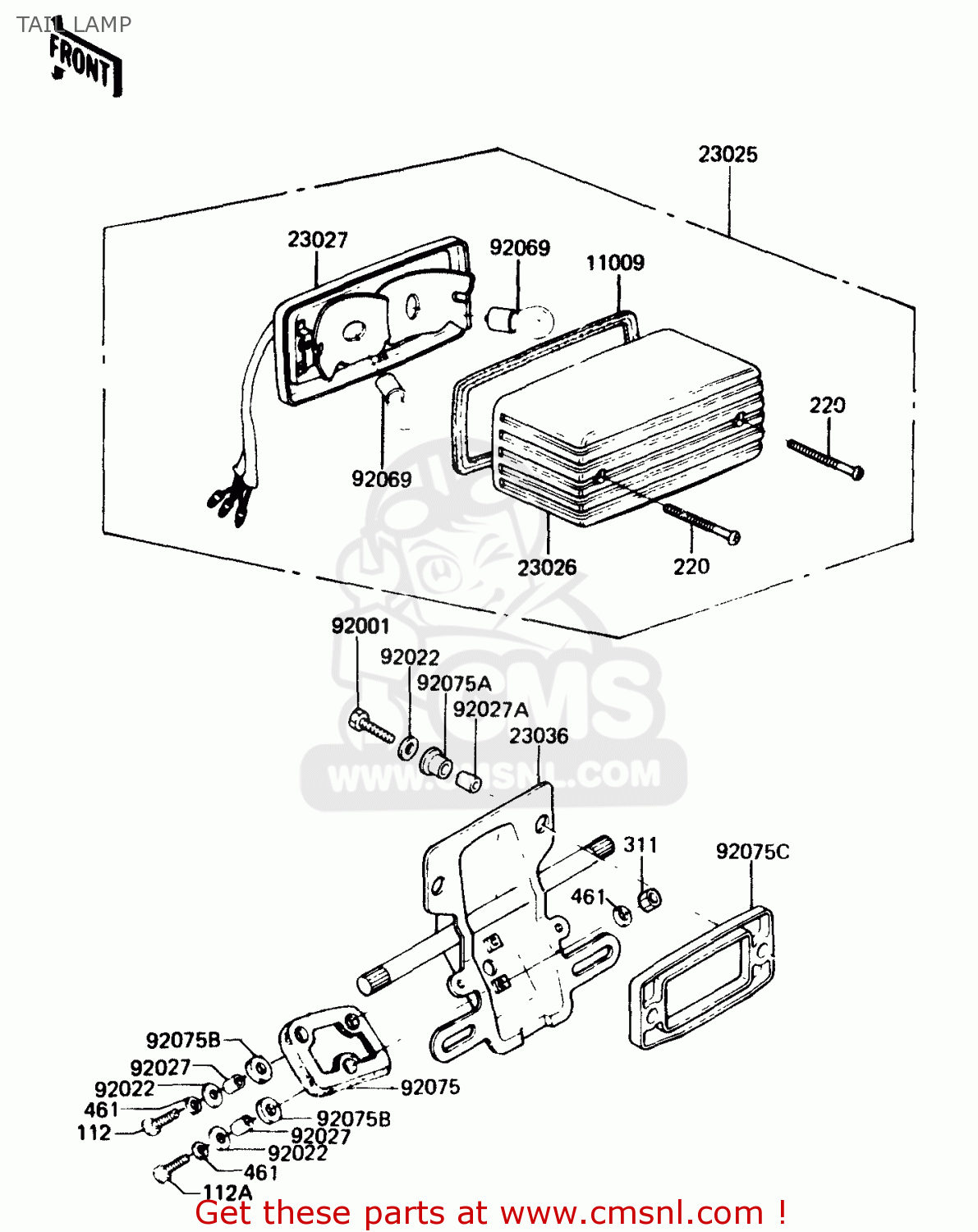

TAIL LAMP

ref

part #

description

quantity

11009

110091221
ref: 11009

GASKET,TAIL LAMP (NAS)

€ 8.50

23025

230251045
ref: 23025

LAMP-TAIL

€ 151.50

23026

230261017
ref: 23026

LENS,TAIL LAMP

€ 126.00

23027

230271014
ref: 23027

BODY-COMP-TAIL LAMP

€ 92.50

23036

230361050
ref: 23036

BRACKET-TAIL LAMP

€ 160.50

92001

92132001
ref: 92001

BOLT

€ 2.00

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92027

92027156
ref: 92027

COLLAR-BATTERY CASE

€ 3.00

92027A

92027169
ref: 92027A

COLLAR,6.8X10X16

€ 4.00

92069

92069062
ref: 92069

BULB,6V 21/5W

€ 12.50

92075

35039004
ref: 92075

DAMPER,TAIL LAMP

€ 12.00

92075A

920751092
ref: 92075A

DAMPER

€ 7.50

92075B

92075121
ref: 92075B

DAMPER,FENDER

€ 2.50

92075C

920751282
ref: 92075C

DAMPER,TAIL LAMP

€ 13.00

112

112B0625
ref: 112

BOLT-UPSET,6X25

€ 4.00

112A

112B0630
ref: 112A

AOLT-HEX,HEAD,6X30

€ 1.00

220

220C0465
ref: 220

SCREW-PAN-CROS

€ 2.50

311

311B0600
ref: 311

NUT,6MM

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50
