Genuine KH Kawasaki Parts delivered quickly!


FENDER

KH125K4 1985 USA

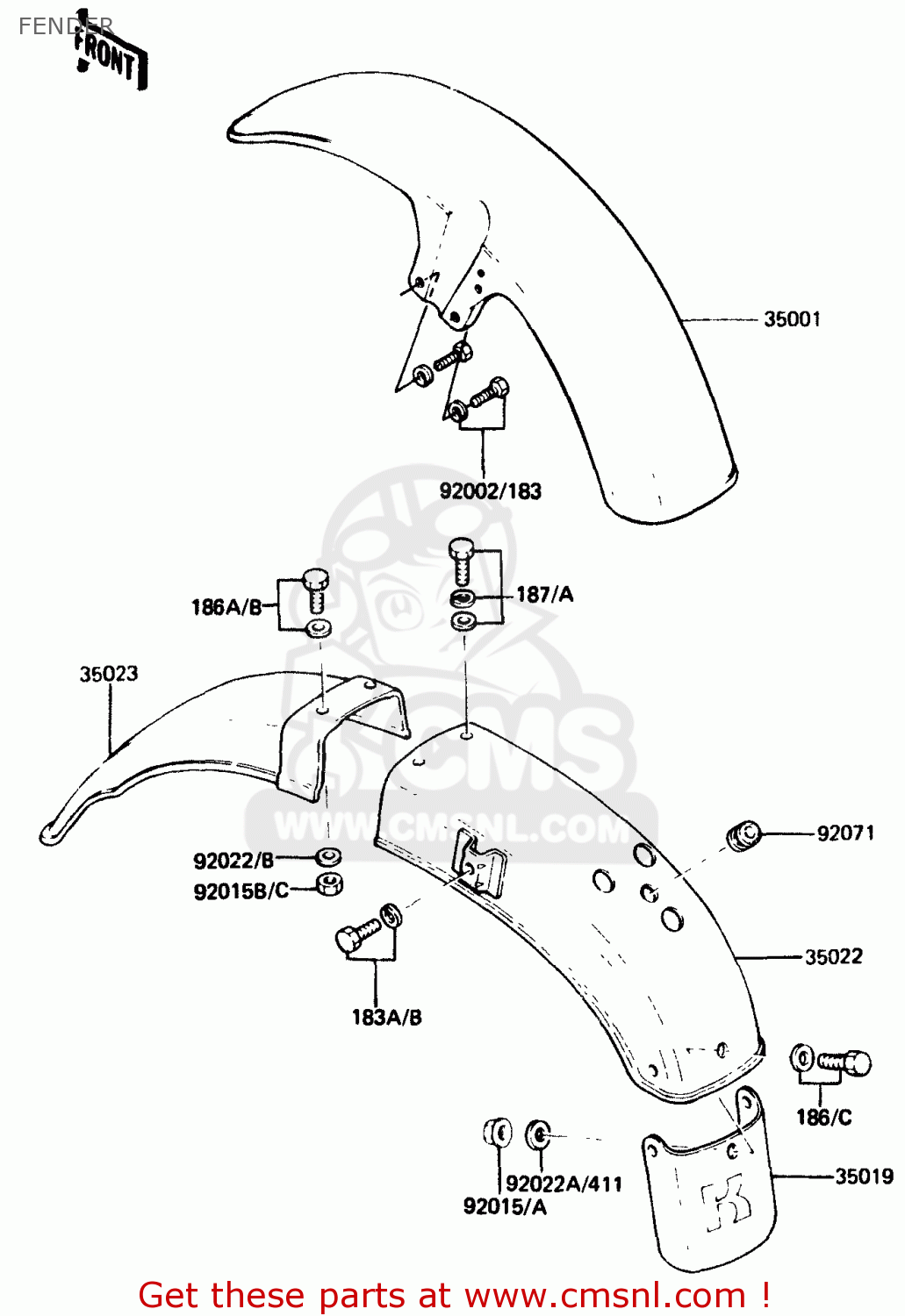

Fender diagram KH125K4 1985 USA

FENDER KH125K4 1985 USA
FENDER KH125K4 1985 USA
FENDER KH125K4 1985 USA
prices are in EUR
ref
part #
description
quantity
35001
350011032
ref: 35001
FENDER-ASSY-FRONT
€ 98.00
35019
35019007
ref: 35019
FLAP,FENDER
35019007
€ 9.00
35022
350221104
ref: 35022
FENDER-COMP-REAR
€ 122.50
35023
350231001
ref: 35023
FENDER, REAR
350231001
€ 42.50
92002
920021200
ref: 92002
BOLT,FLANGED,8X16
920021200
€ 3.00
92015A
920151386
ref: 92015A
NUT,6MM
920151386
€ 3.00
92015B
920151393
ref: 92015B
NUT,LOCK,6MM
€ 4.00
92022A
920221544
ref: 92022A
WASHER,6.5X13X1
€ 2.50
92022B
920221565
ref: 92022B
WASHER,6.5X16X2
920221565
€ 2.50
92071
92071099
ref: 92071
GROMMET, REAR FENDER
92071099
€ 3.00
183B
183C0825
ref: 183B
BOLT-UPSET-WS-SMALL
€ 3.00
186B
186D0616
ref: 186B
BOLT-UPSET-WP
€ 2.50
186C
186X0614
ref: 186C
BOLT-UPSET-WP
186X0614
€ 2.00
187A
187D0614
ref: 187A
BOLT-UPSET-WSP
€ 0.50
