MUFFLER
KH125K4 1985 USA

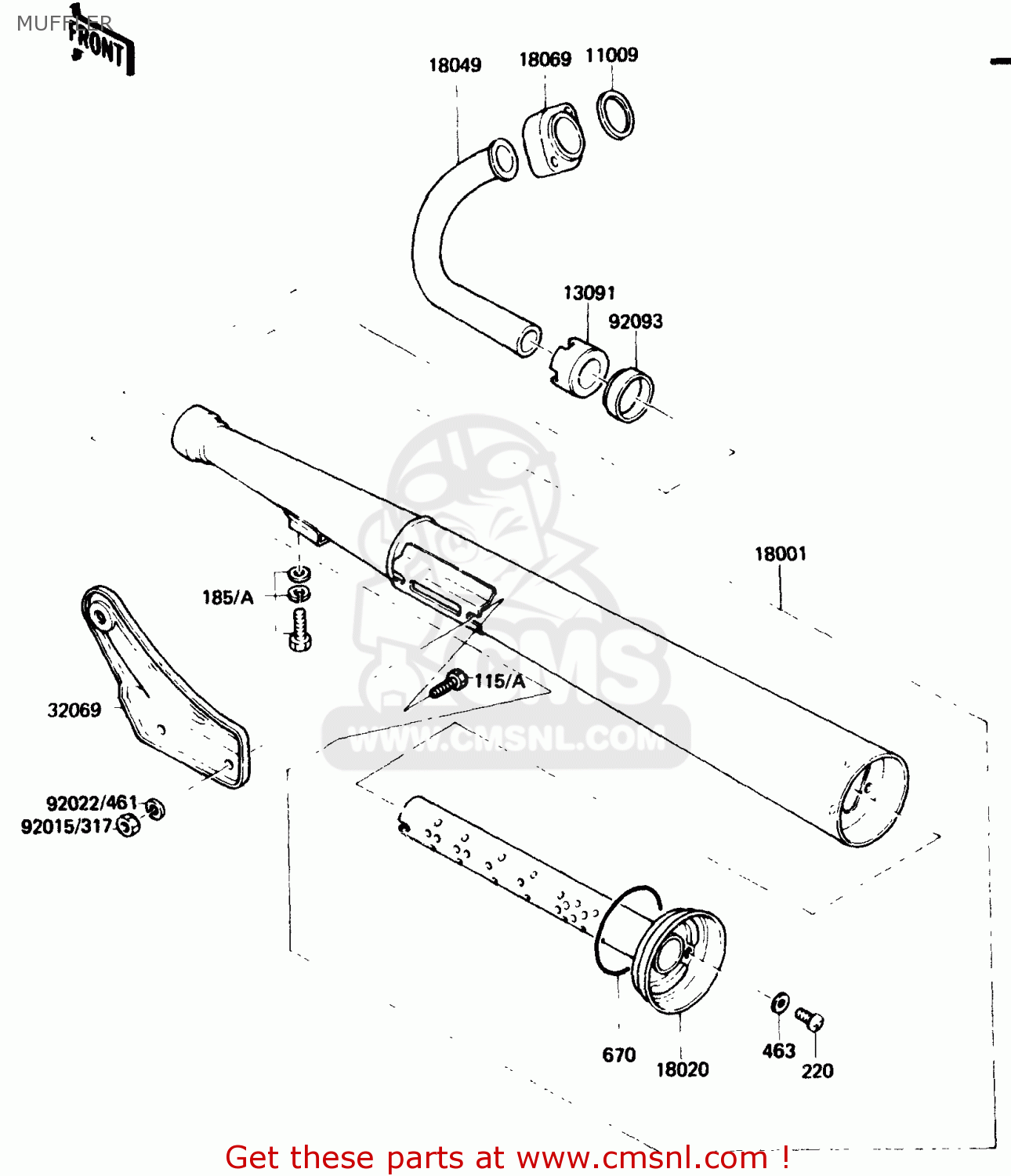

Muffler diagram KH125K4 1985 USA
MUFFLER KH125K4 1985 USA
×
prices are in EUR
ref
part #
description
quantity
11009
110091199
ref: 11009
GASKET,EXHAUST PIPE (MCA)
€ 5.50
13091
130911001
ref: 13091
HOLDER,MUFFLER CONNEC
€ 15.00
18001
180011331
ref: 18001
MUFFLER
€ 191.00
18020
180201054
ref: 18020
BAFFLE
€ 50.00
18049
180491206
ref: 18049
PIPE-EXHAUST
€ 47.50
18069
180691011
ref: 18069
HOLDER-EXHAUST PIPE
€ 13.50
32069
320691001
ref: 32069
BRACKET-MUFFLER
€ 23.50
92015
920151436
ref: 92015
NUT,8MM
€ 2.00
92022
920221559
ref: 92022
WASHER,SPRING,8MM
€ 0.50
92093
18043012
ref: 92093
SEAL,MUFFLER
€ 10.00
115A
115X0816
ref: 115A
BOLT-SMALL-UPSET,8X16
€ 2.00
185A
185X0816
ref: 185A
BOLT-UPSET-WSP-SMALL
€ 2.50
220
220C0614
ref: 220
SCREW-PAN-CROS,6X14,B
€ 1.50
463
463H0600
ref: 463
WASHER-LOCK,6MM
€ 0.50
670
670B5075
ref: 670
O RING,75MM
€ 3.00
